BURNDY

BURNDY

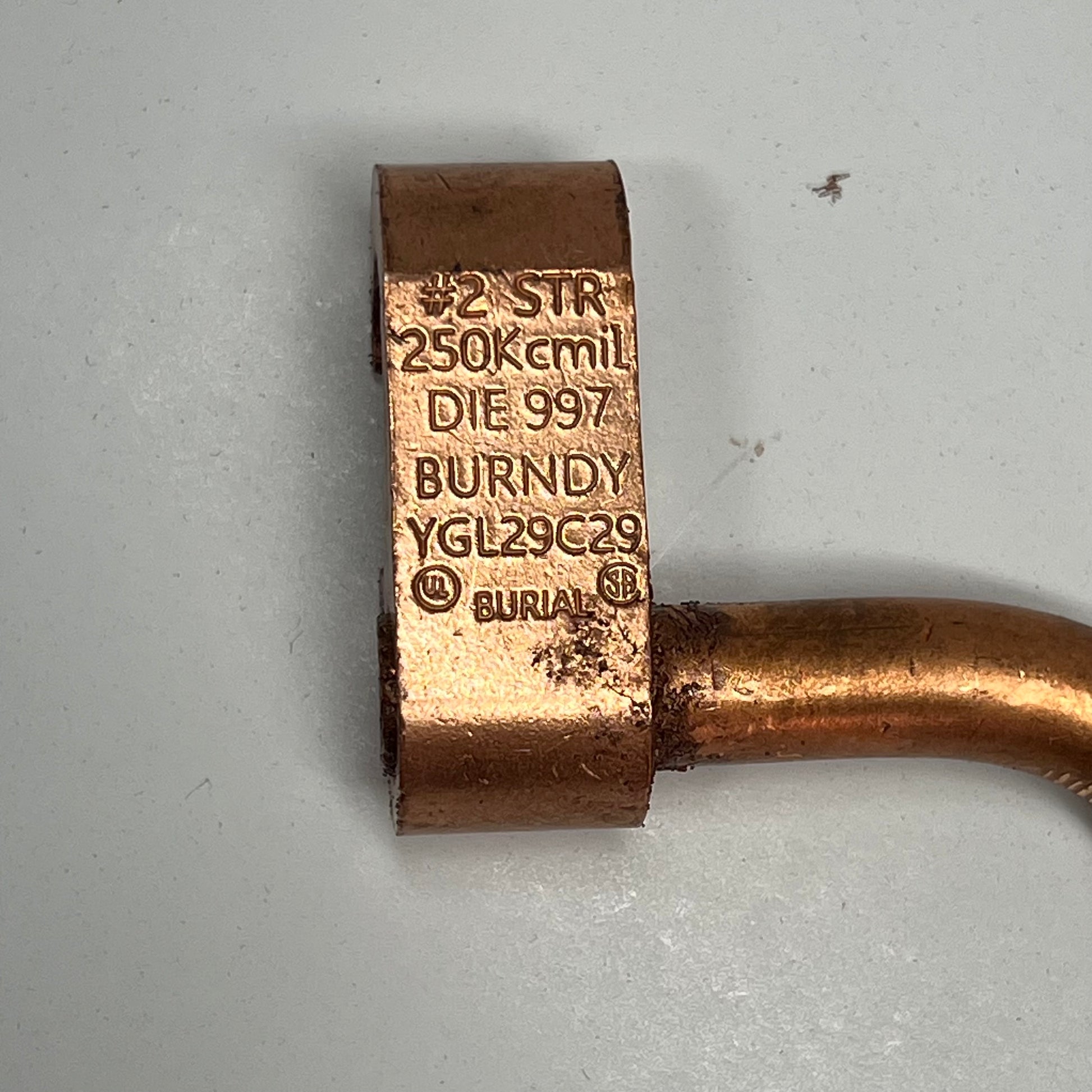

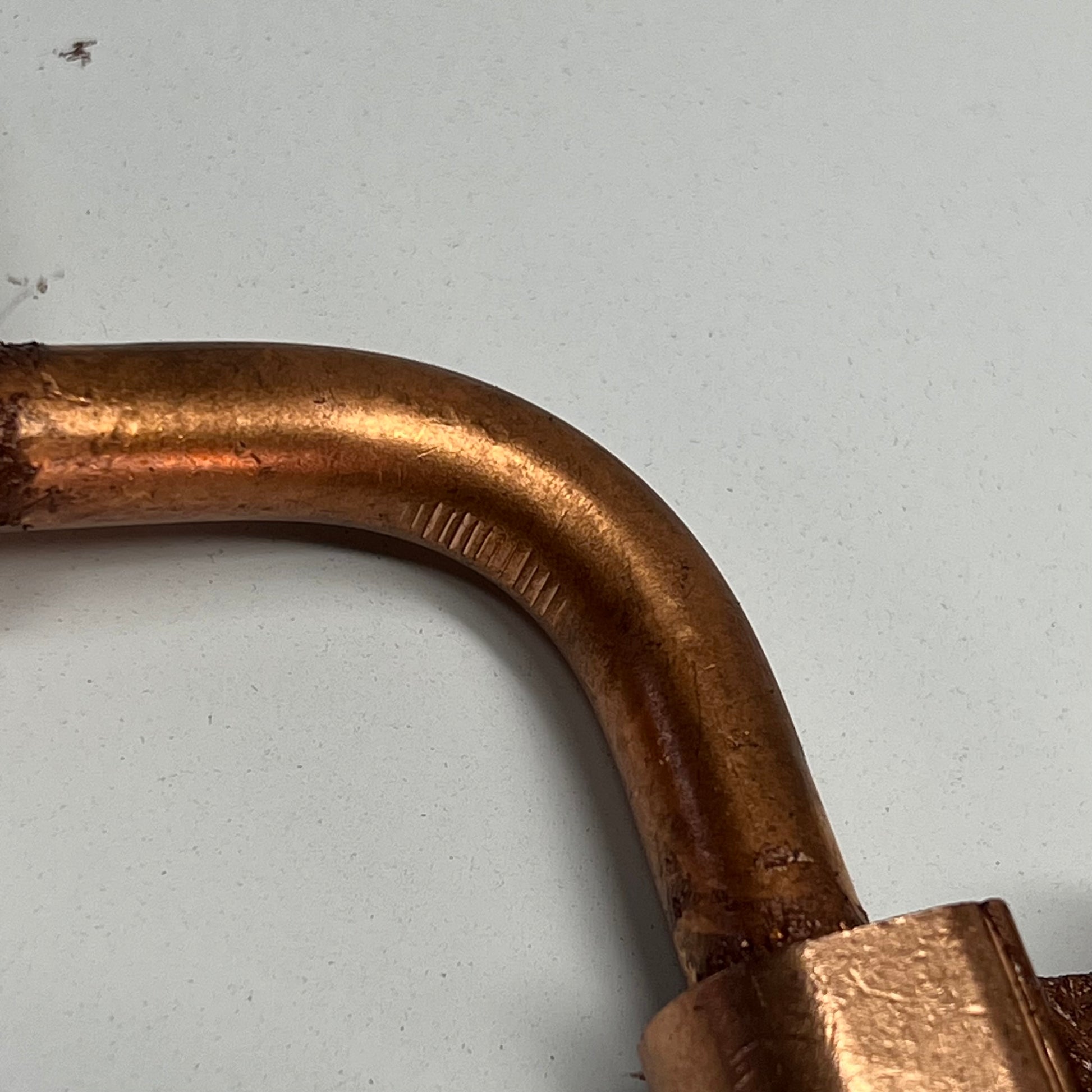

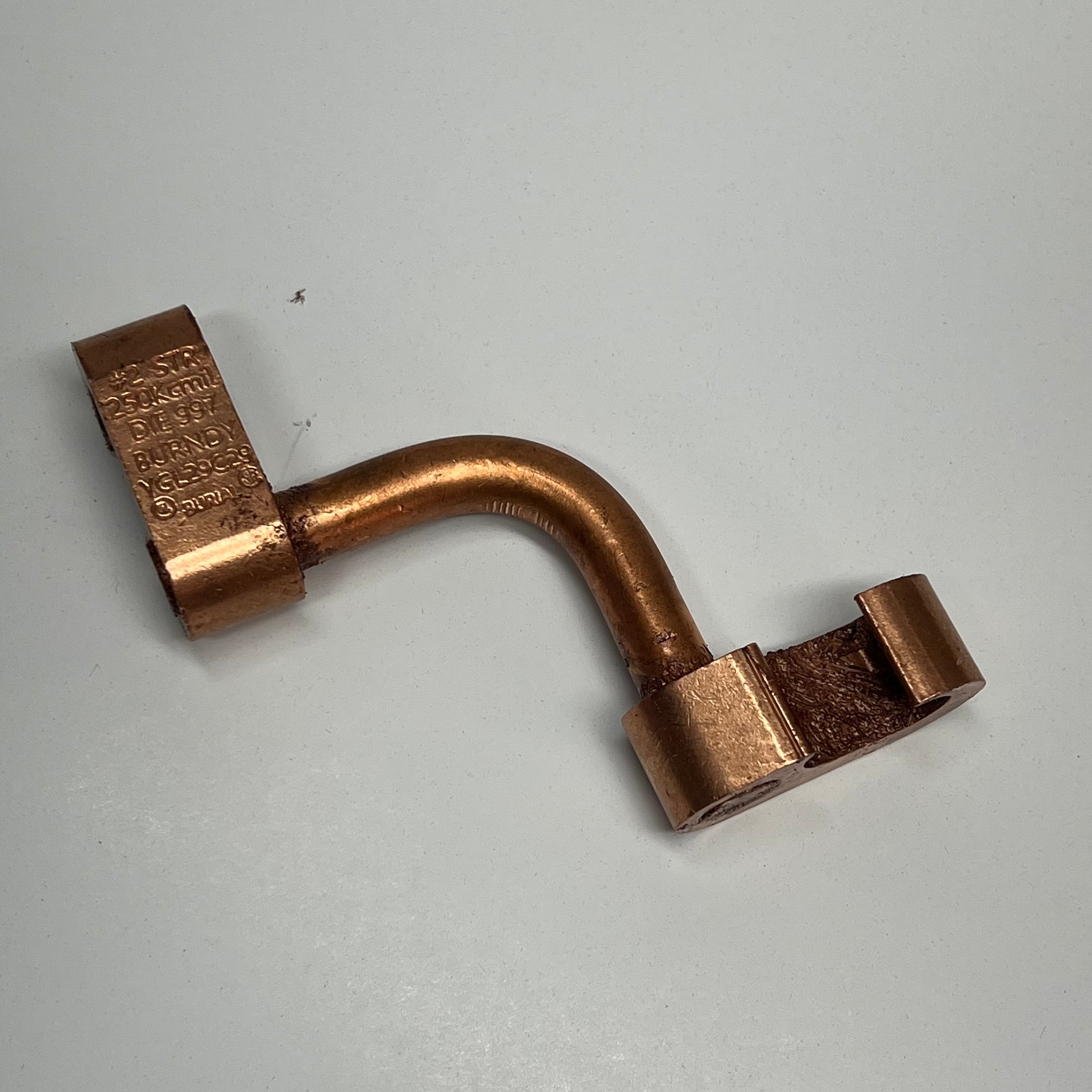

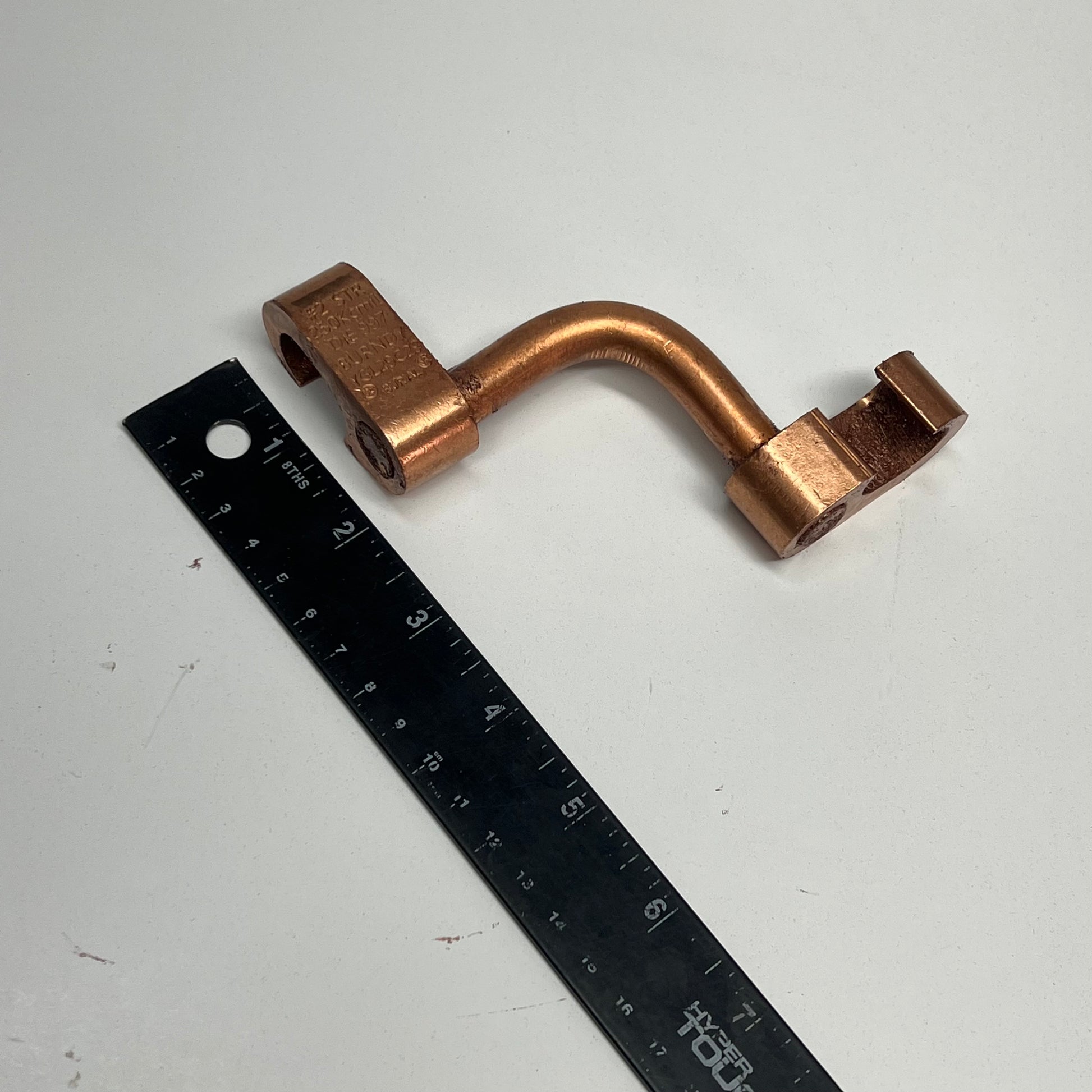

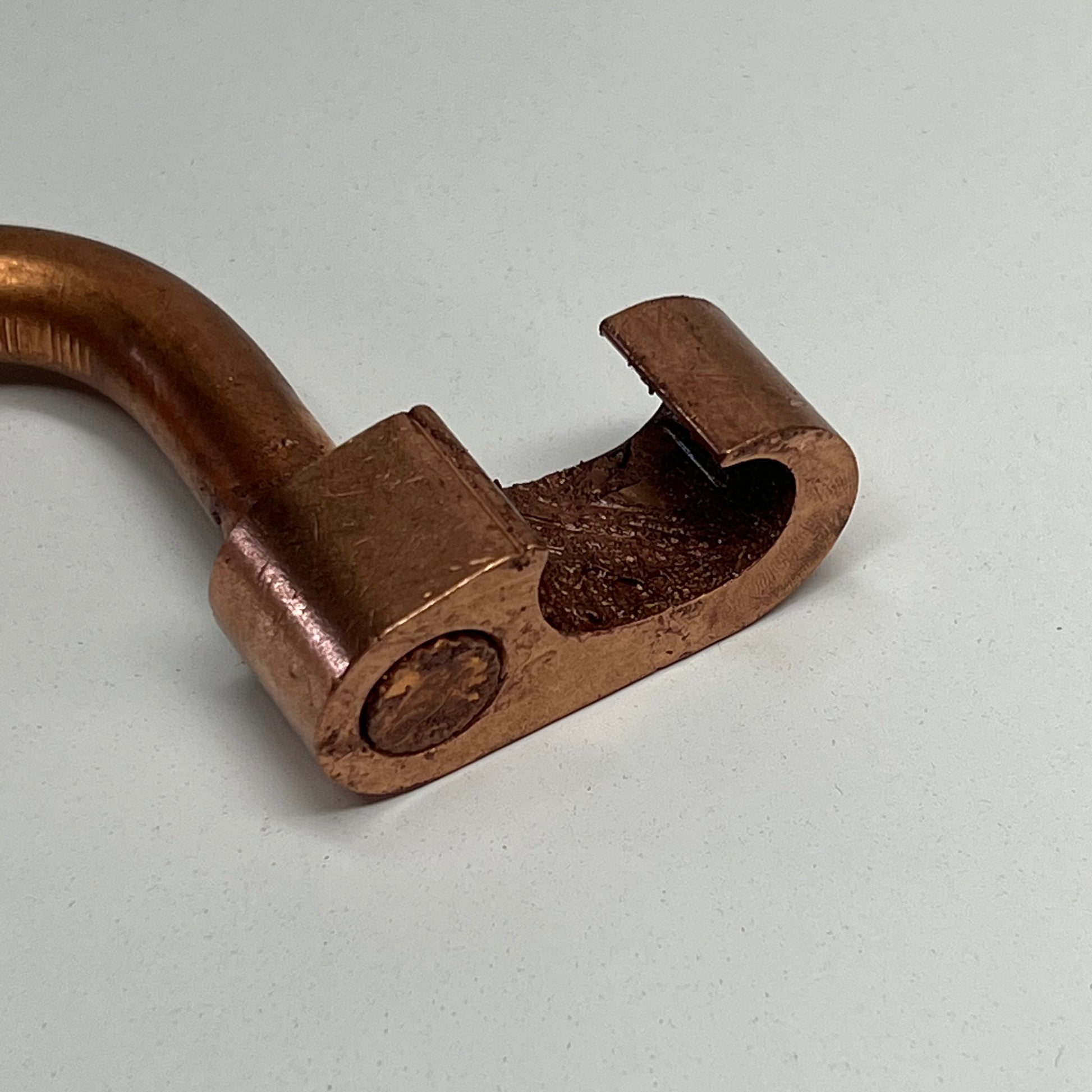

Compression Cross Grid Connector Copper Groundlink

Condition: New

Color: Copper

MPN/Model: 279020 YGL29C29

Description:

• Copper Compression Cross Grid Connector, 2 AWG (Str)-250 kcmil or 1/2"-5/8" Rod or #3-4 Rebar, 2 AWG (Str)-250 kcmil.
• Features: An Irreversible Compression Ground Grid Cross Connector Which Allows Adjustment Of The Compression Elements Prior To Installation, Only Six Connectors And Four Dies Are Required To Install All Combinations From 6 AWG Solid Through 500 KCMIL, UL467 Listed Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Dimensions In Brackets Represent Lightning Protection Conductors, Die Index: 997 Element A, 997 Element B, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y750/Y35/Y39 HYPRESS Tool, U997 Die, (1), PAT750-18V Tool, U997P Polarized Die, (1), Y45 HYPRESS Tool, U997 Die, (1), Y46 HYPRESS Tool, U997 Die, (1), Element B: Y750/Y35/Y39 HYPRESS Tool, U997 Die, (1), PAT750-18V Tool, U997P Polarized Die, (1), Y45 HYPRESS Tool, U997 Die, (1), Y46 HYPRESS Tool, U997 Die, (1), Rebar Size: #3 - #4, Ground Rod Size: 1/2 - 5/8 IN, Cable To Cable : Element A: 2 AWG Solid (0.292) - 250 KCMIL Stranded (0.575), Element B: 2 AWG Stranded (0.292) 250 KCMIL (0.575), Cable To Ground Rod: Element A: 1/2 - 5/8 IN Rod, Element B: 2 AWG Stranded (0.292) 250 KCMIL (0.575), Cable To Rebar: Element A: #3 - #4 Rebar

Condition: New

Color: Copper

MPN: 279020 YGL29C29

Barcode: 279020

PayWut SKU: CW09113
