ESP

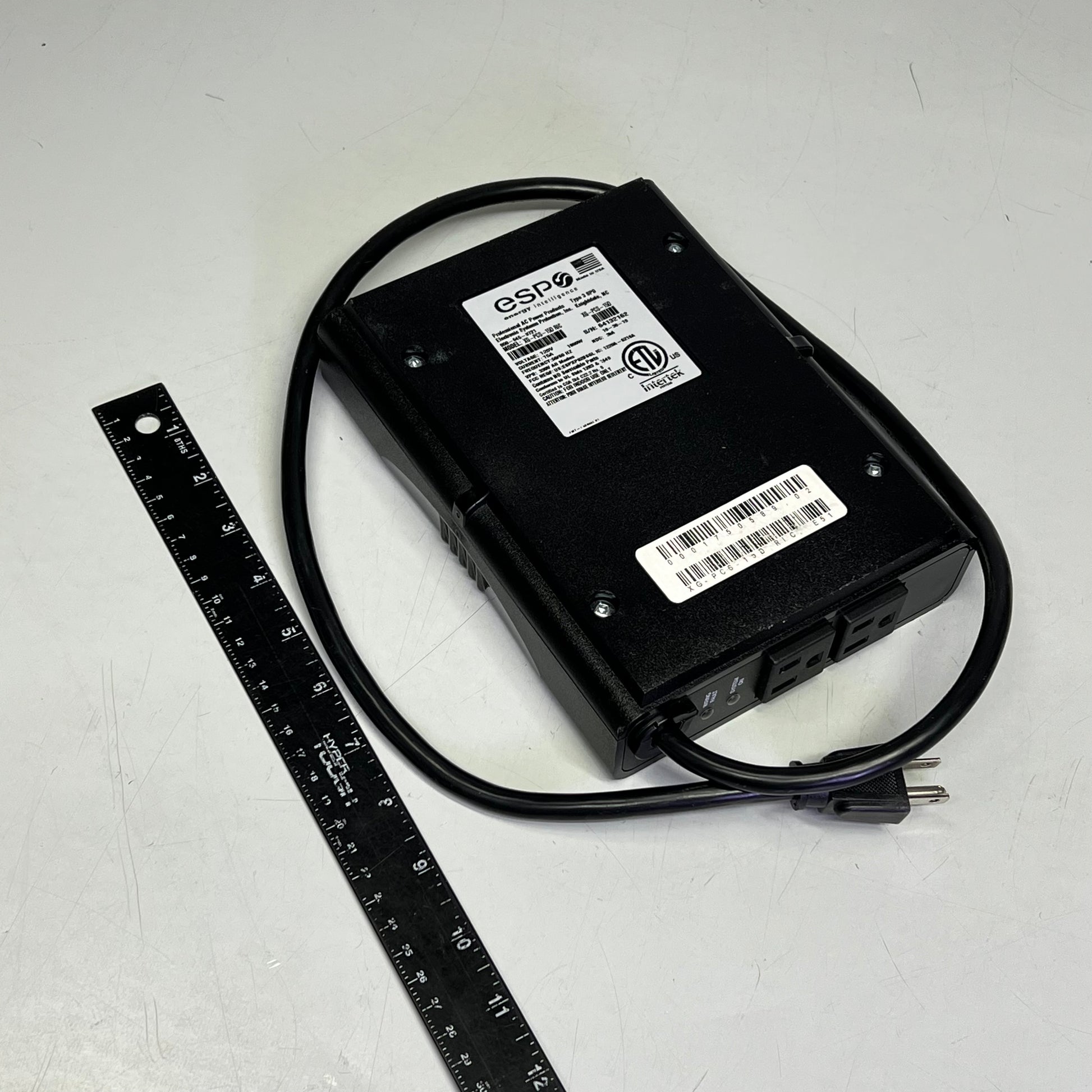

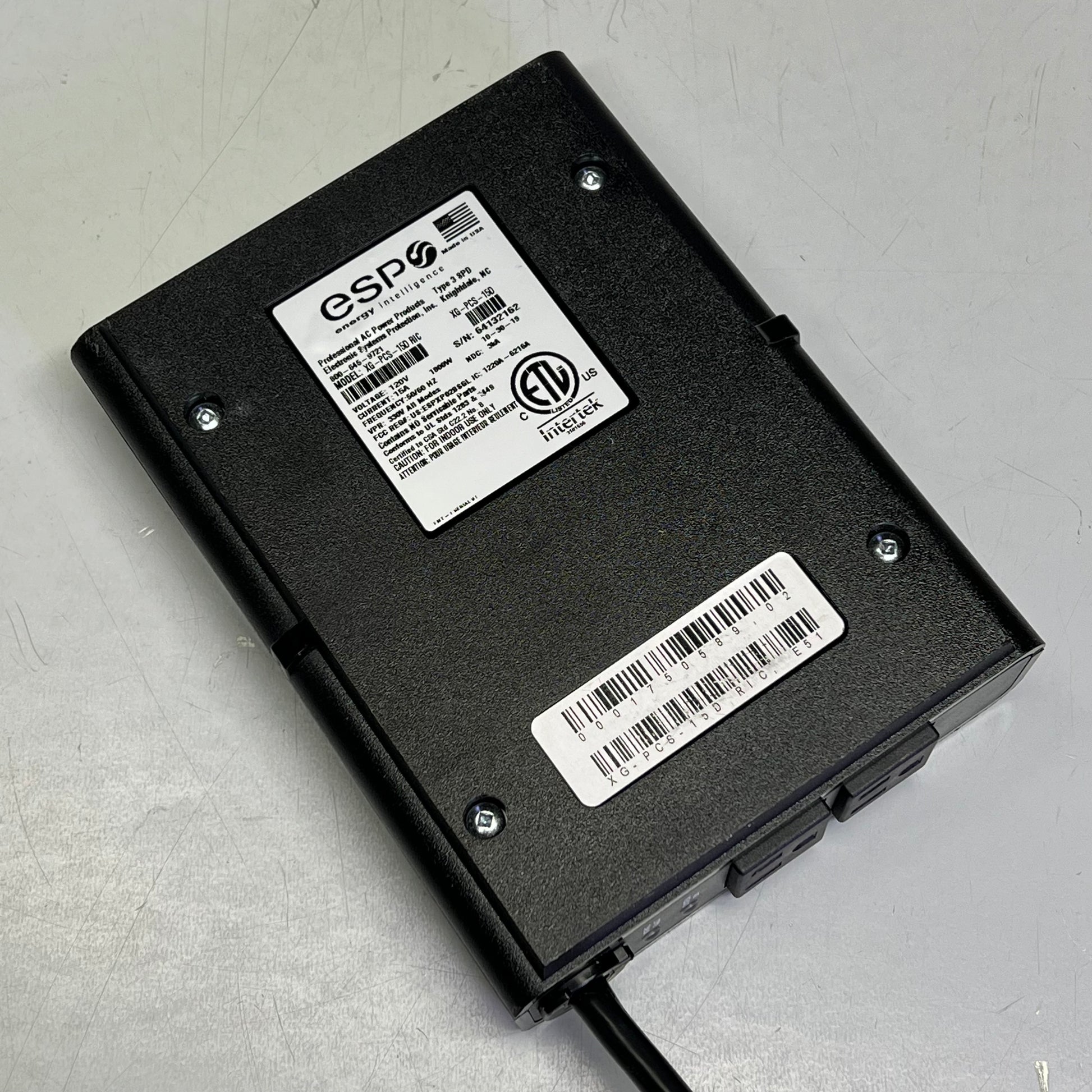

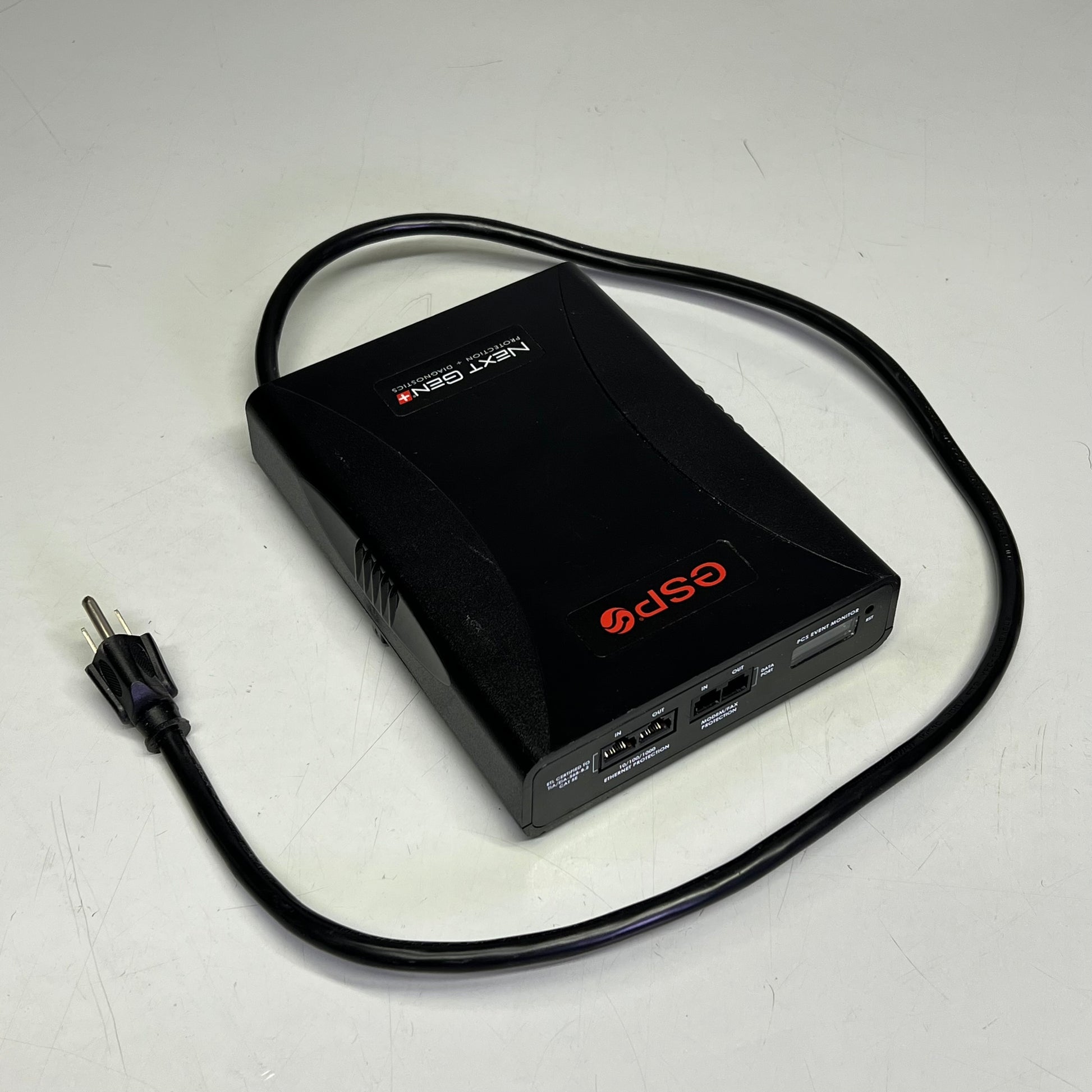

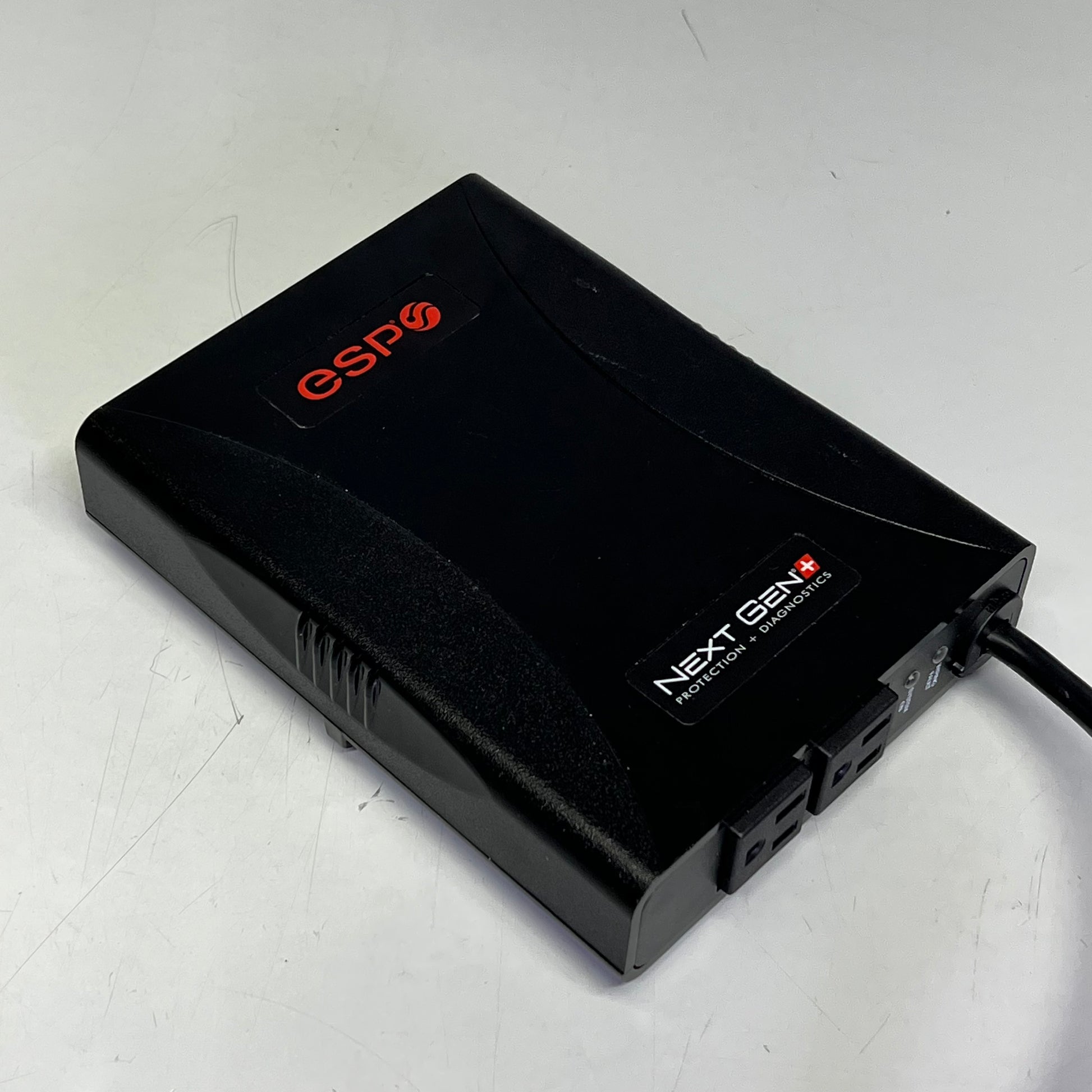

ESP Next Gen Diagnostic Power Filter Network 120V/15A Black XG-PCS-15D

Name: ESP Next Gen Diagnostic Power Filter Network 120V/15A Black XG-PCS-15D
Brand: ESP
SKU: CWY549
Price: 119.00 USD
Availability: InStock

$119 USD

~~$180 USD~~ $119 USD

Sale Sold out

Item standard shipping: $11
Shipping calculated at checkout.

1 Remaining

ESP

Next Gen Diagnostic Power Filter Network

Condition: New - Not In Original Packaging

Size: 120V/15A

Color: Black

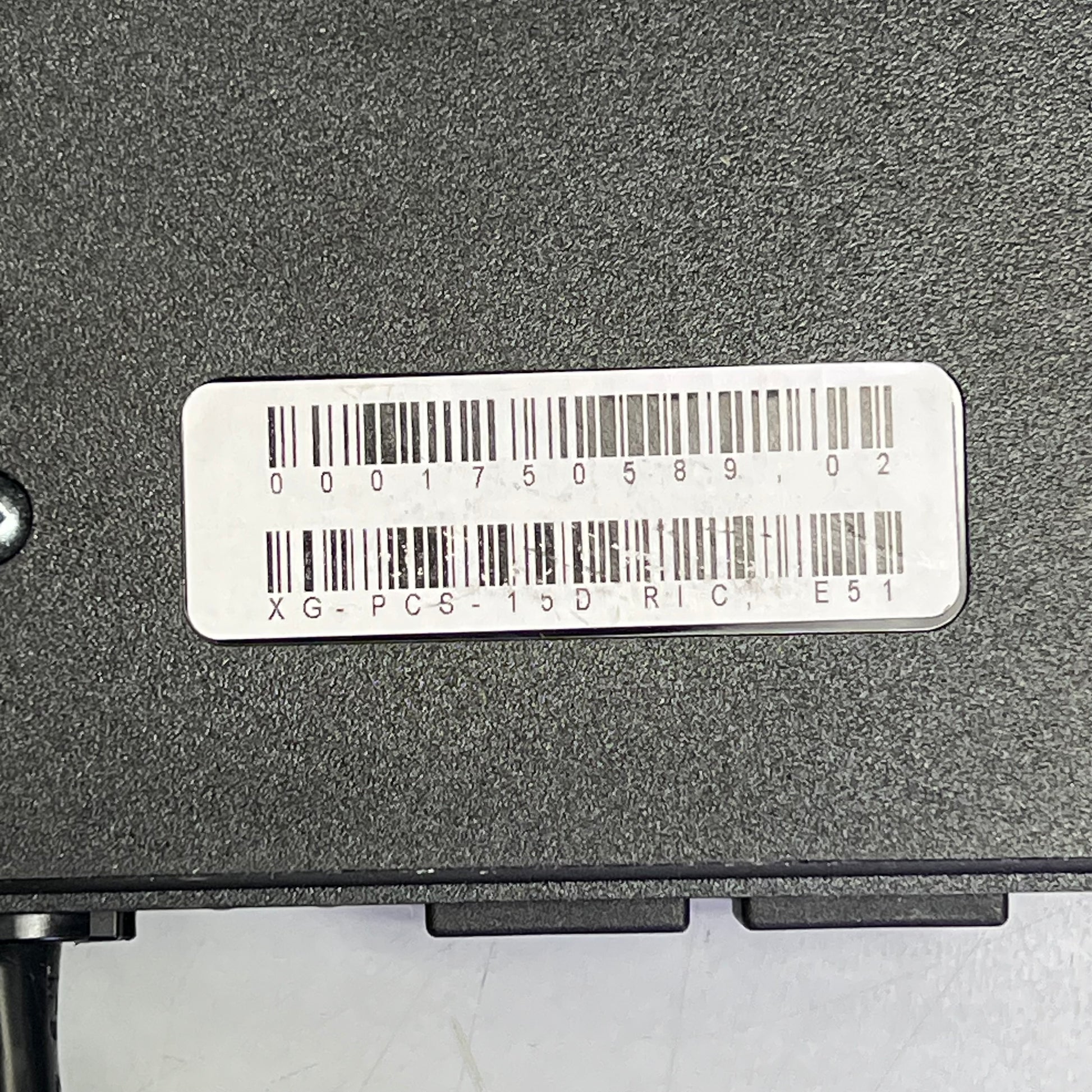

MPN/Model: XG-PCS-15D

Description:

Next Gen's Multi-Stage technology provides the most advanced protection available to safeguard equipment from harmful surges, spikes, over/under voltage, inrush current, and electrical noise that can cause equipment error codes, malfunction and downtime.

Its analytical software monitors, gathers, and analyzes electrical data and enables customized settings, allowing service teams complete control of the power situation at their installs. Data is interpreted into key metrics and trends that are available via downloadable reports. The software also identifies the potential cause of a problem and translates that data into recommendations on how to resolve the issue.

The Next Gen is the perfect combination of power and over voltage protection, monitoring, and analytics to increase equipment uptime and business efficiency.

Features:
- Measures neutral to ground voltage and line frequency metrics

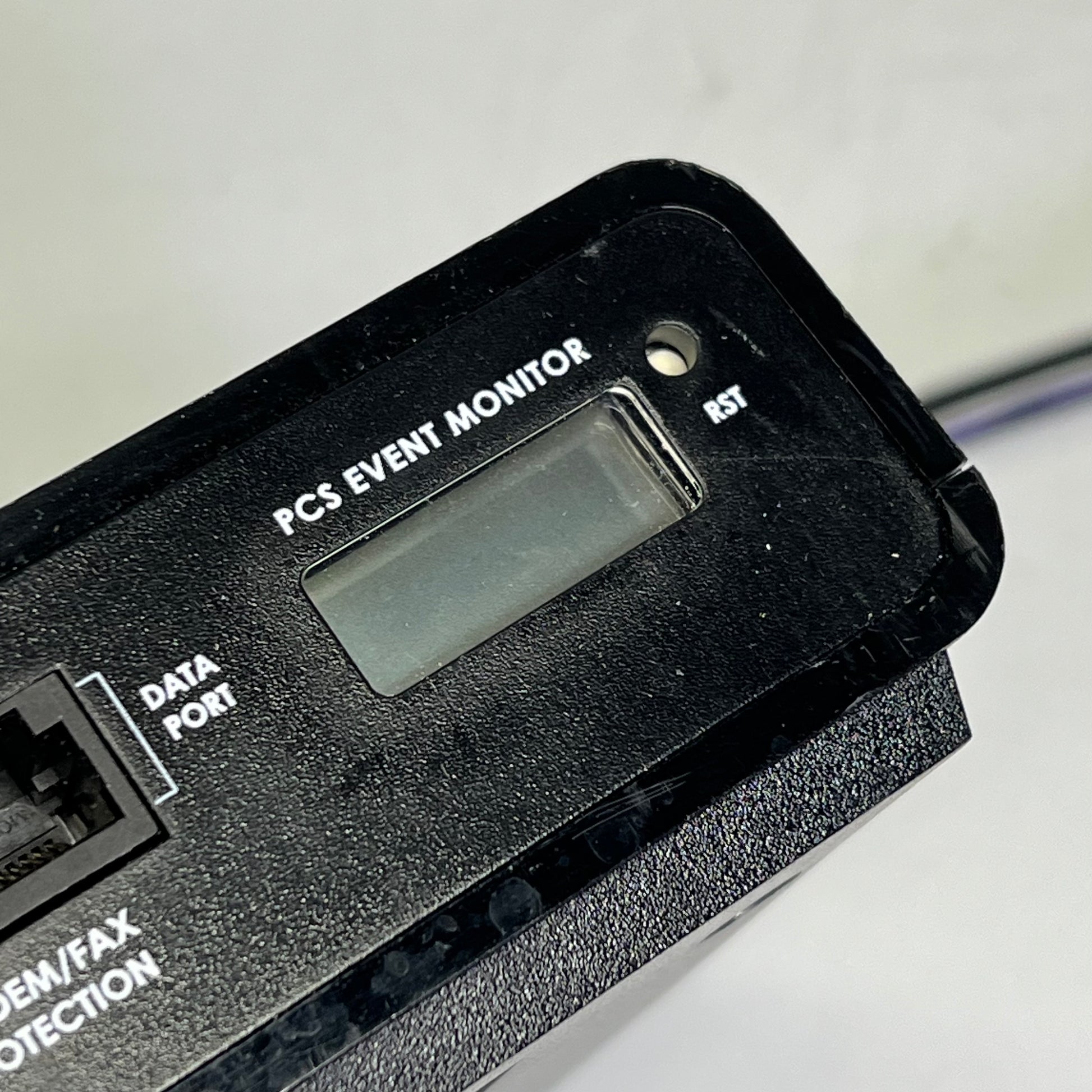

- 60 time stamped events
- Downloadable reports
- Customizable settings
- Multi-Stage power protection and conditioning technology
- Catastrophic over/under voltage shutdown
- Inrush current elimination
- Remote access capable with optional Remote Portal module
Specifications:
- Electrical
- Load Rating: 15/20 Amps at 120 Volts
- Voltage Protection Rating (VPR): 330V All Modes
- Attenuation:
  - Normal Mode: >30dB 80kHz - 50MHz
  - Common Mode: >30dB 70kHz - 50MHz (XG-PCS-15D / XG-PCS-20D), >30dB 200kHz - 50MHz (XG-PCS-20815D / XG-PCS-20820D)
- Power Requirement (no load): 4 Watts
- Under-Voltage Shutdown: Adjustable from 80 Volts to 95 Volts, or Disabled.
  - Restores at 105 Volts. Adjustable from 140 Volts to 170 Volts, or Disabled.
- Over-Voltage Shutdown: Adjustable from 135 Volts to 160 Volts.
  - Restores at 130 Volts. Adjustable from 260 Volts to 300 Volts.
- Internal Memory Capacity: 60 Events with timestamp; 999 counts of each event typeTimestamp accuracy: Ý2.5%
- Response Time: 100msec Over-Voltage / 150msec Under-Voltage
- Under-Voltage Record Event Definition: AC voltage has dropped below: 100V
- Over-Voltage Record Event Definition: AC voltage has risen above: 135V
- Power Outage Event Definition: AC voltage has dropped below 20V.
- Surge Event Definition: Next Gen PCS Filter has been exposed to a transient voltage in one of the 3 possible modes (between Live and Neutral, between Live and Ground, between Neutral and Ground) with a peak amplitude of 500V

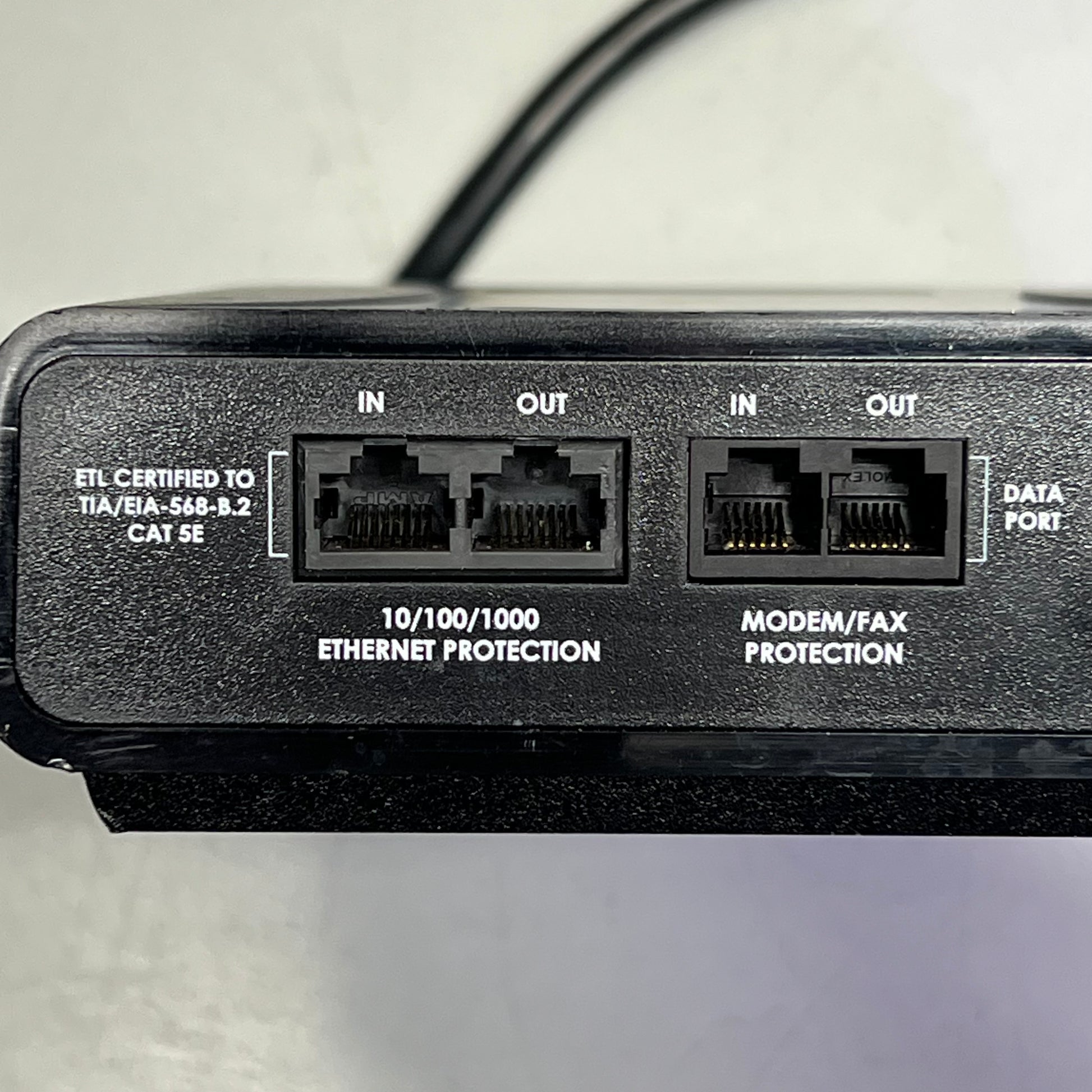

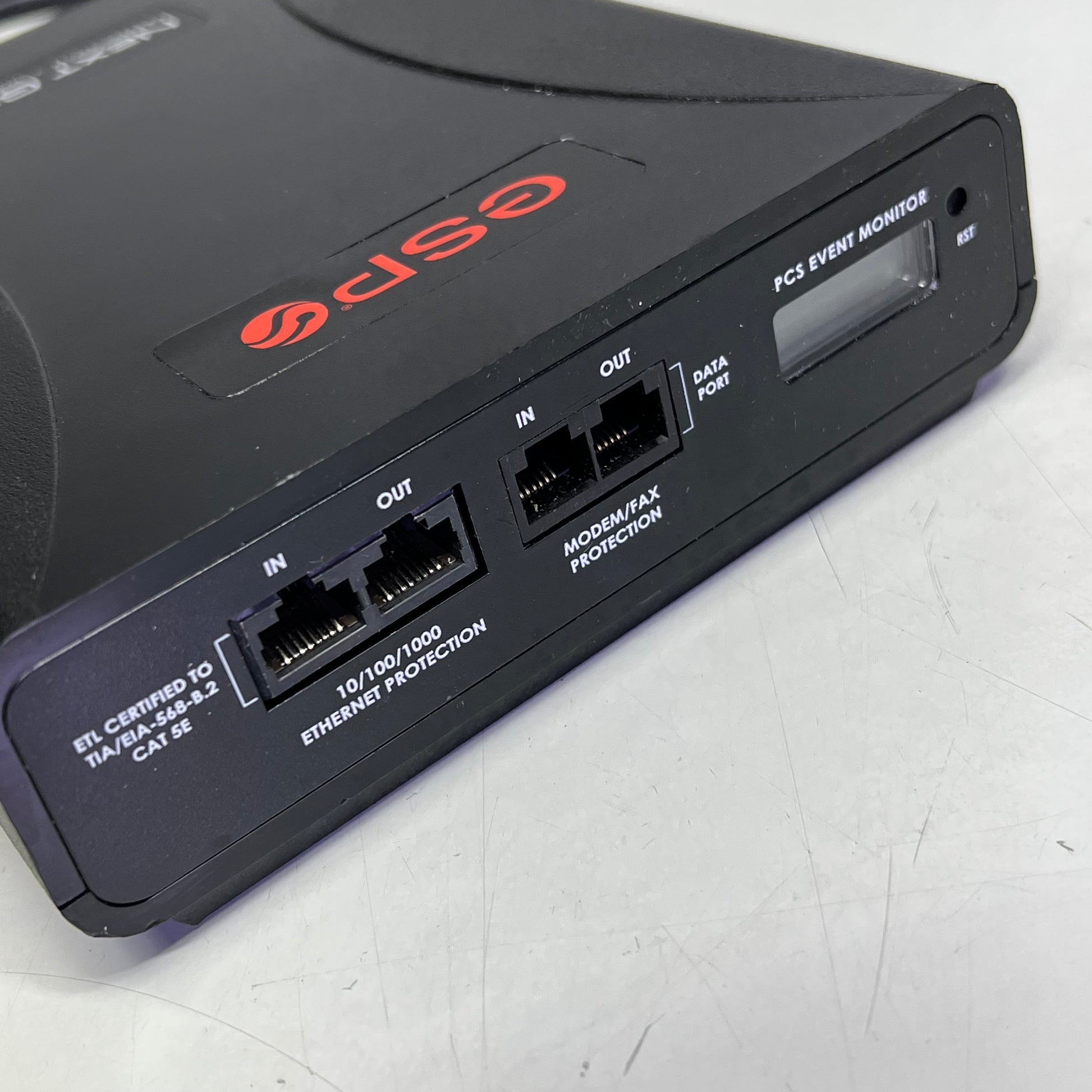

- Modem/Fax Protection: Single telephone line surge suppression.
- Ethernet Protection: Cat5e network surge protection, ETL Certified to TIA/EIA-568-B.2.

  Computer Requirements
- PC Requirements: For use with Next Gen PCS Diagnostic Software. Minimum 133MHz Pentium processor (or equivalent), minimum 64MB of RAM, minimum 10MB free hard drive space, VGA or higher resolution monitor, keyboard, mouse, CD or DVD drive, minimum screen resolution of 1024x768, Microsoft Windows 2000/XP/Vista/7.

  Standards Compliance

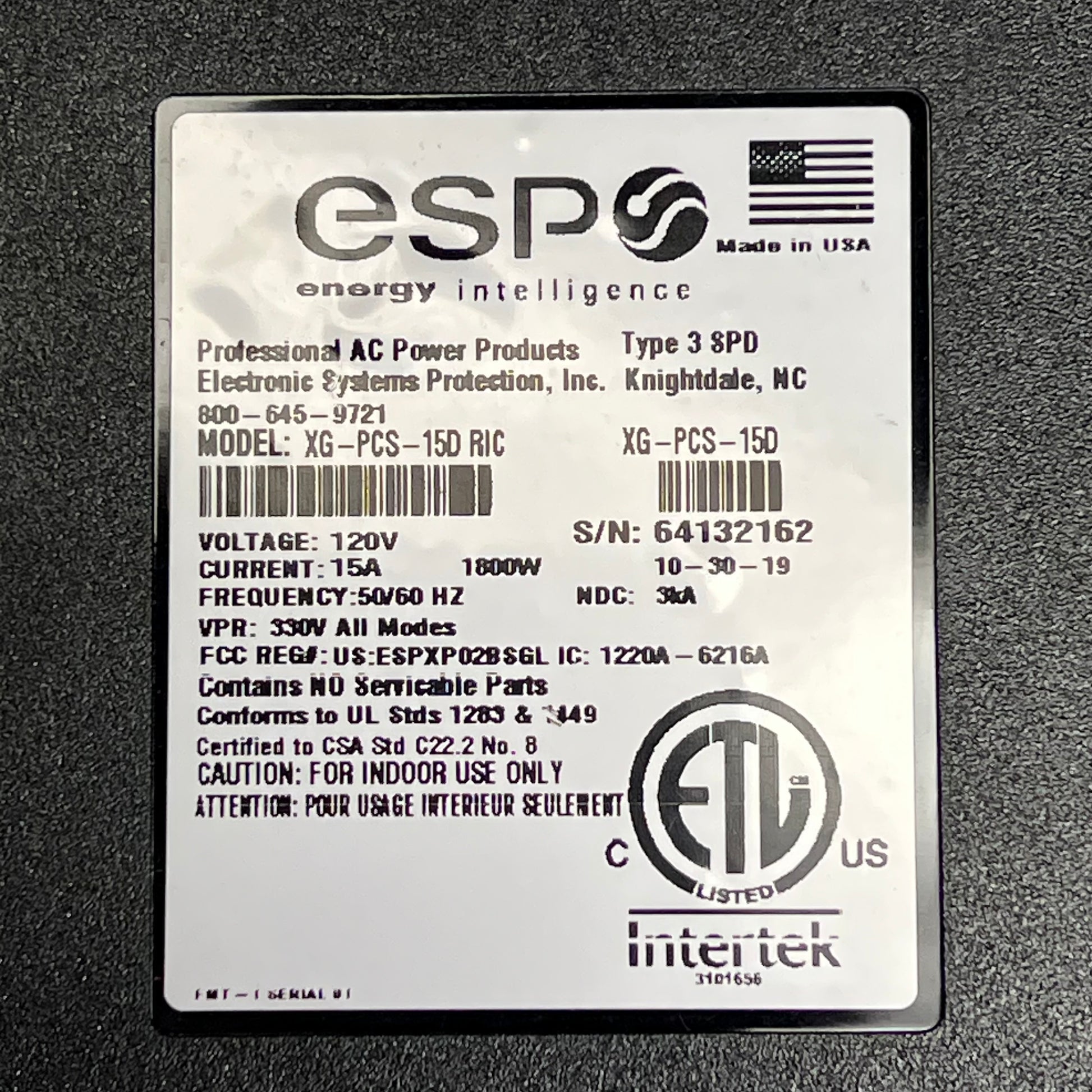

- Agency Listings: ETL Certified to UL 1449 (3rd Edition), ETL Certified to TIA/EIA-568-B.2 Cat 5e, Industry Canada Certified
