HONEYWELL

HONEYWELL

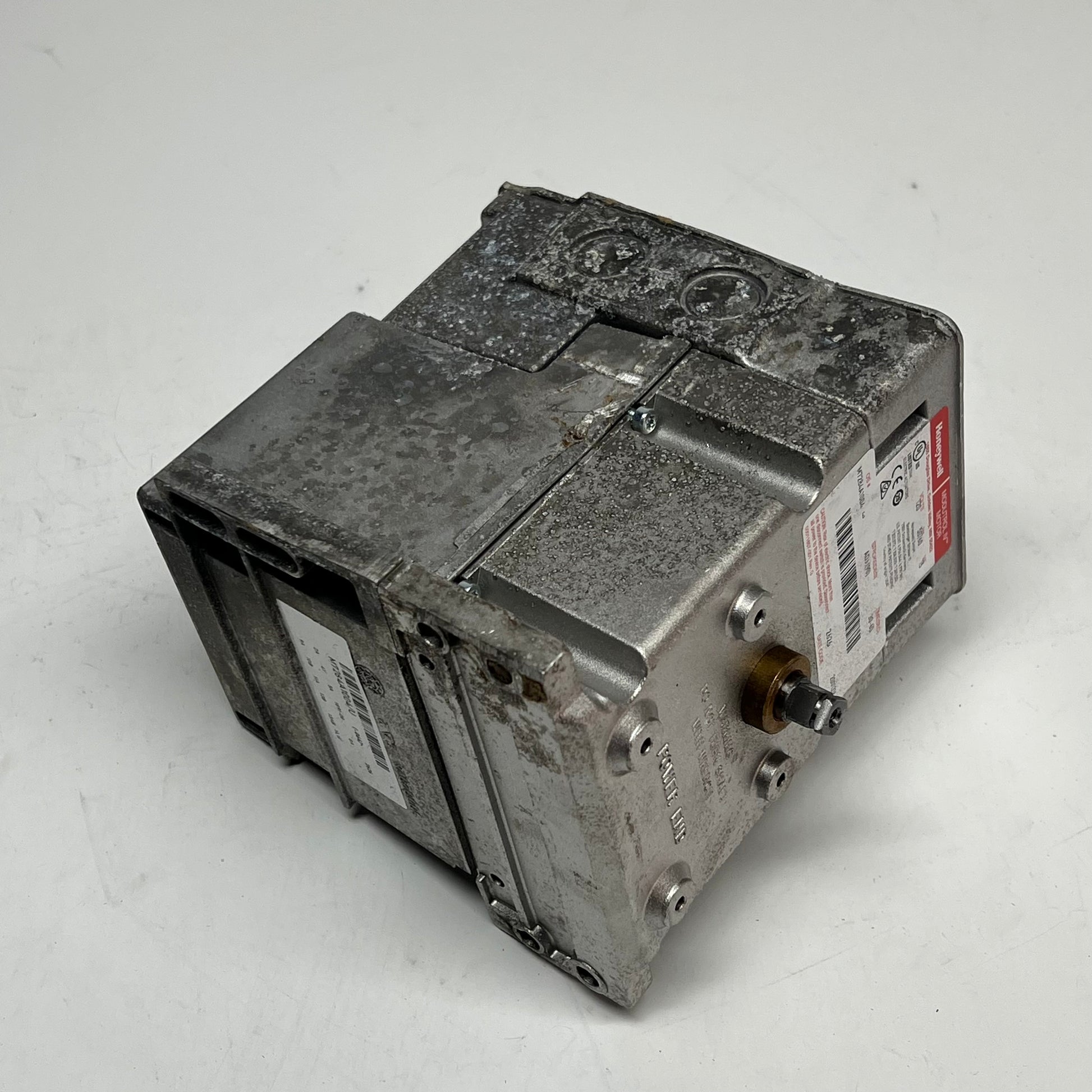

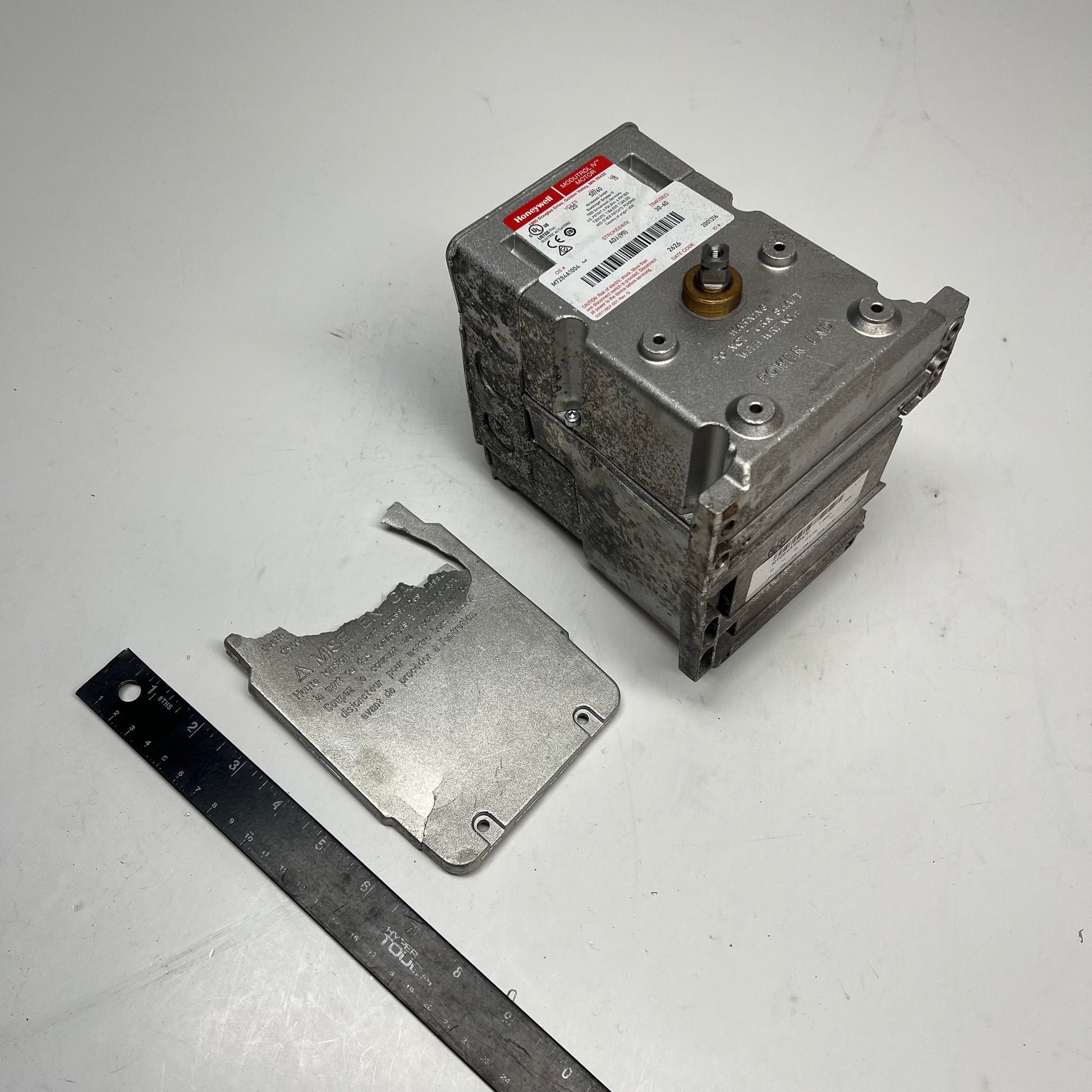

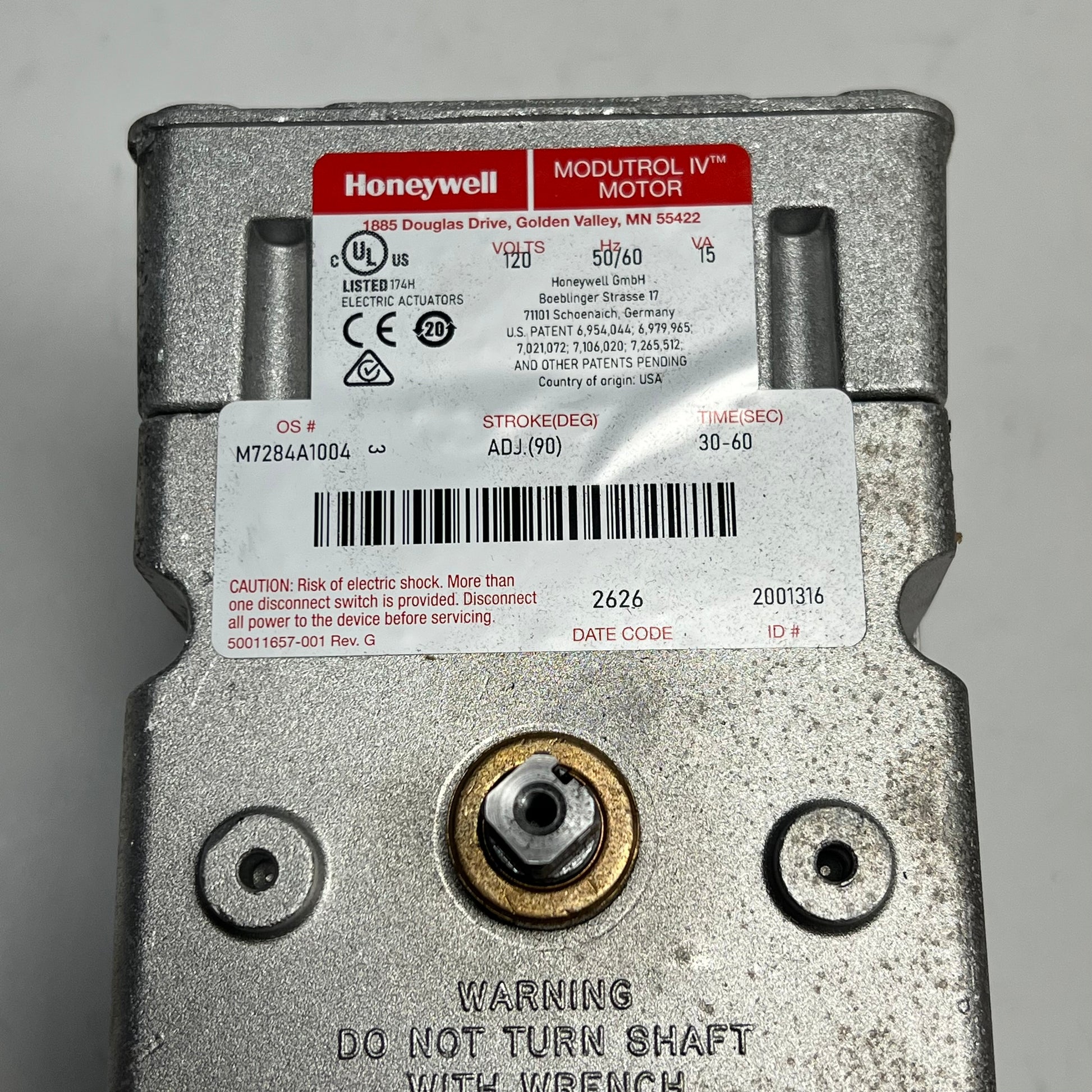

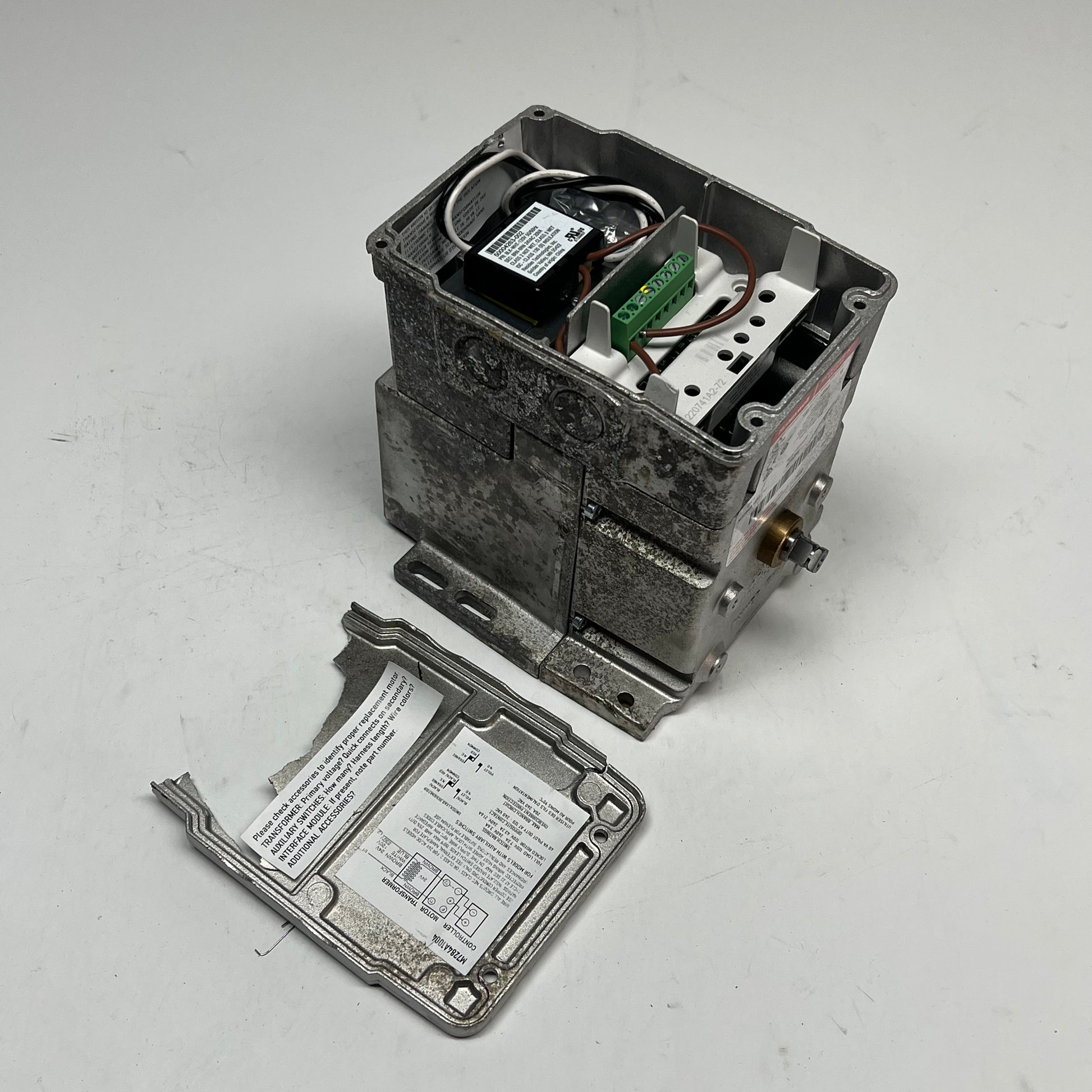

Non-spring Return Foot Mounted Actuator

Condition: New

Size: 120V 150 lb-in.

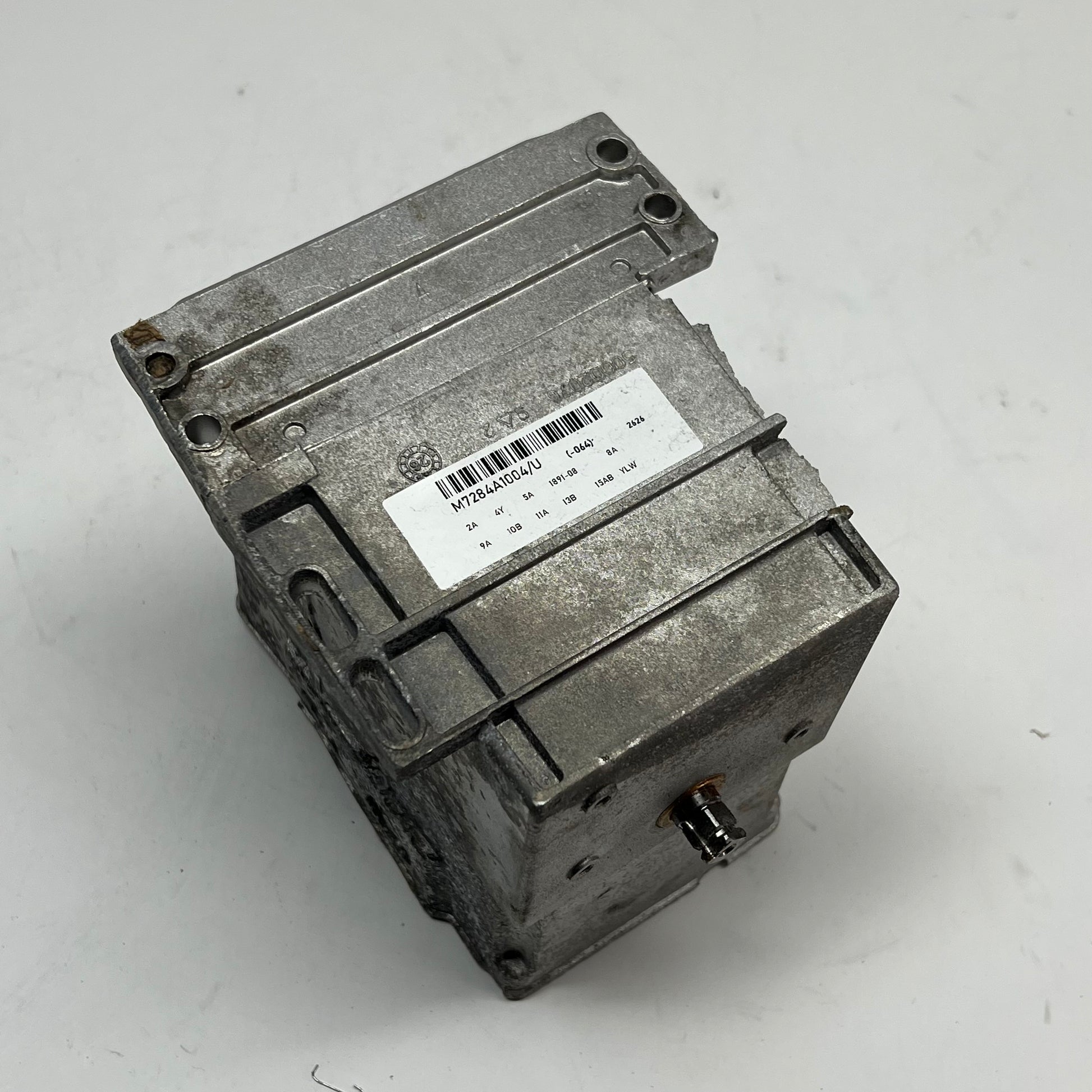

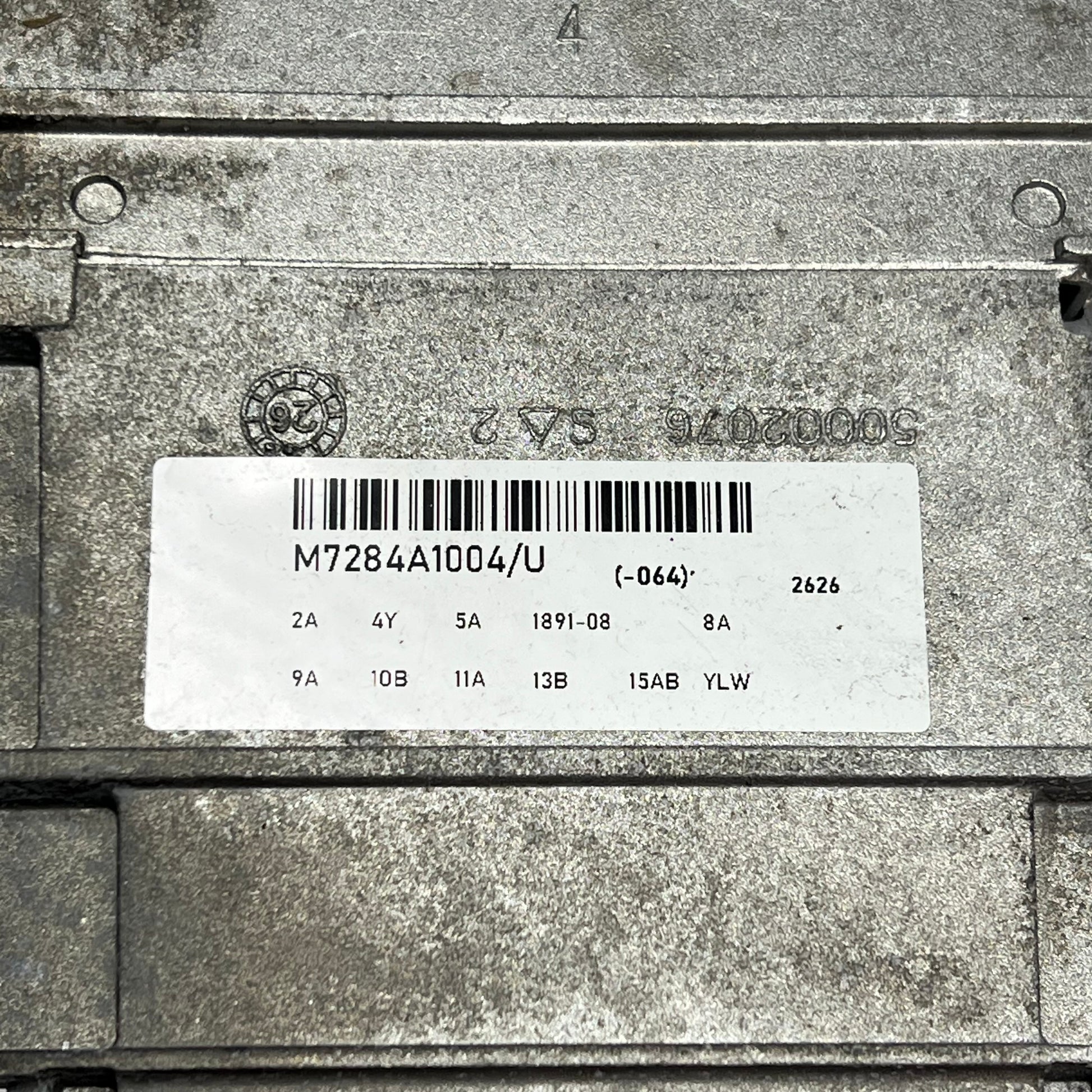

MPN/Model: M7284A1004

Features

• Integral spring return returns motor to normal position when power is interrupted.

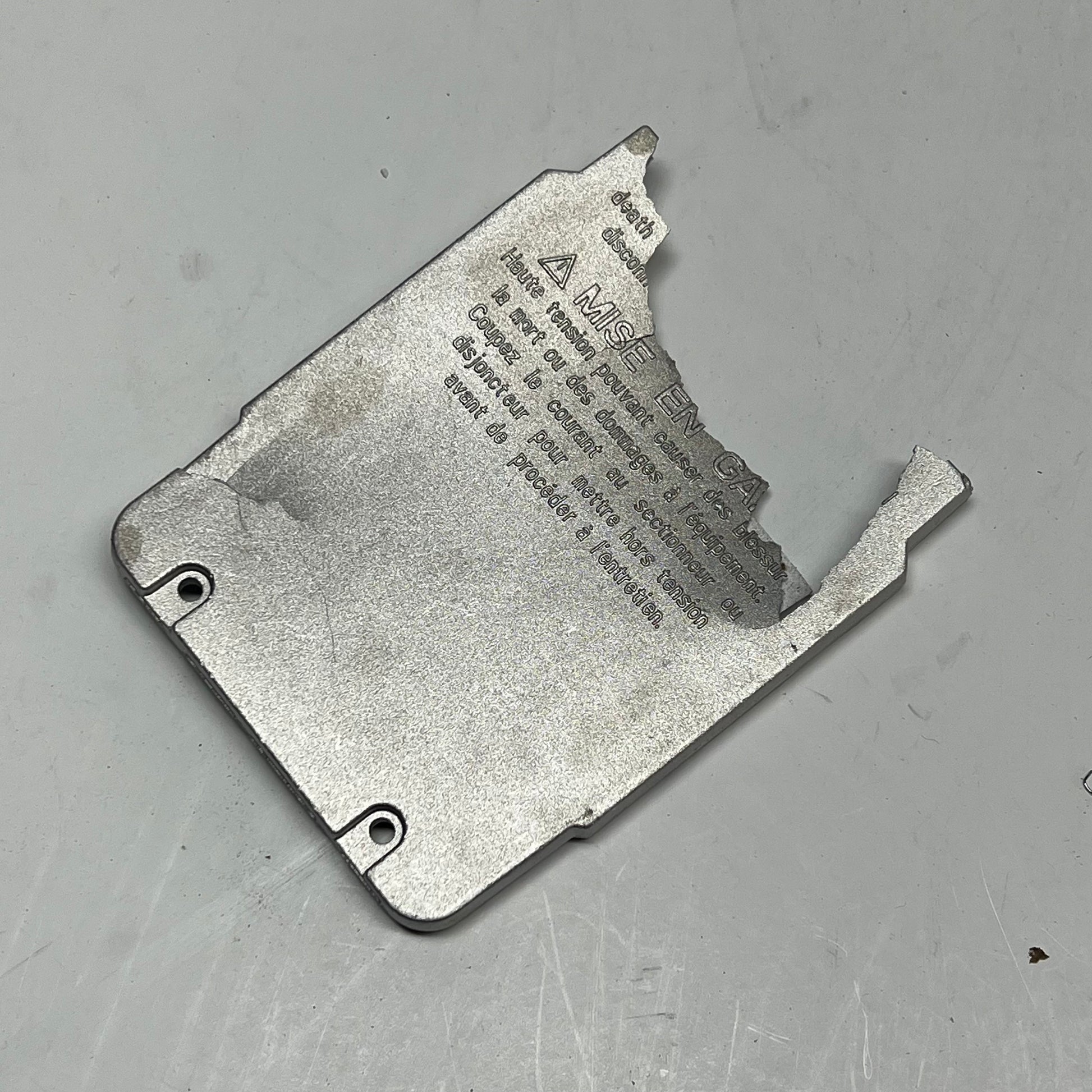

• Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.

• Motor and circuitry operate from 24 Vac.

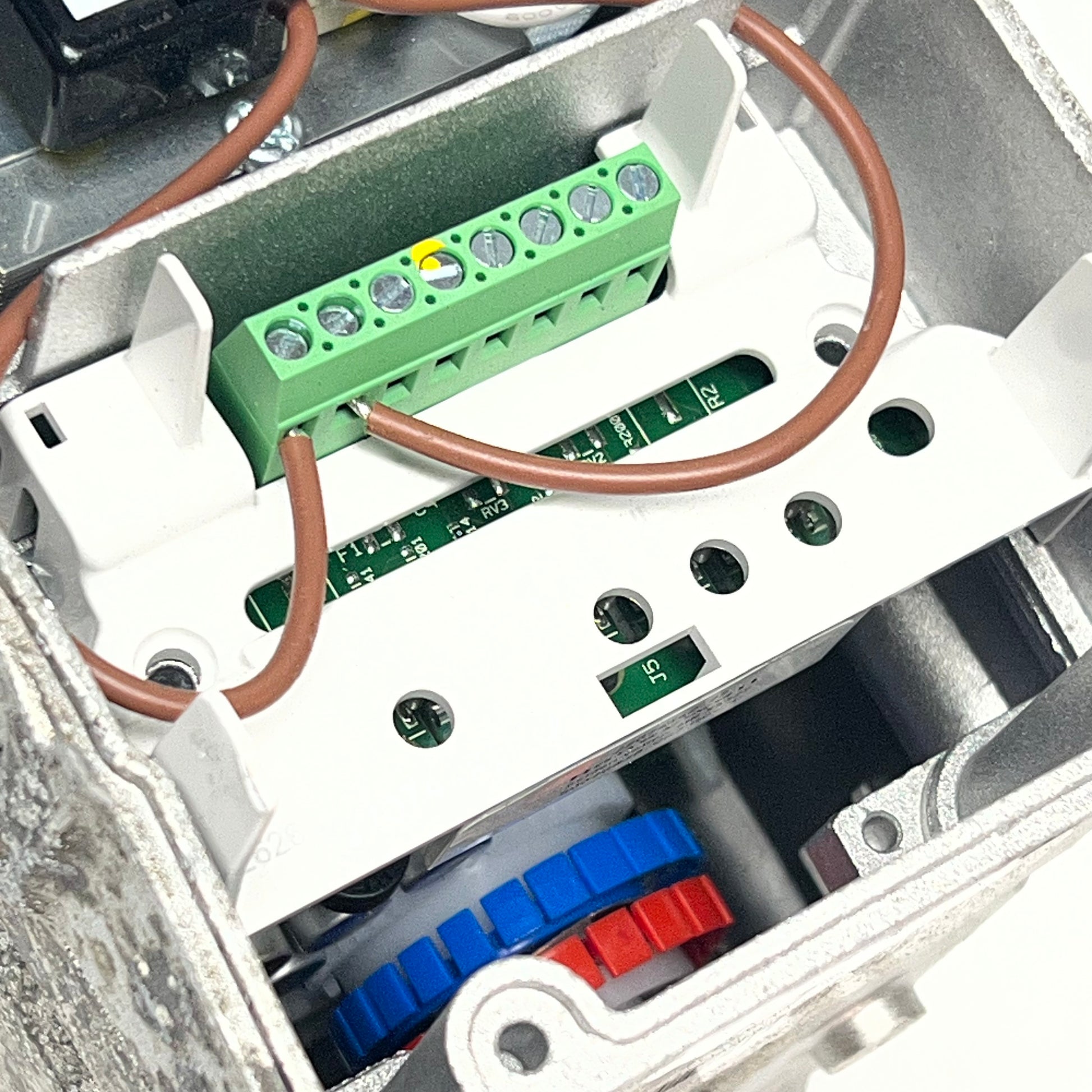

• Quick-connect terminals are standard--screw terminal adapter is available.

• Adapter bracket for matching shaft height of older motors is available.

• Motors have field adjustable stroke (90 to 160 degrees).

• Integral auxiliary switches are available factory mounted, or can be field added.

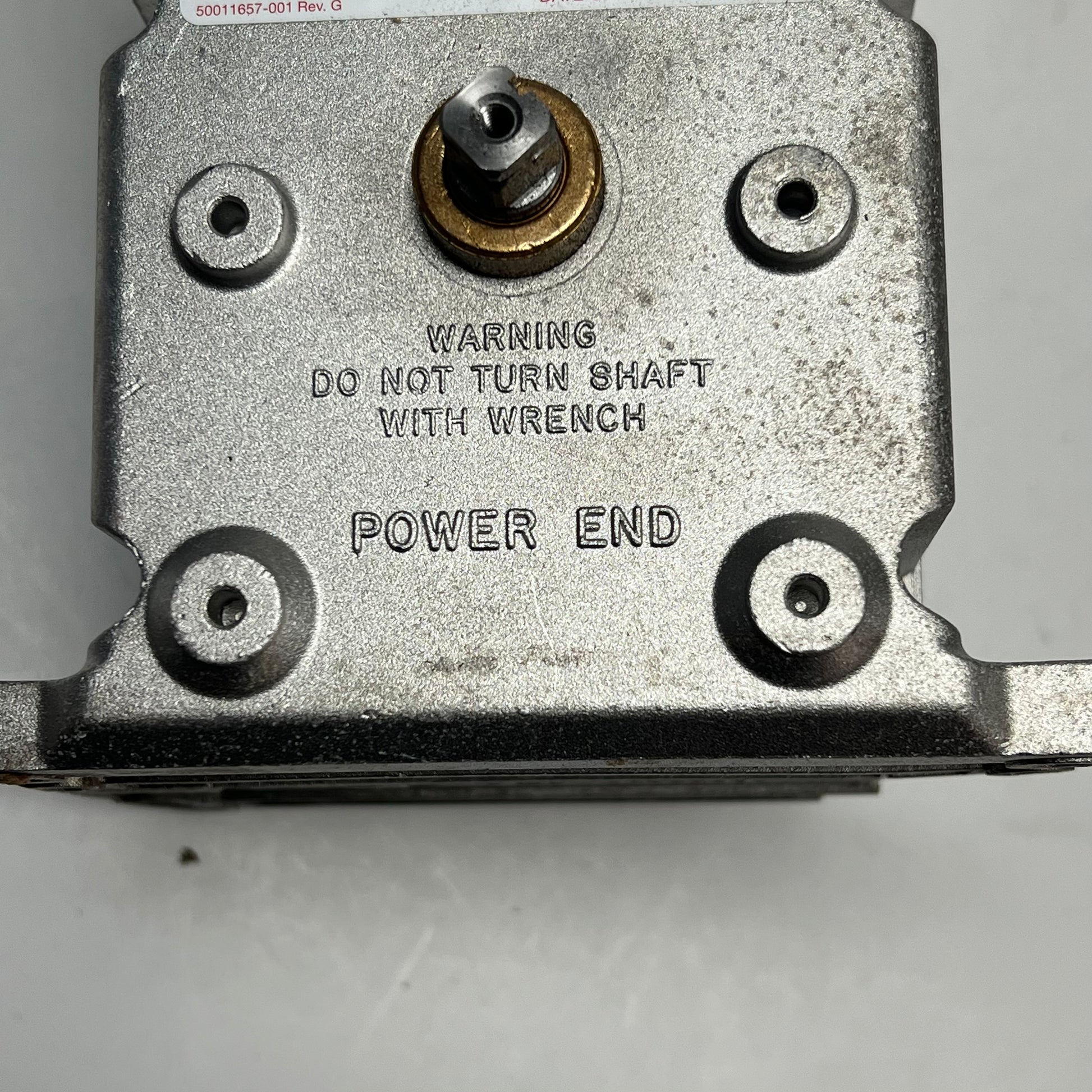

• Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications.

• All models have dual shafts (slotted and tapped on both ends).

• All models have auxiliary switch cams.

• Fixed torque throughout the entire voltage range.

• Motors are designed for either normally open or normally closed valves and dampers.

• Models available with adjustable start (zero) and span.

• Models available with 4 to 20 mA input signal.

• Models available with 2 to 10 Vdc input signal.

• Die-cast aluminum housing.

Condition: New

Size: 120V 150 lb-in.

Best By: 10/07/2026

MPN: M7284A1004

Barcode: m7284a100426262001316

PayWut SKU: CW07987
