HUBBELL

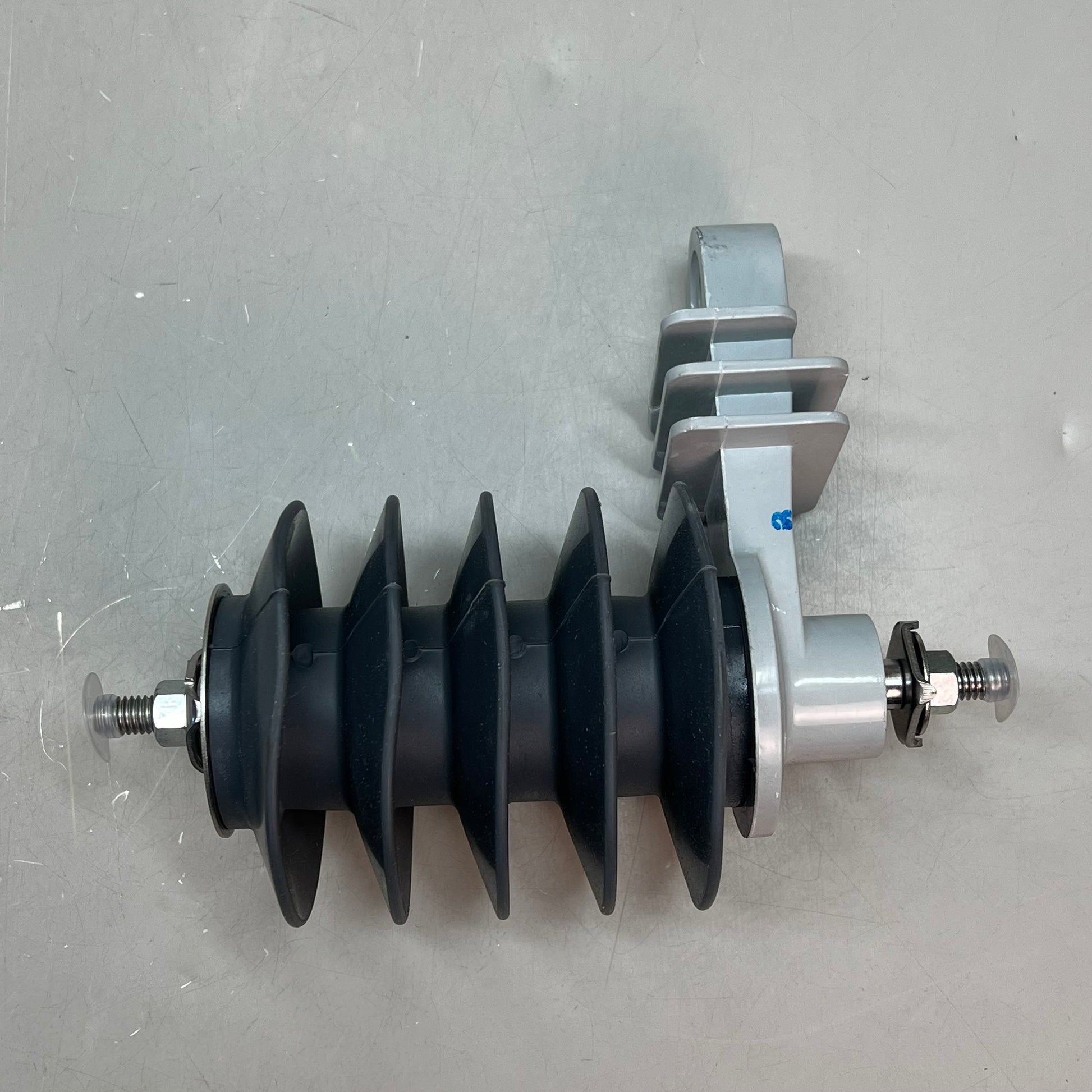

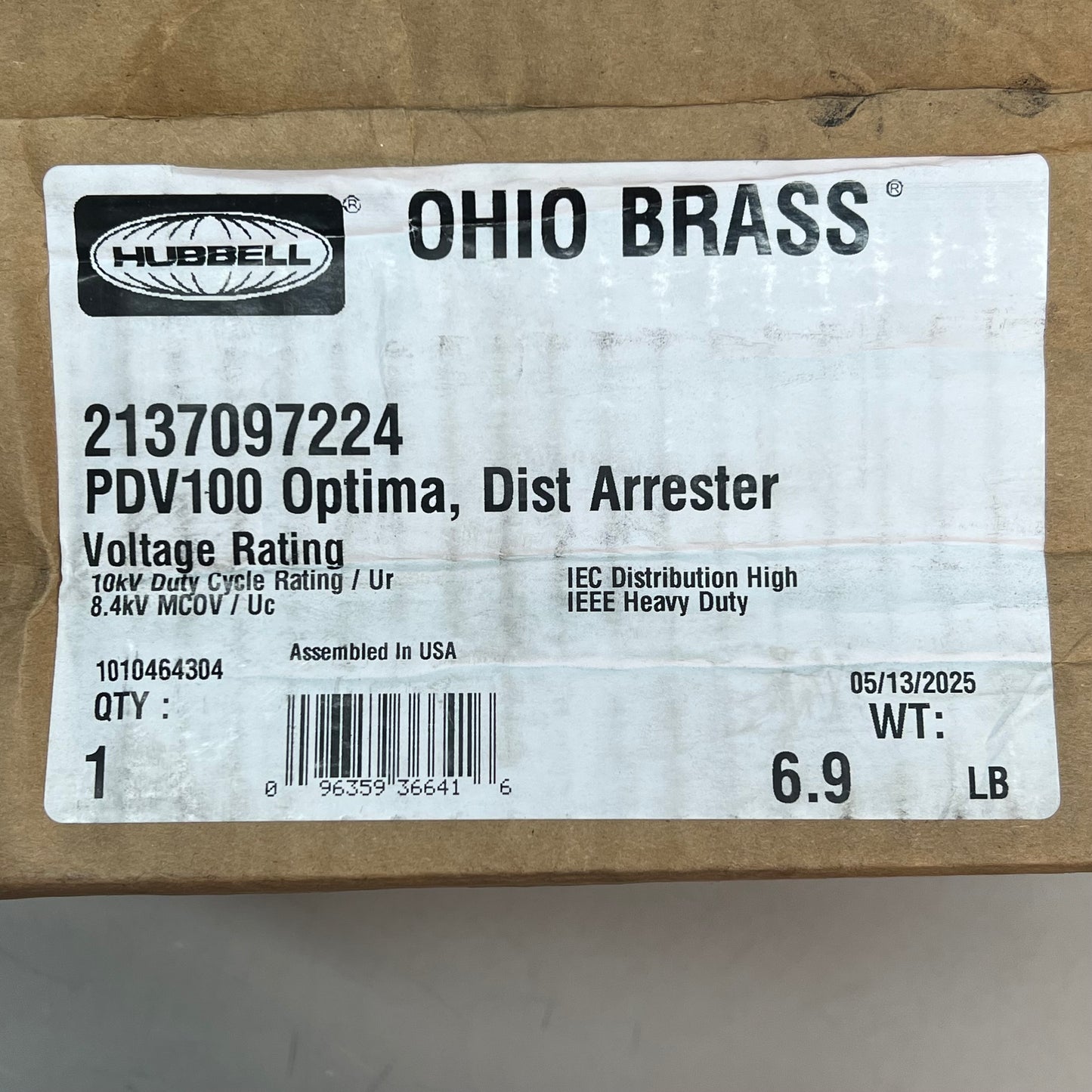

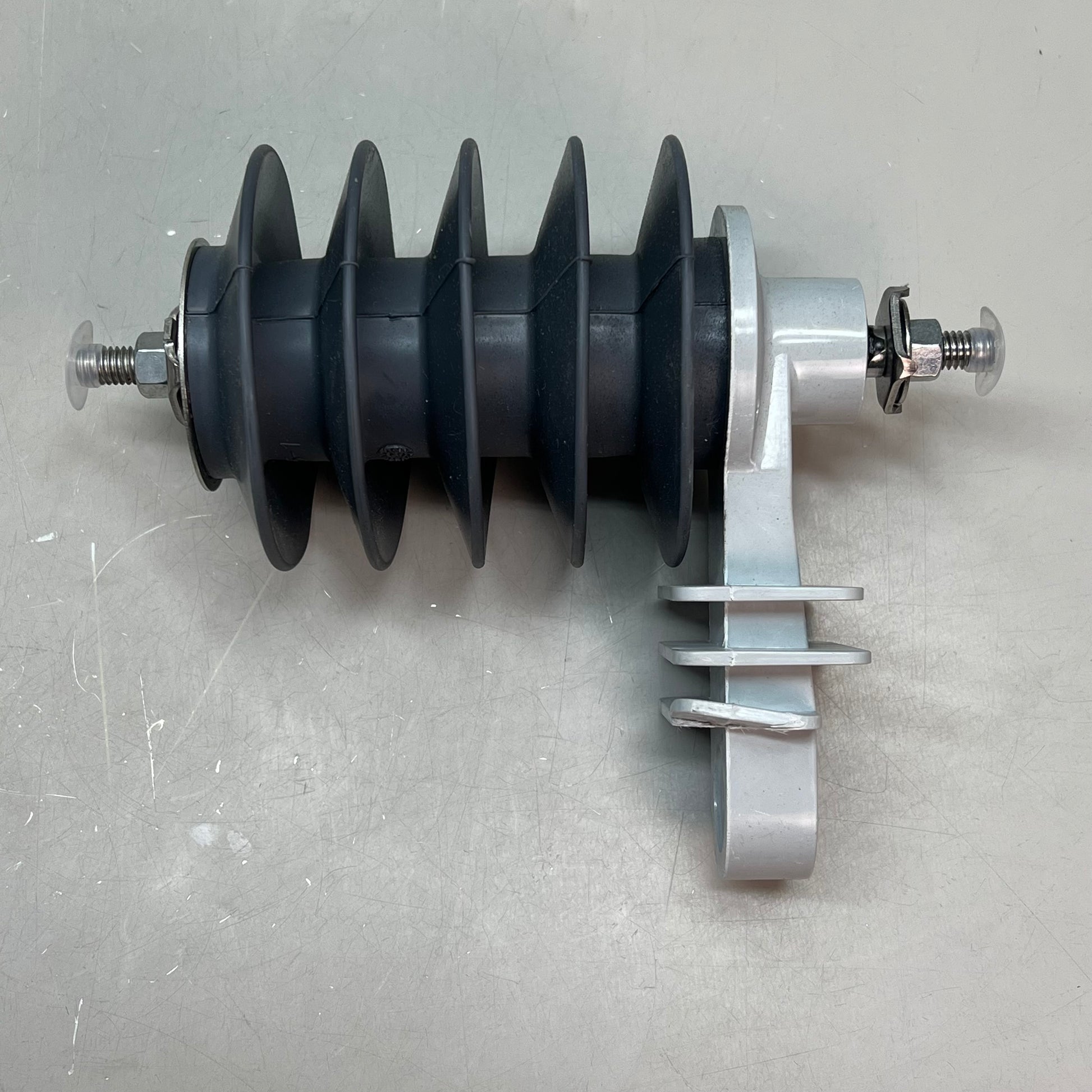

HUBBELL High Quality Optima Arrester 8.4 KV MCOV, 7224 Hardware PDV-100

HUBBELL High Quality Optima Arrester 8.4 KV MCOV, 7224 Hardware PDV-100

$70 USD
$200 USD $70 USD
Sale Sold out
Item standard shipping: $11
Shipping calculated at checkout.
1 Remaining

HUBBELL

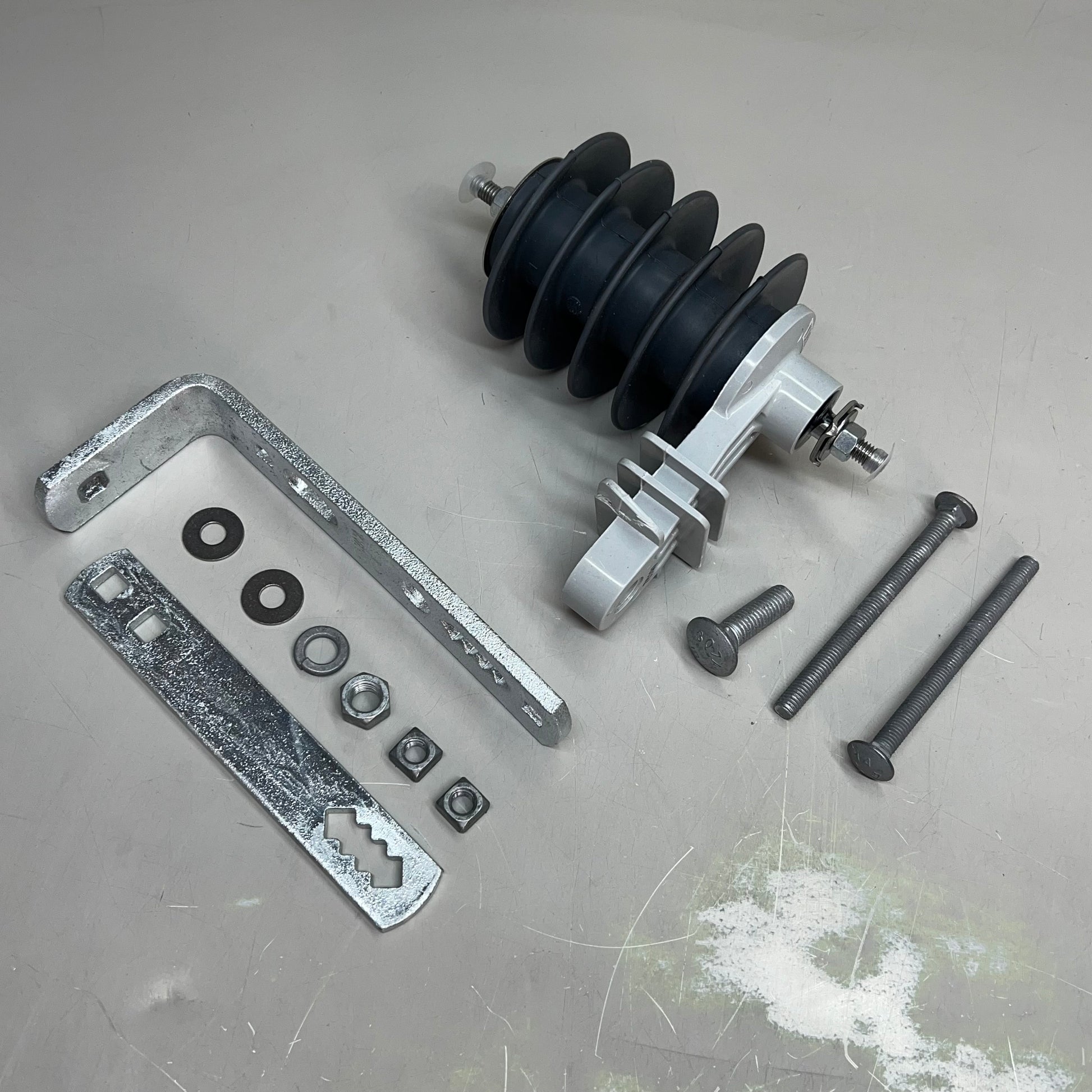

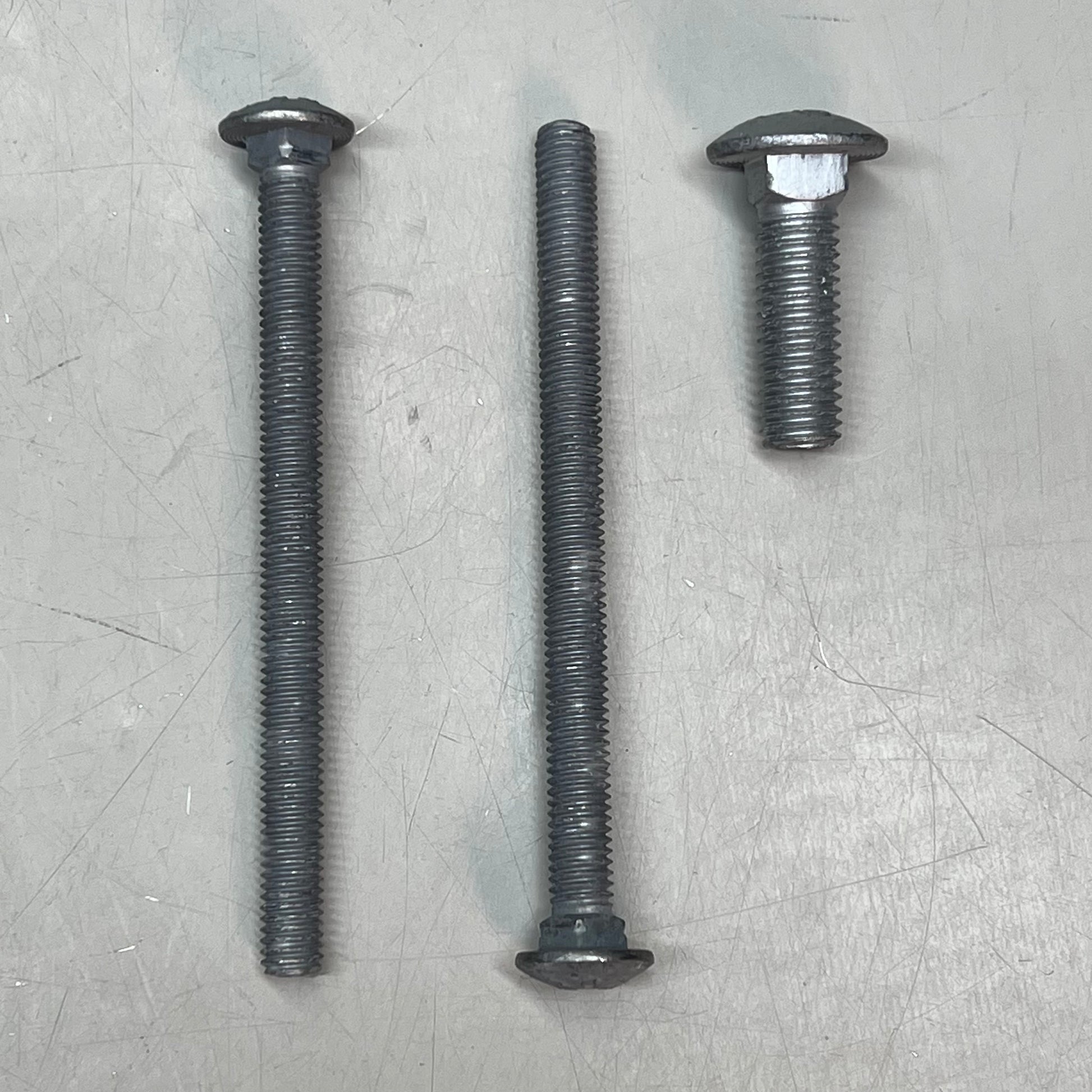

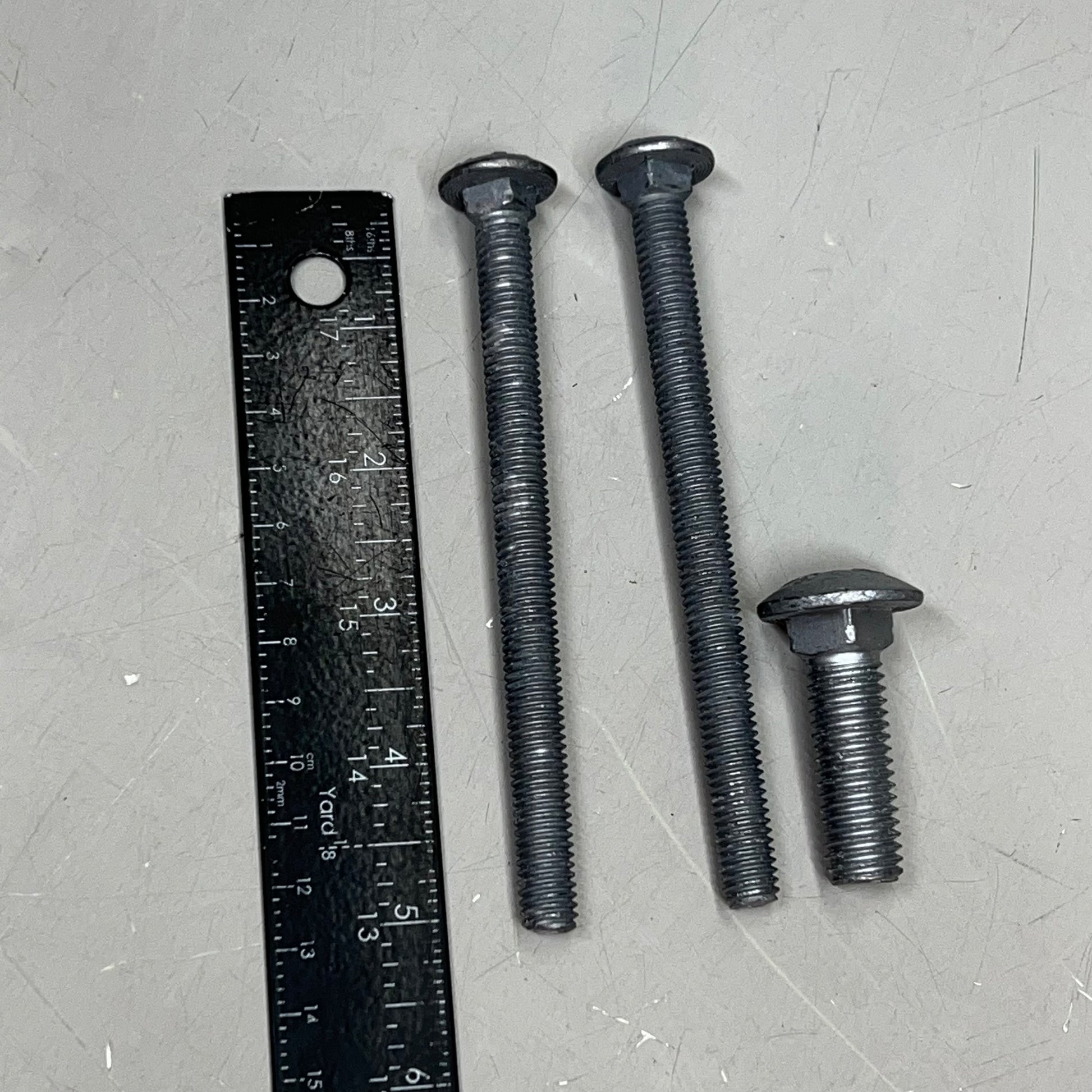

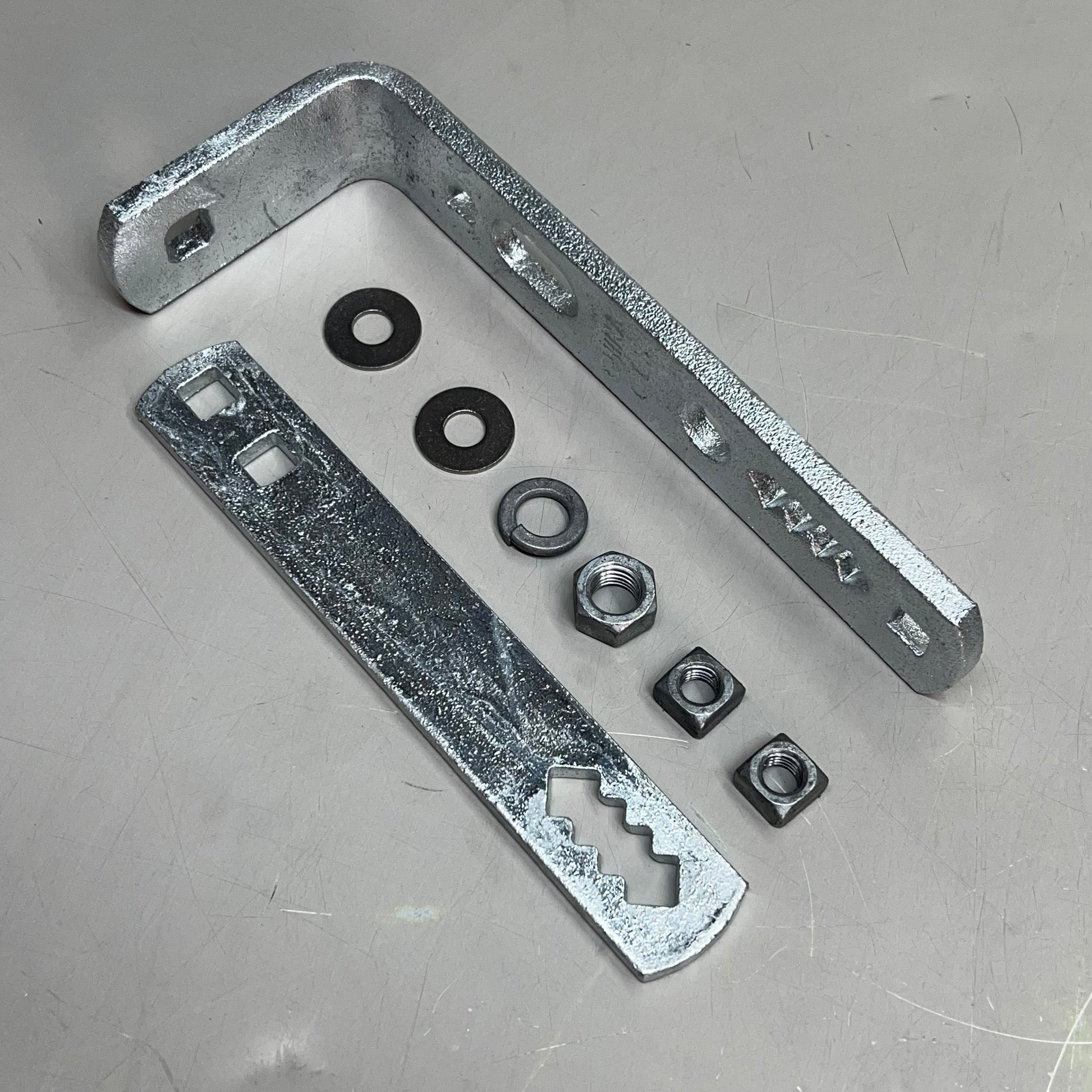

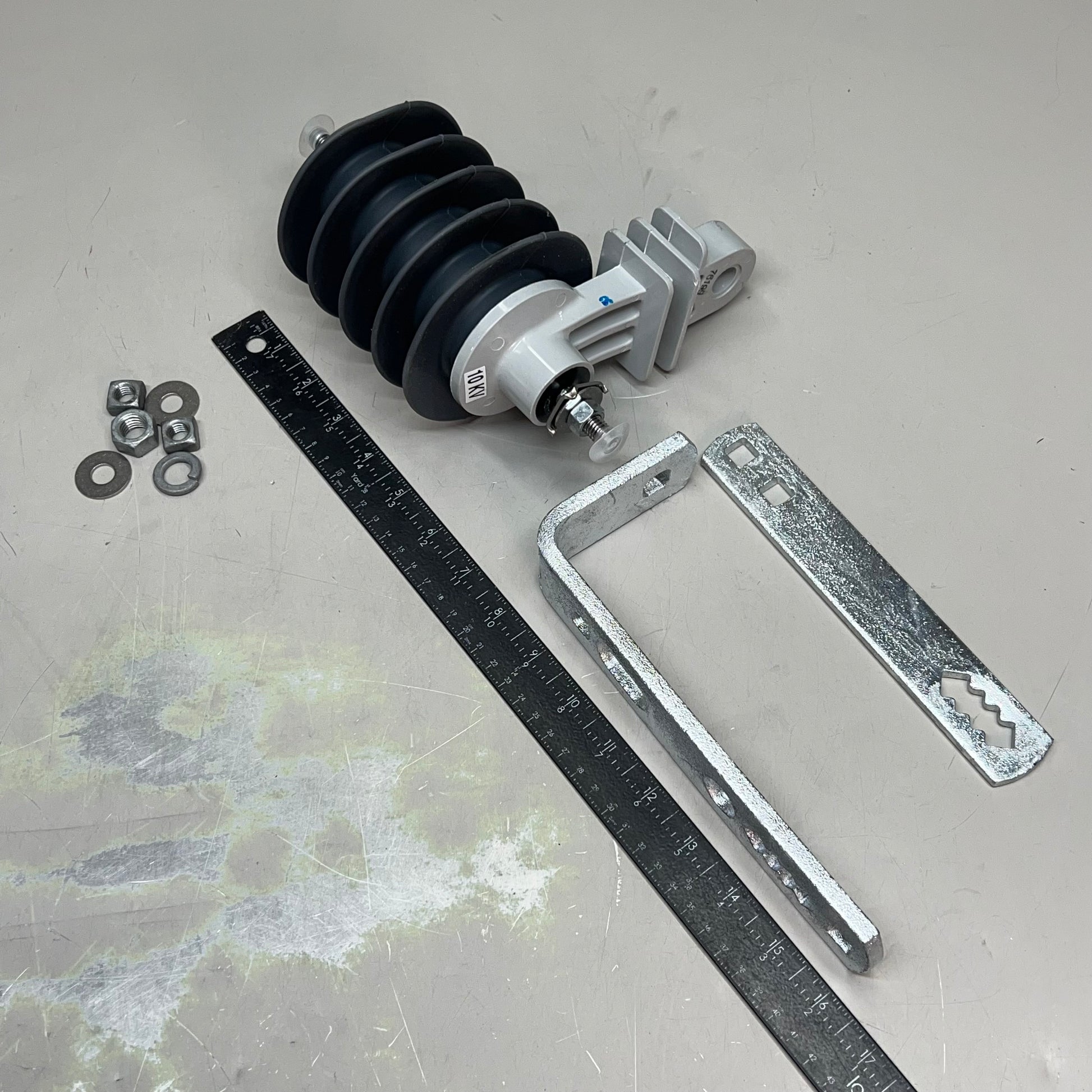

High Quality Optima Arrester 8.4 KV MCOV, 7224 Hardware

Condition: New

MPN/Model: PDV-100

Description:

  • Long lasting ESPTM housing material with superior mechanical strength and electrical characteristics

  • Reliable capacitive disconnector operates at fault currents as low as 1 Amp

  • Dynamic triple sealing system protects internal components from moisture ingress to extend service lifetime

  • High quality MOV discs made in Wadsworth, Ohio since 1978

  • Arresters assembled in Aiken, South Carolina

  • 100% routine tested

General

Application

Distribution

Cantilever Bending Strength - Max.

80 Nm

Catalog Number

2137097224

Color

Gray Housing

Material

ESP™ Polymer Housing

Mounting Position

Upright

Type

Distribution

UPC

096359366416

Dimensions

Dimensions

11.438 in x 9.250 in x 4.938 in

Height

4.938 in

Length

11.438 in

Minimum Mounting Spacing on Center (Sea Level) - Phase to

4.2 in (106.68 mm)

Minimum Mounting Spacing on Center (Sea Level)- Phase to Phase

6.2 in (157.48 mm)

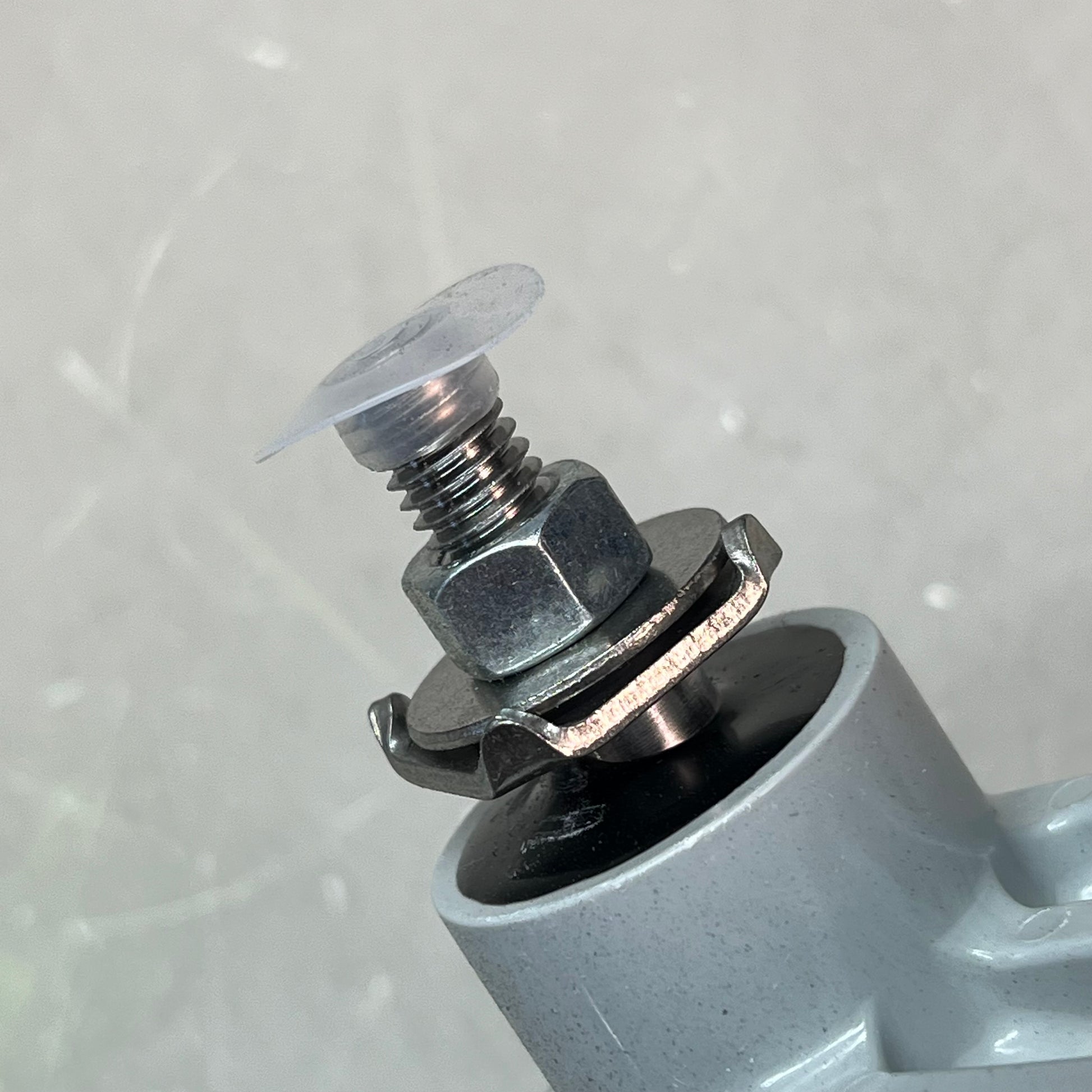

Stud Type

3/8-16

Weight

5.4 lb

Width

9.25 in

Electrical Ratings

Creep and Leakage Distance

14.4 in (365 mm)

Current - Low Current Long Duration (LCLD) Test

250 A

Duty Cycle

10 kV

Frequency Rating

48-62 Hz

Maximum .5 Microsecond Discharge Volts @ Classifying Current

35.5 kV

Maximum Discharge Voltage



Maximum Switching Surge Protective Level @ 500A

23.4 kV

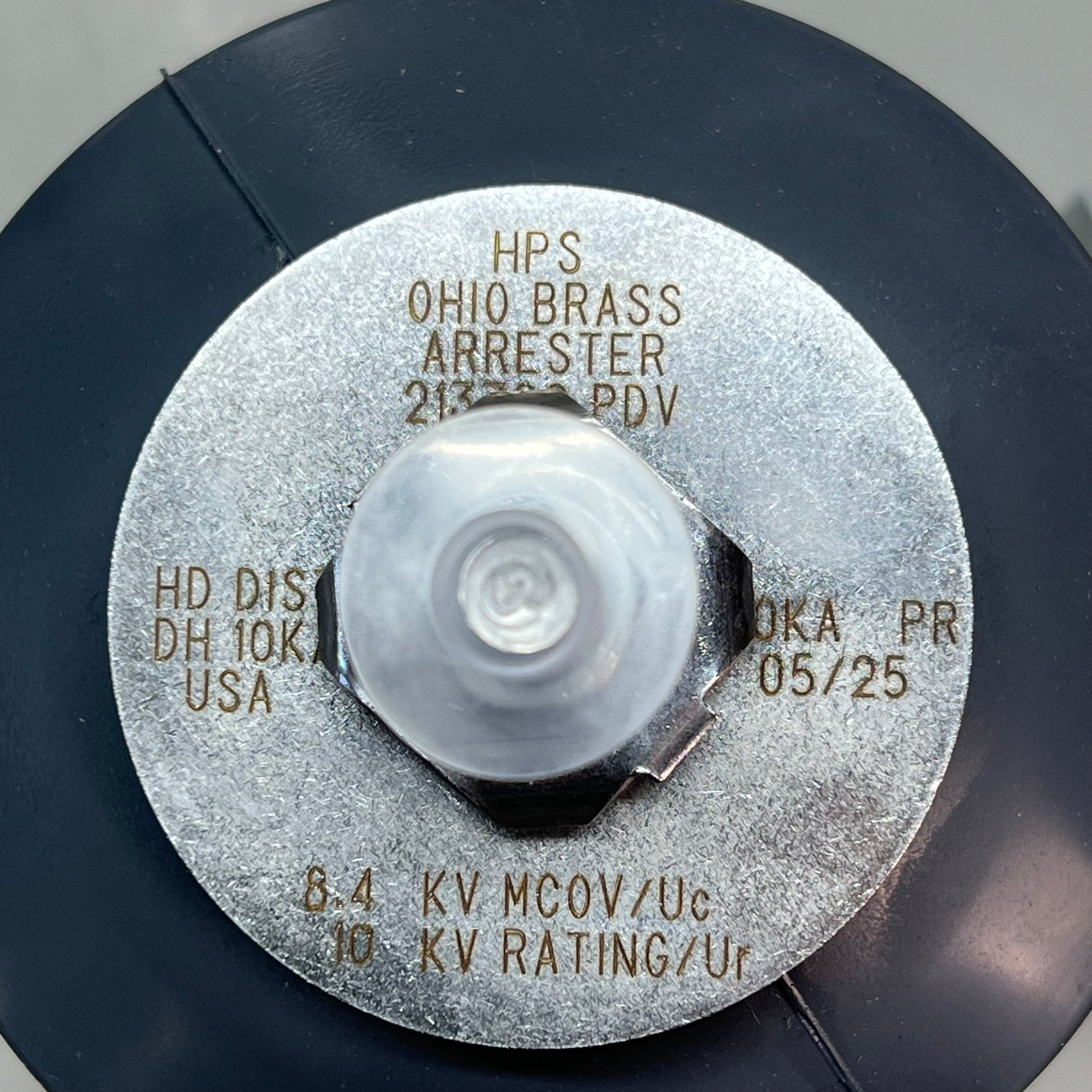

MCOV

8.4 kV

Minimum Strike

5.7 in

Pressure Relief Capability-Symmetrical rms (kA)

20

Time - Low Current Long Duration (LCLD) Test

2000 µs

Force Related

Cantilever Bending Strength - Max.

80 Nm

Configuration

Mounting Position

Upright

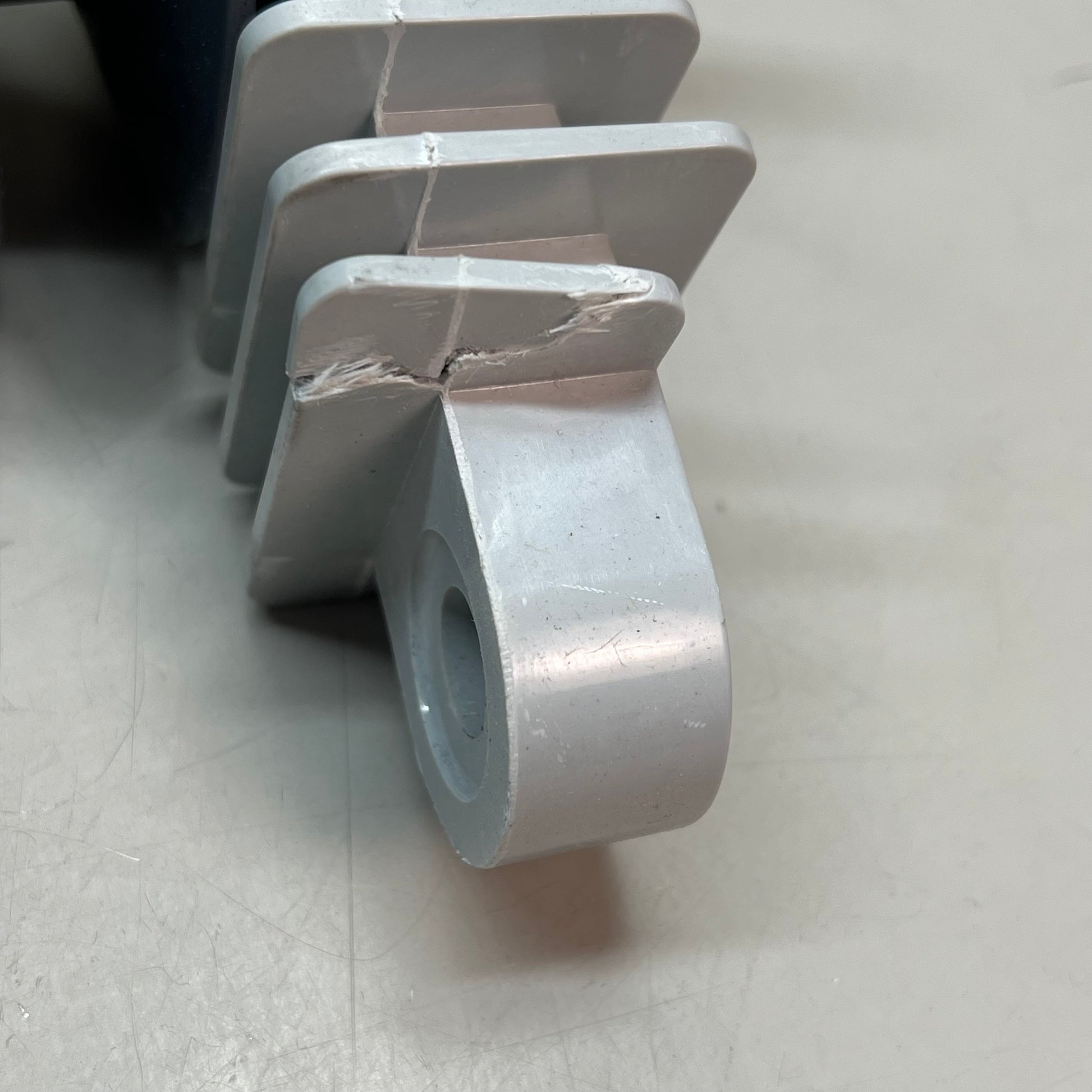

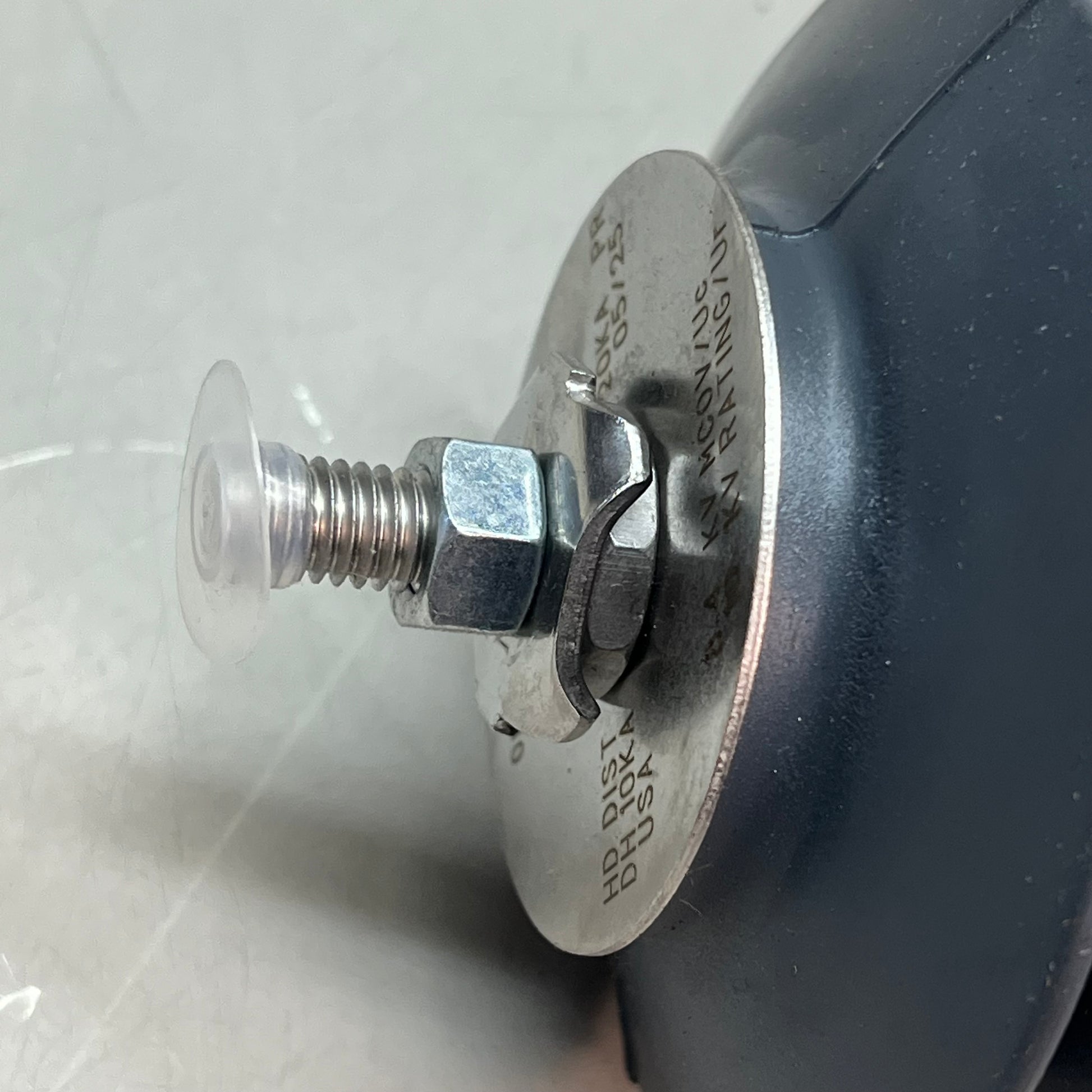

Condition: As-is - Small Damage (See Images)

Size: 4

Color: Grey/Silver

MPN: PDV-100

Barcode: 096359366416

PayWut SKU: CWY021
Bin: 13-07-D
