THK

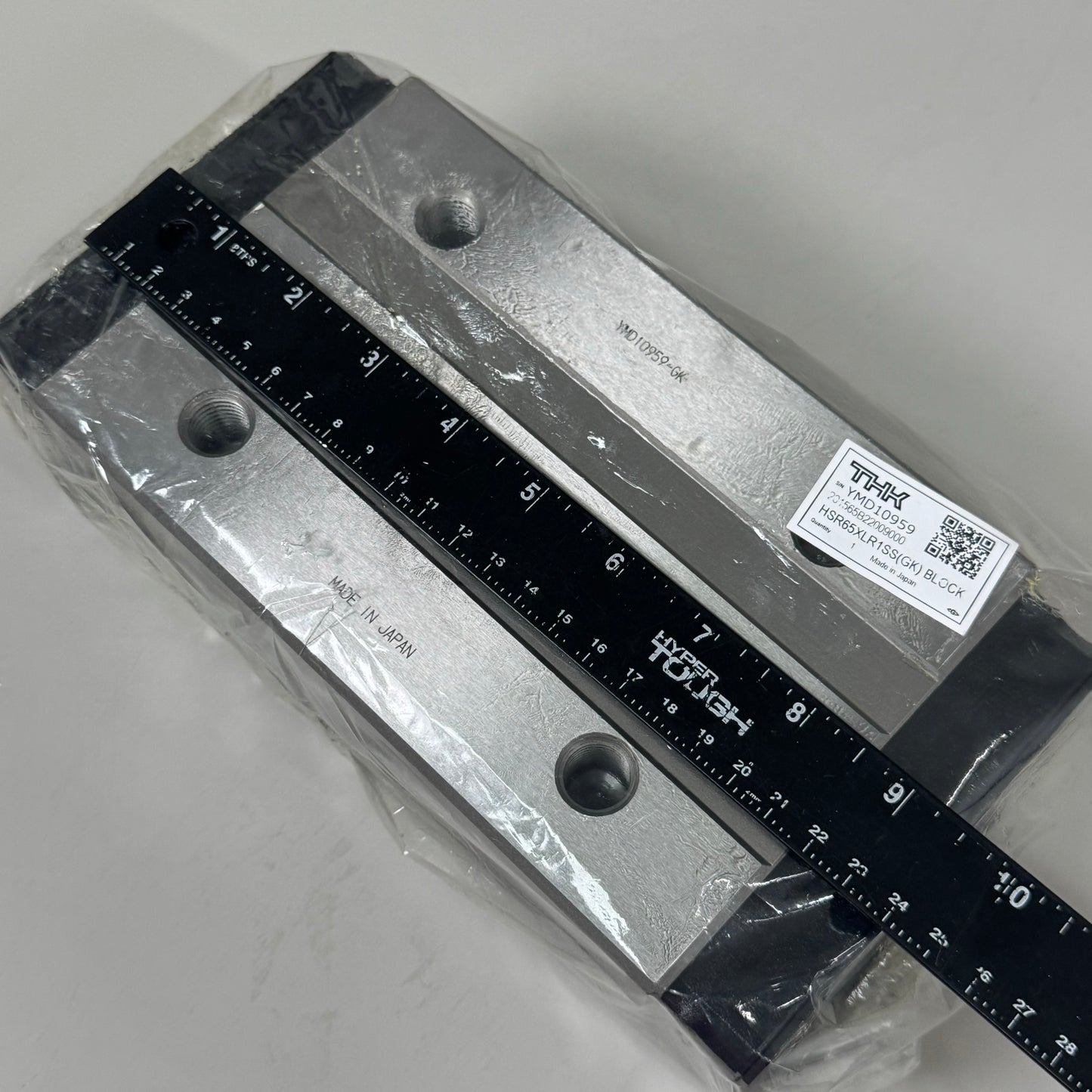

Interchangeable Linear Guide Ball Carriage Profile Rail
Condition: New
Size:
63 mm Rail, 126 mm Wide x 250 mm Long, Static Load Capacity: 323 kN
Color: Silver/Black
Model: HSR65XLR1SS(GK) BLOCK / 20156 5B220 09000
Description:
Global standard size
GK series: individual blocks are stocked for easy & fast interchangeability
Compact block with tapped holes (suited for application where the space is limited)
Large permissible load: 13x load capacity compared to linear bushing (round shaft), equating to 2,200x longer life and significant downsizing potential
4-way equal load structure: rated loads applied to the block are uniform in the four direction (radial, reverse radial, and lateral directions), enabling the linear motion guide to be used in all orientations and in extensive applications
Mounting error absorbing capability: THK's unique circular-arc groves enables a mounting error to be absorbed, achieving highly accurate, smooth straight Motion Industries
High durability: smooth motion, high wear resistance, and long-term maintenance of accuracy are achieved as a result of the circular arc design that prevents differential slip of the balls from occurring
Energy efficient: 10x energy saving compared to sliding guide *based on internal test result
