Measuring range – Distance
|
30 m [Meter - Foot]
|
|
Process temperature
|
-196 ... 200 °C [°C - °F]
|
|
Process pressure
|
-1 ... 25 bar [Bar - kPa - psi]
|
|
Accuracy
|
± 1 mm
|
|
Frequency
|
80 GHz
|
|
Beam angle
|
= 3°
|
|
Version
|
with plastic horn antenna ø 80 mm
|
|
Thread with integrated horn antenna
|
|

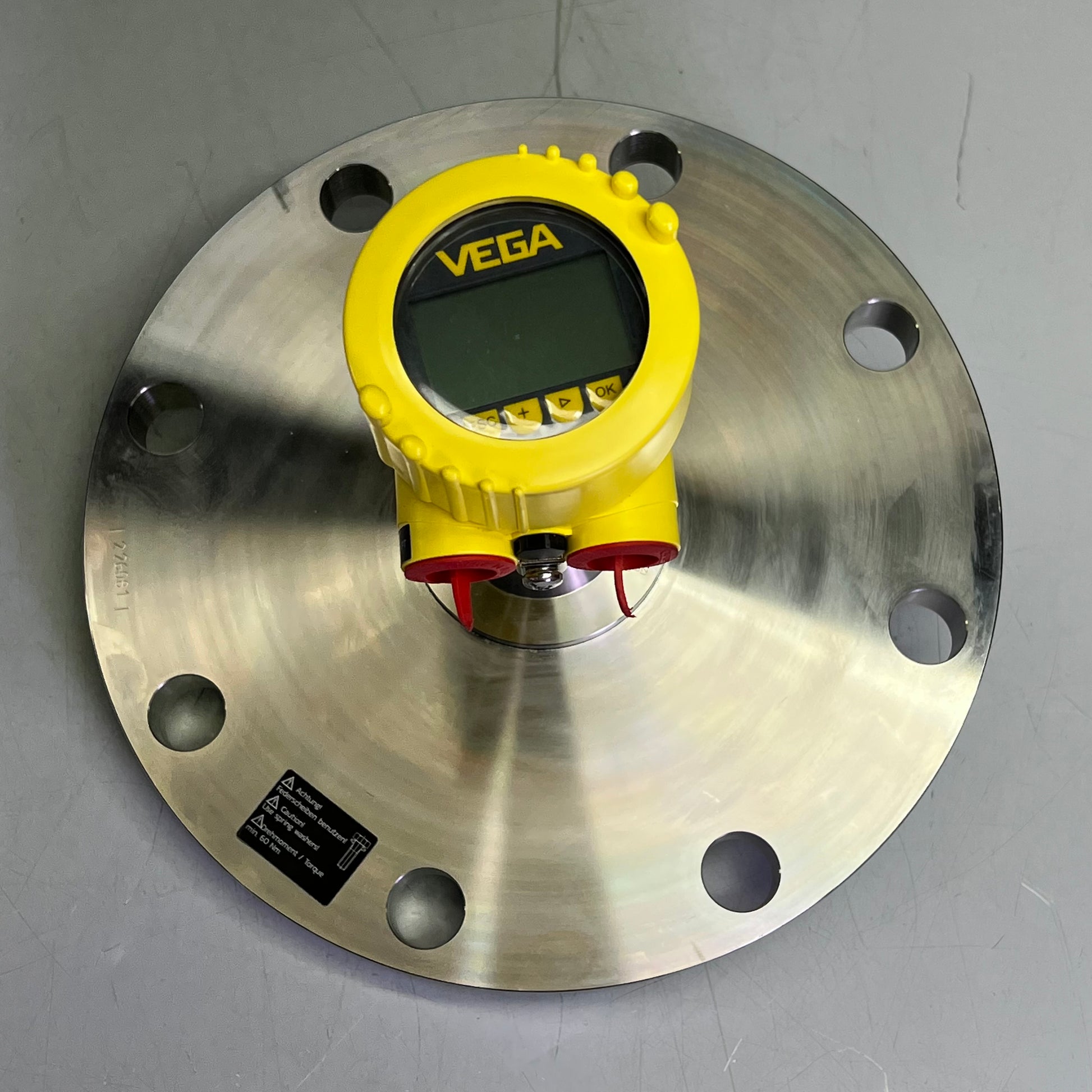

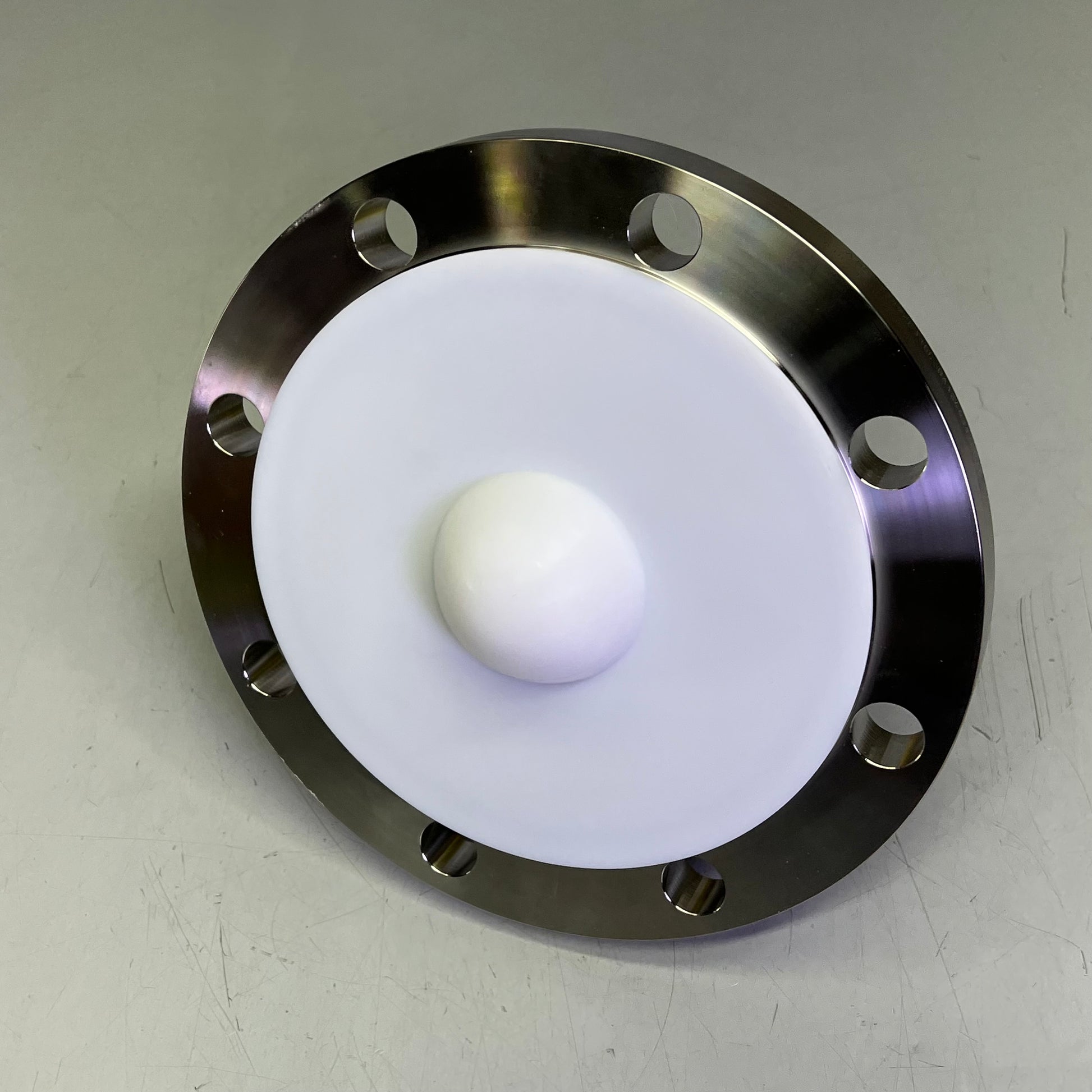

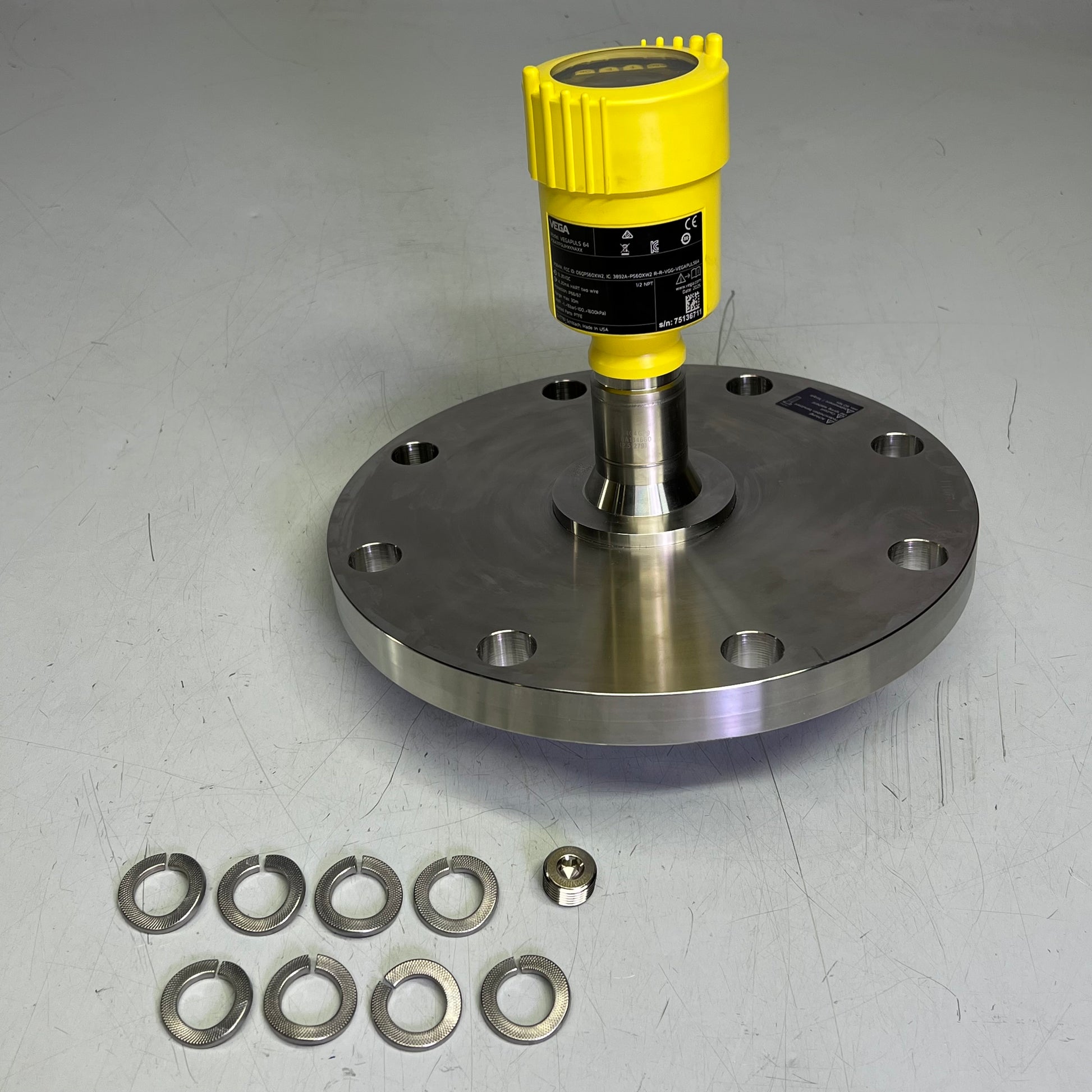

Flange with encapsulated antenna system
|
|
Hygienic fitting with encapsulated antenna system
|
|
Materials, wetted parts
|
PFA
|
|
PTFE
|
|
316L
|
|
Alloy C22 (2.4602)
|
|
PEEK
|
|
Threaded connection
|
= G¾, = ¾ NPT
|
|

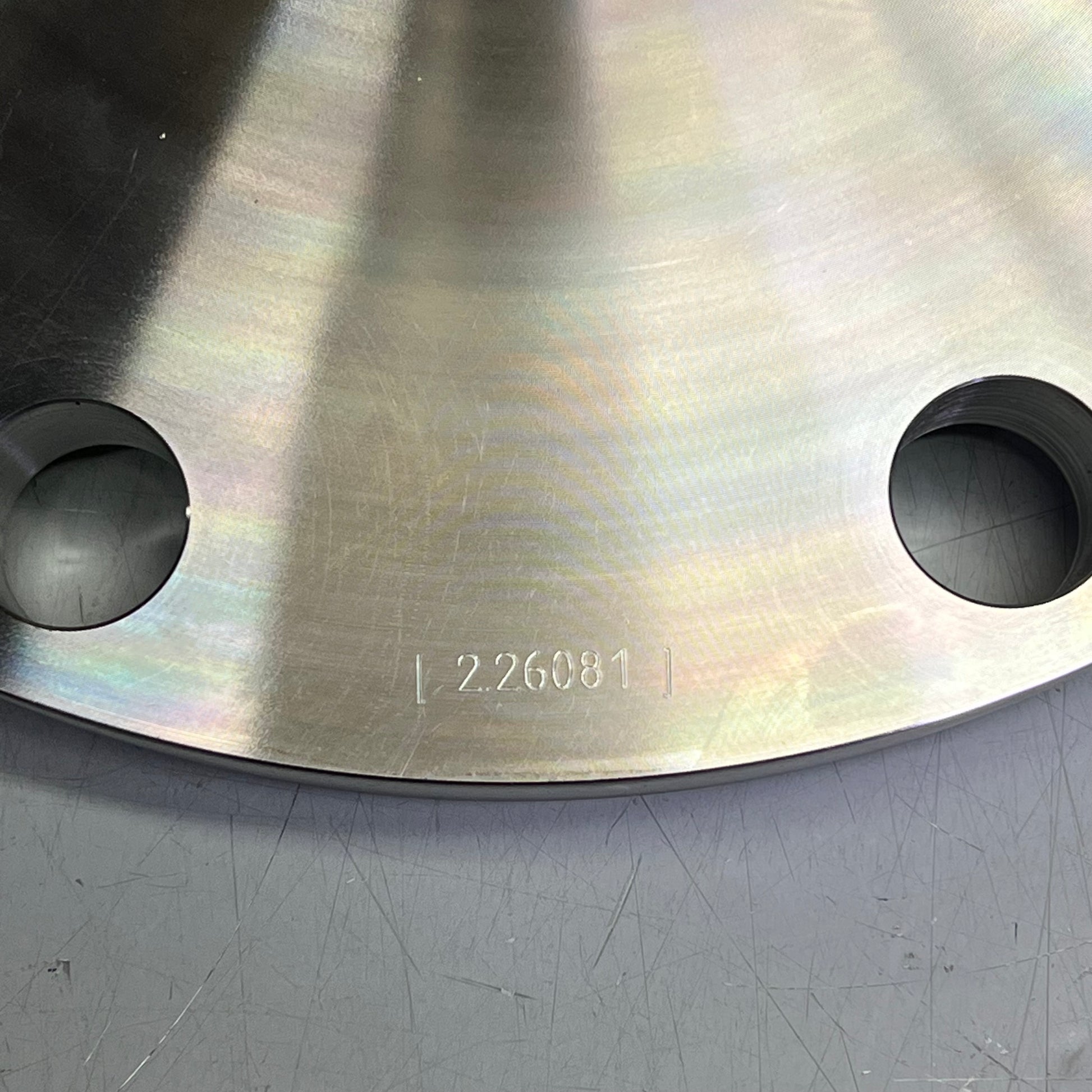

Flange connection
|
= DN50, = 2"
|
|
Hygenic fittings
|
Clamp = 2", DN50 - DIN32676, ISO2852
|
|
Slotted nut = 2", DN50 - DIN 11851
|
|
DRD connection ø 65 mm
|
|
for NEUMO BioControl D50 PN16 / 316L
|
|
Seal material
|
EPDM
|
|
FKM
|
|
FFKM
|
|

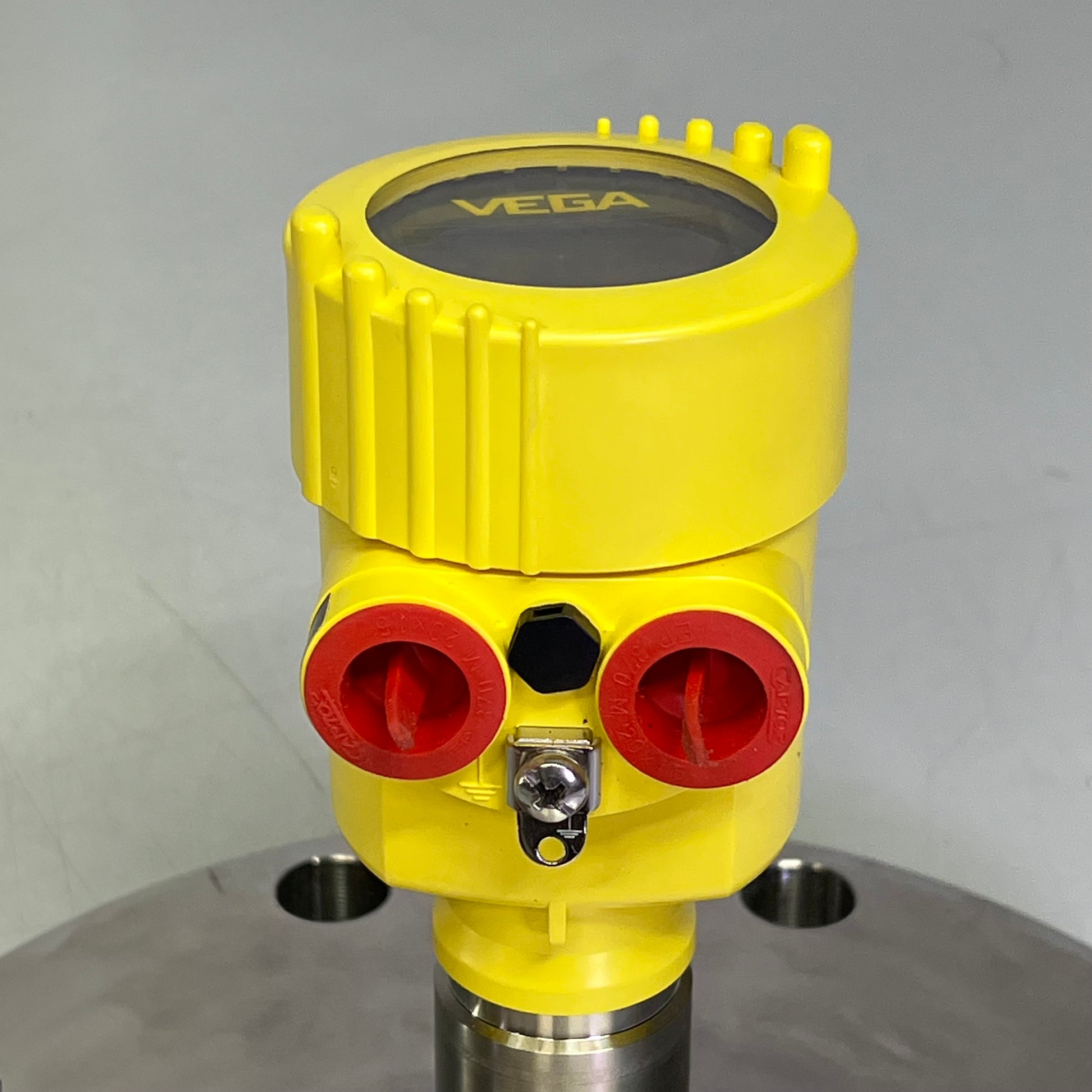

Housing material
|
Plastic
|
|
Aluminium
|
|
Stainless steel (precision casting)
|
|
Stainless steel (electropolished)
|
|
Protection rating
|
IP66/IP68 (0,2 bar)
|
|
IP66/IP67
|
|
IP66/IP68 (1 bar)
|
|
Output
|

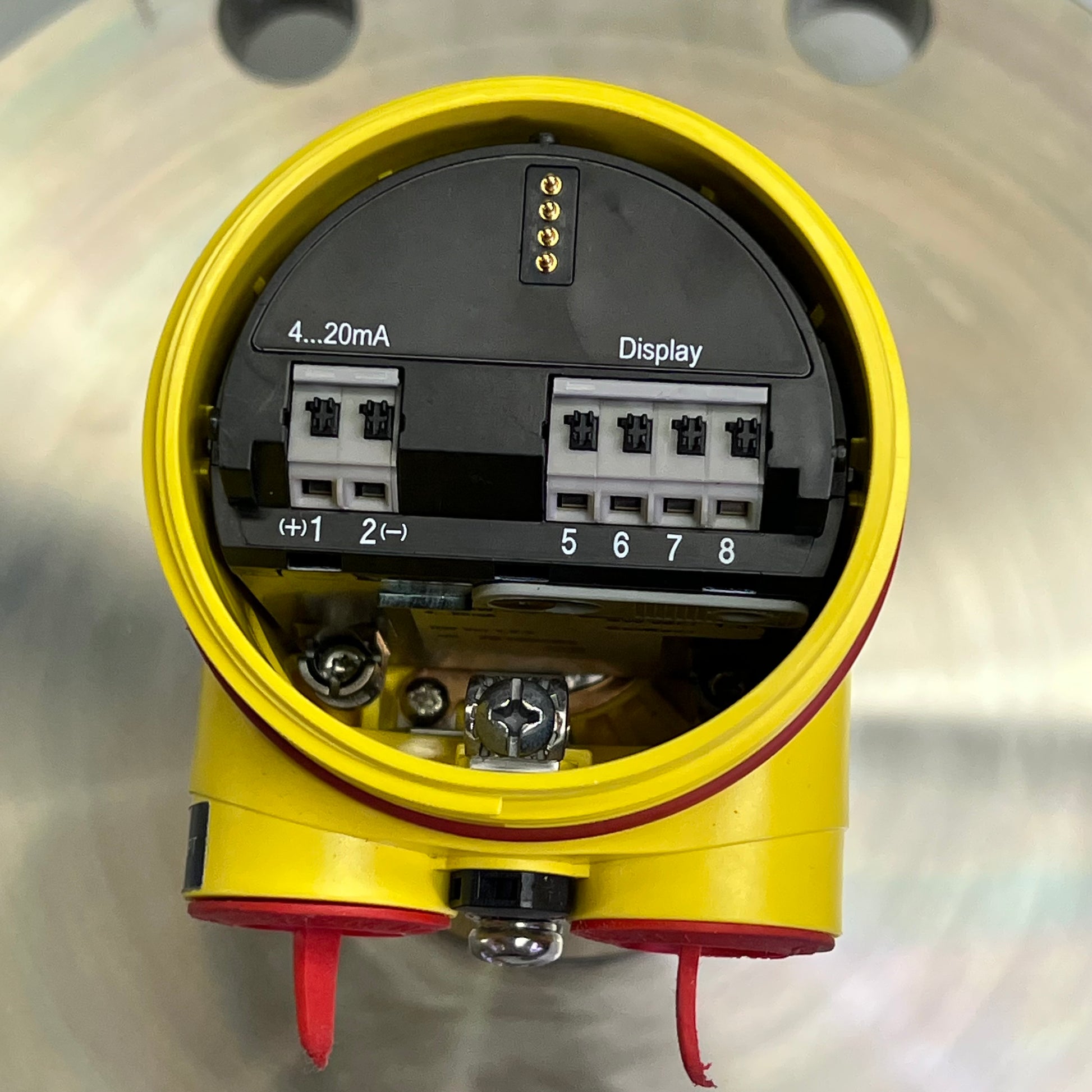

4 … 20 mA/HART - two-wire
|
|
Ambient temperature
|
-40 ... 80 °C
|
