Used in drop cable installations as an attachment to strand for either accepting the bail of drop wire clamps, or for wrapping the support wire of drop cable.
-

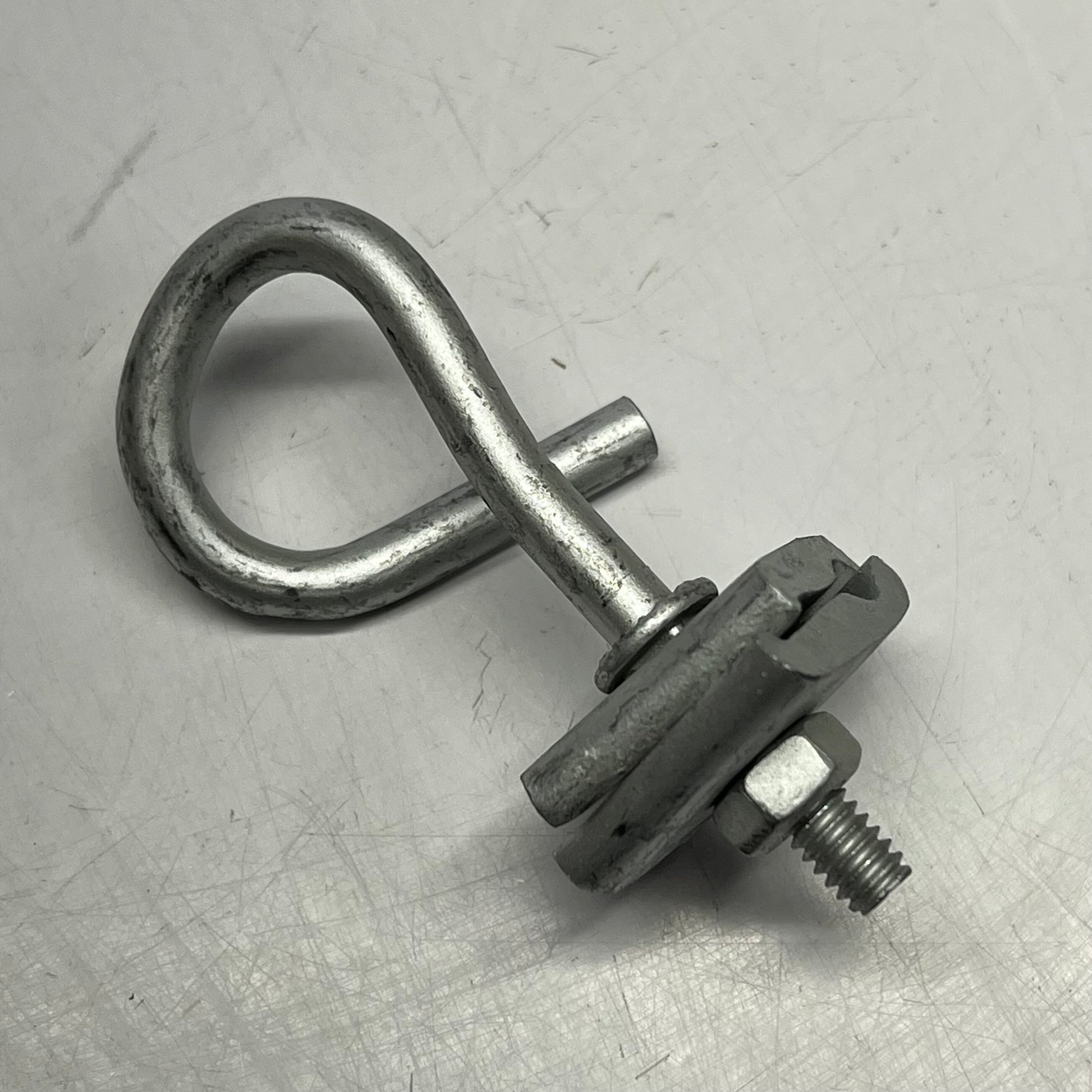

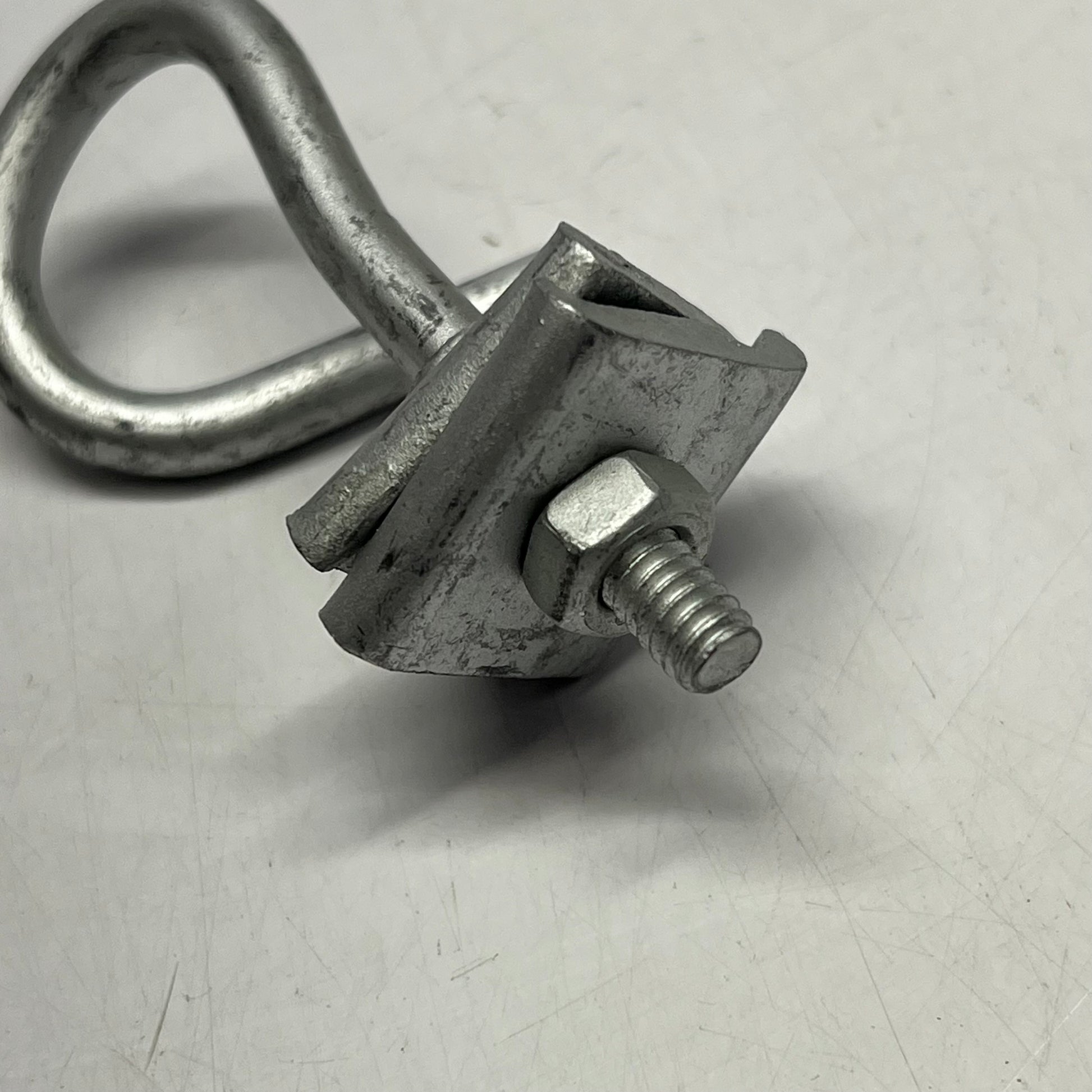

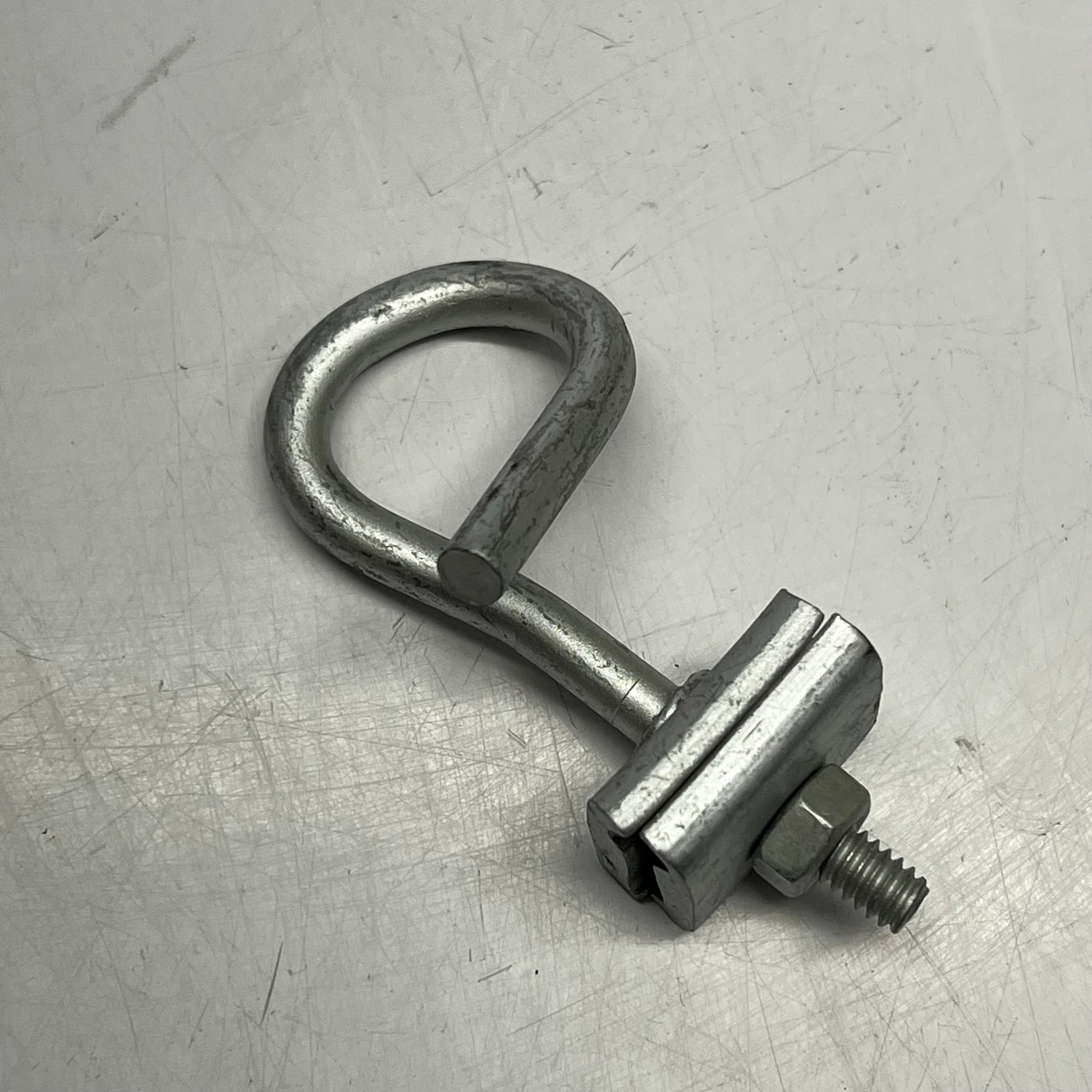

Clamp consists of a set of steel jaws, a 1/4" diameter “pig-tail” shaped bolt, and a hex nut.
-
The jaws are rolled and stamped from AISI 1018 tempered steel.
-
The bolt and hex nut are formed from Grade 2 Steel.
-
Nut and bolt are hot dip galvanized to meet ASTM Specification A153, Class B3.
-
Jaws are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.
-

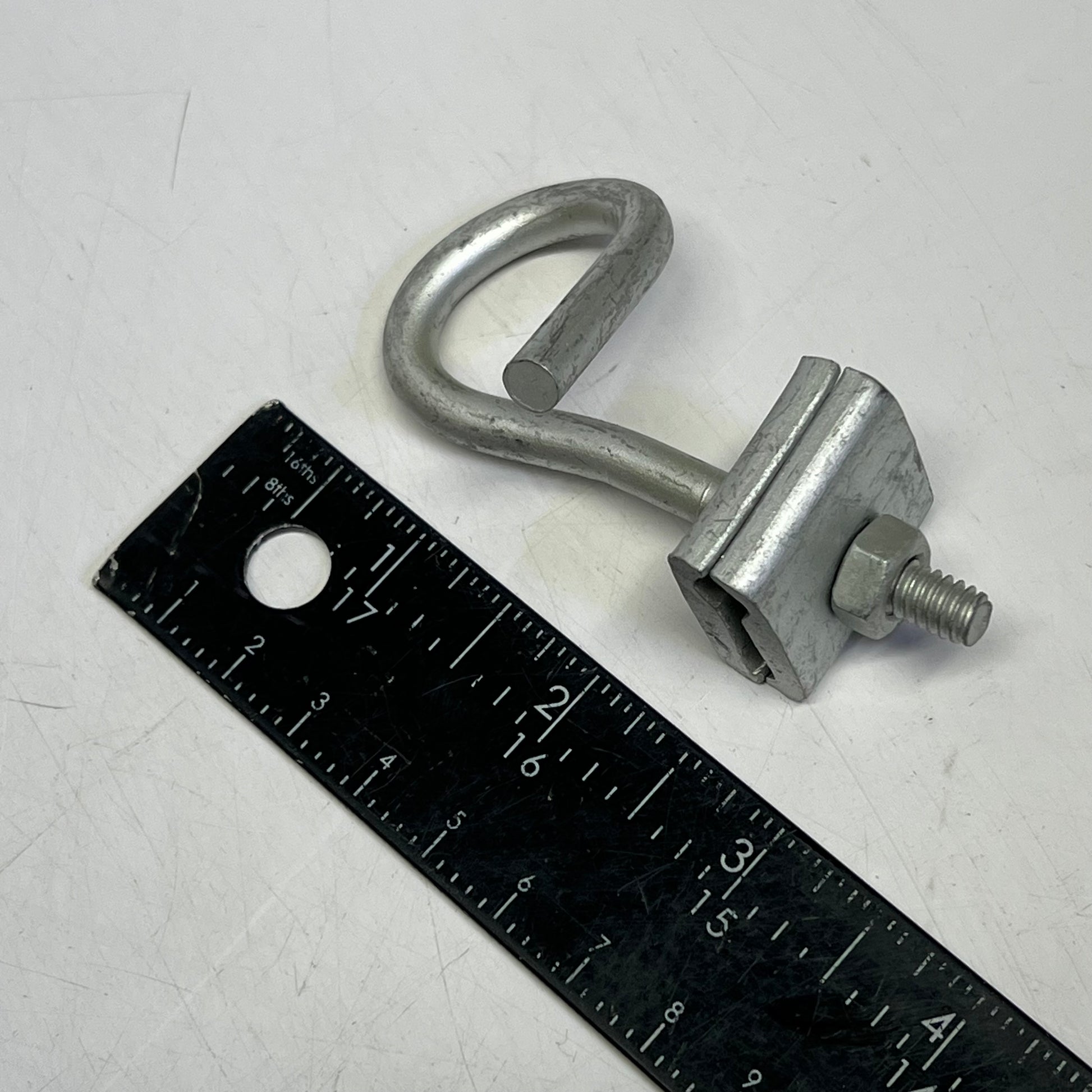

Attaches to strand ranging in size from 1/4" (6.6m) to 7/16"(16m).
|
