INVUE

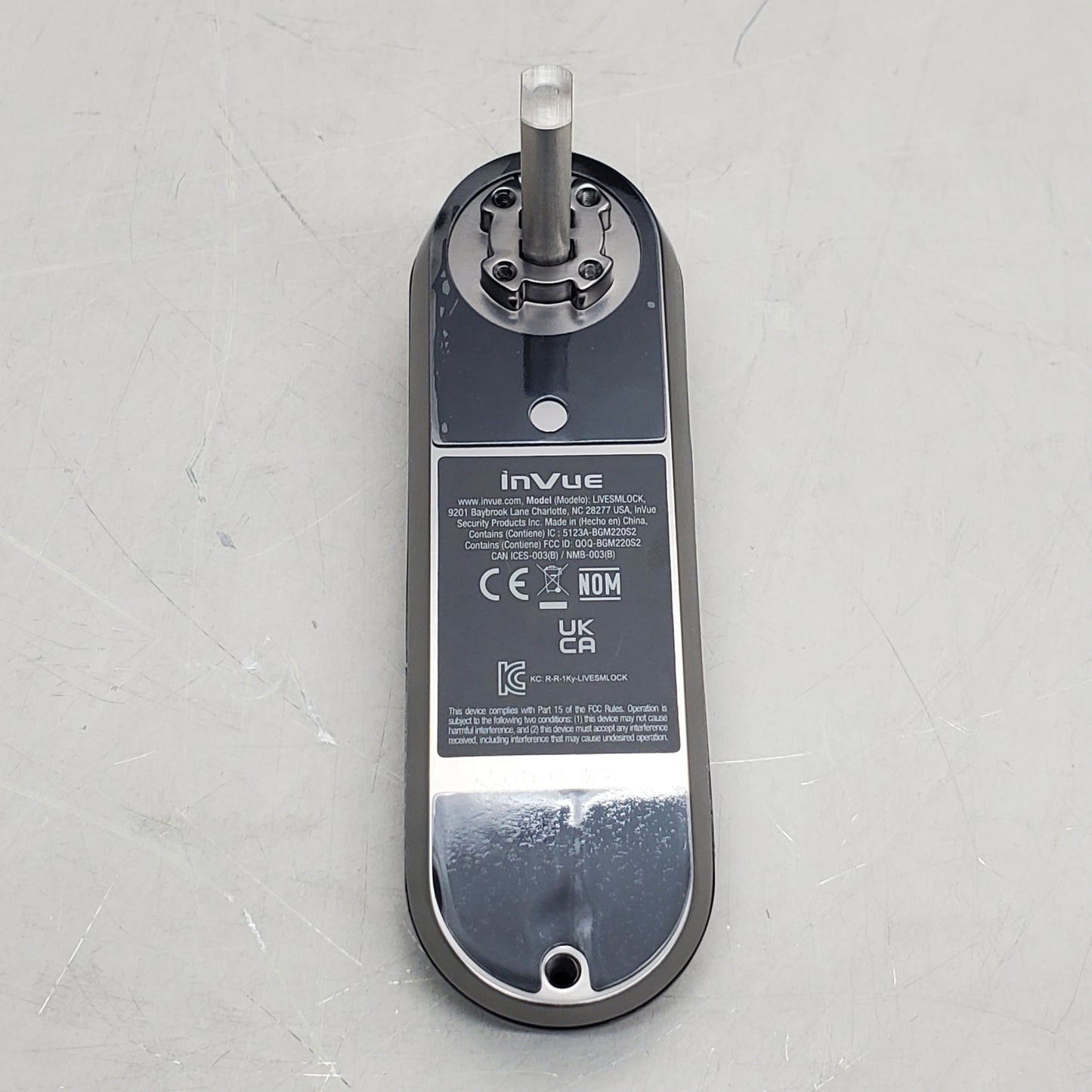

INVUE Plunger Lock Body Live for IR Ecosystem Black LL201A11 LIVESMLOCK

Name: INVUE Plunger Lock Body Live for IR Ecosystem Black LL201A11 LIVESMLOCK
Brand: INVUE
SKU: CWZ532
Price: 53.00 CAD
Availability: InStock

$53.00 CAD

~~$107.00 CAD~~ $53.00 CAD

Sale Sold out

Item standard shipping: $8
Shipping calculated at checkout.

48 Remaining

INVUE

Plunger Lock Body Live for IR Ecosystem

Condition: New

Color: Black

MPN/Model: LL201A11 / LIVESMLOCK

The InVue LL201A11 (often referred to interchangeably with the LL201 series) is a specific black-finish LIVE Plunger Lock designed for the InVue IR Ecosystem. It is the upgraded "LIVE" version of the standard plunger lock, adding mobile connectivity to the traditional IR key functionality. [1, 2]

Core Functionality

Dual Access: Operates using both the traditional InVue OneKEY (IR technology) and the mKEY (mobile app via NFC/Bluetooth).
Self-Locking: The plunger automatically locks once pushed, ensuring that high-value merchandise is always secured without needing a key to re-lock.
Audit Capabilities: Unlike basic IR locks, the LL201 series tracks which associate accessed the lock and at what time through the LIVE Access Manager.

Comparison: LL201A11 vs. Standard Plunger Locks

IR Ecosystem Plunger Lock	LIVE Plunger Lock (LL201A11)
Power Source Power transferred from the OneKEY [1]	Power Source Internal 2-year battery [1, 2]
Mobile App Not Compatible	Mobile App Compatible via NFC/Bluetooth [1, 2, 3]
Data Tracking Limited to key-side logs	Data Tracking Real-time "LIVE" audit data [1]
Maintenance Zero maintenance (no battery) [1, 2]	Maintenance Requires battery replacement [1]

Technical Specs for LL201A11

Finish: Black (denoted by the "B" or "A11" suffix in commercial catalogs).
Orientation: 180-degree reversible for front-left or front-right panel installation.
Installation Requirement: Requires a 22mm (0.87") pre-drilled hole in the sliding door.
Connectivity: Integrated NFC, Bluetooth, and a 2D barcode for mobile scanning.
