Trackwell Systems Integrated Server Single Slot Mini Chassis

Condition: New Other - Without Box

Size: 1-3/4"x10.5"x15"

MPN/Model: T-XR4000

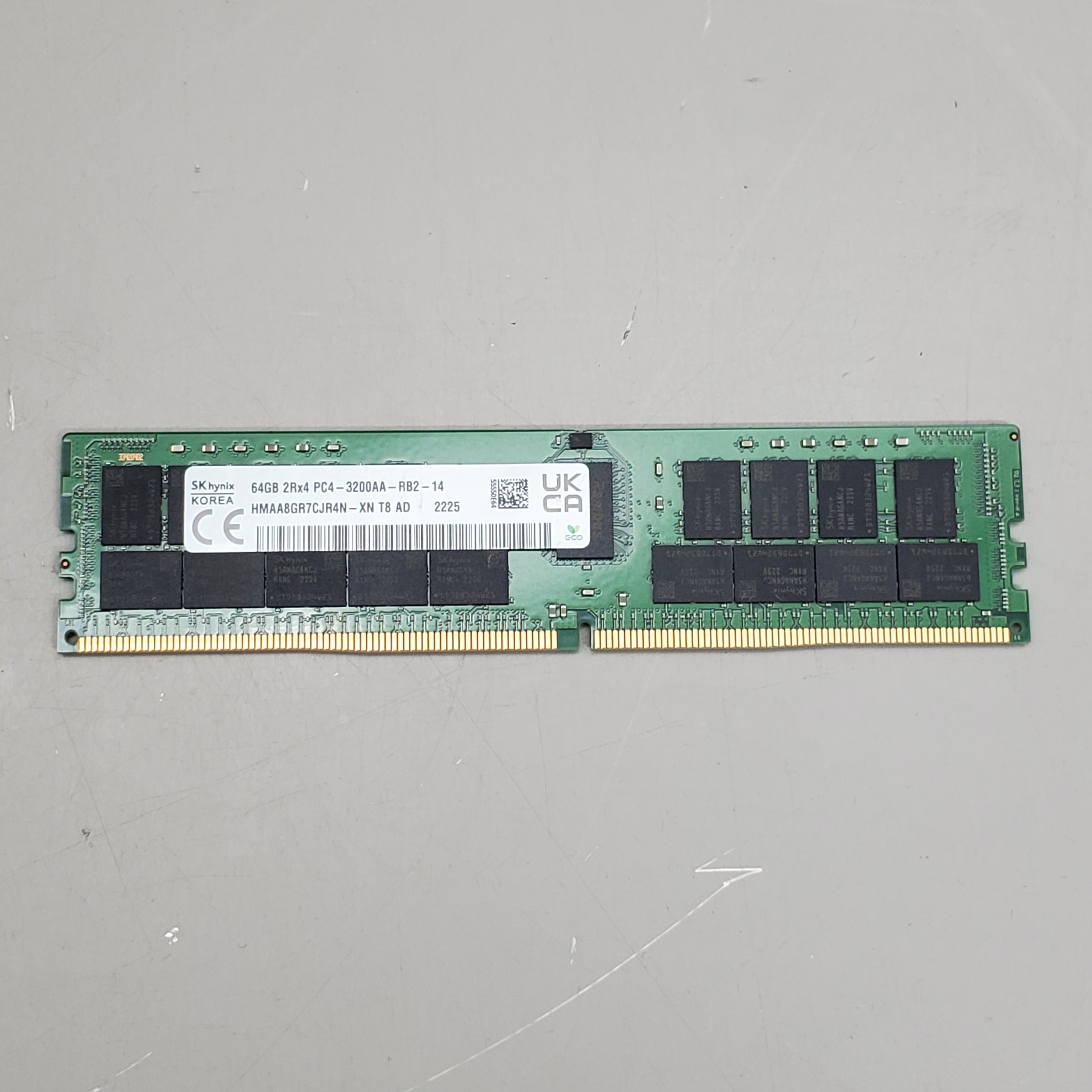

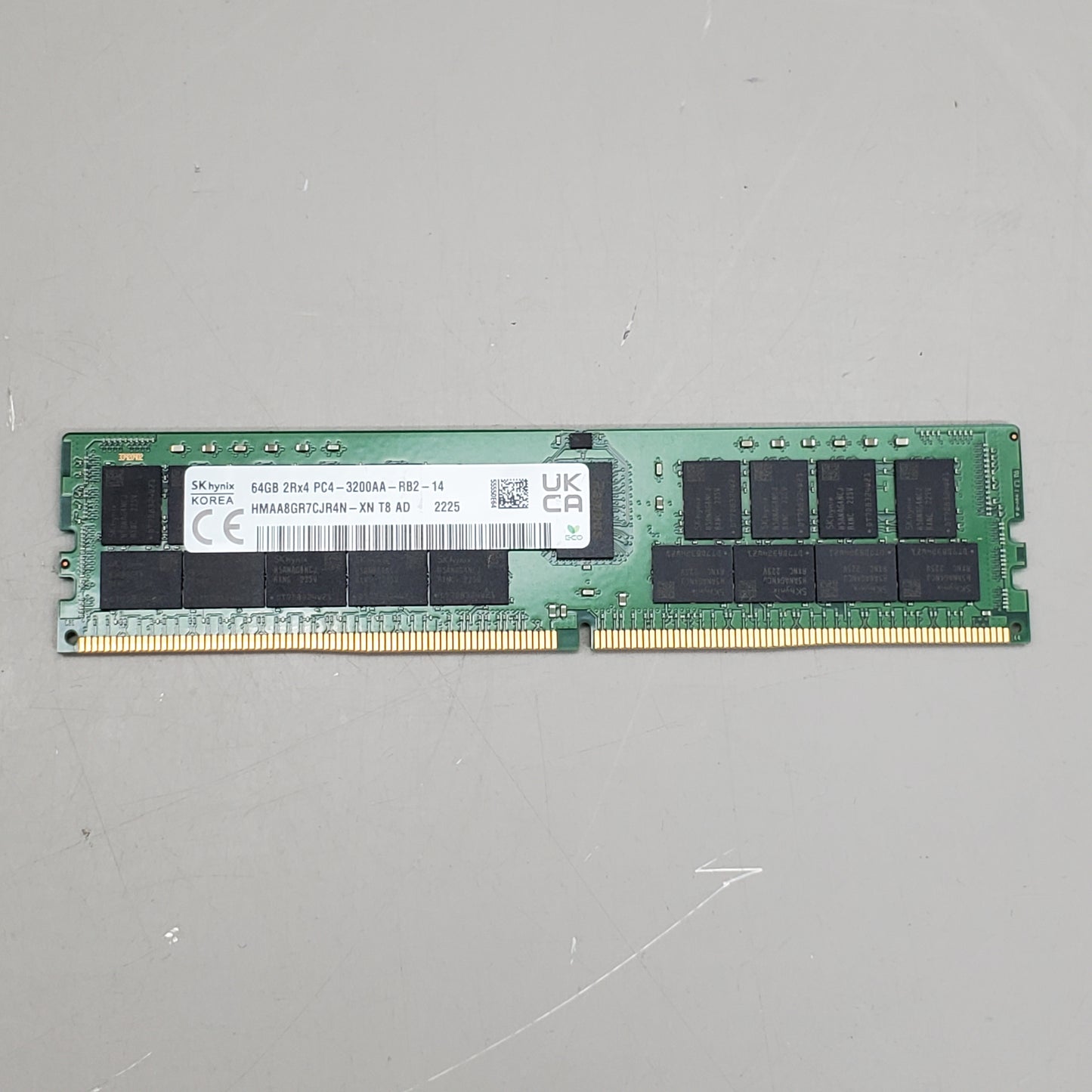

RAM: 4 @ 64GB DDR4 2RX4 PC4-3200AA-RB2-14 HMAA8GR7CJR4N-XN

The Tracewell T-XR4000-1 (single slot ‘mini’ chassis)
Specifications Summary
The Tracewell T-XR4000-1 (single slot ‘mini’ chassis) accepts standard Dell hardware configurations.
STANDARD DELL POWEREDGE XR4000 PRODUCT CONFIGURATIONS
PROCESSOR TYPE Dell XR4510c (1U): 3rd Generation Intel Xeon D Scalable processor.
MEMORY ARCHITECTURE Dell XR4510c: 4 DDR4 DIMM slots, supports up to 3200 MT/s RDIMM / LRDIMM,
512GB Max DDR4.
STORAGE Dell XR4510c (1U): Supports Boot Optimized Storage Subsystem (BOSS-N1); 2x M.2 SSDs as an
internal boot, supports up to 4x M.2 SSDs (M.2 2280 and M.2 22110) installed on M.2 riser module.
RAID CONTROLLER None supported.
VIDEO Dell XR4510c: Integrated Matrox G2000 graphics controller embedded in the iDRAC (BMC) chip
with 16 MB of video frame buffer.
PCIe SLOTS None supported.
NETWORK Dell XR4510c (1U): 4x 10GbE or 4x 25 GbE LOM, 1x 1GbE management port.
SYSTEM MANAGEMENT Dell XR4510c: Supports one RJ45 with port status LEDs for iDRAC remote management
(dedicated port only).

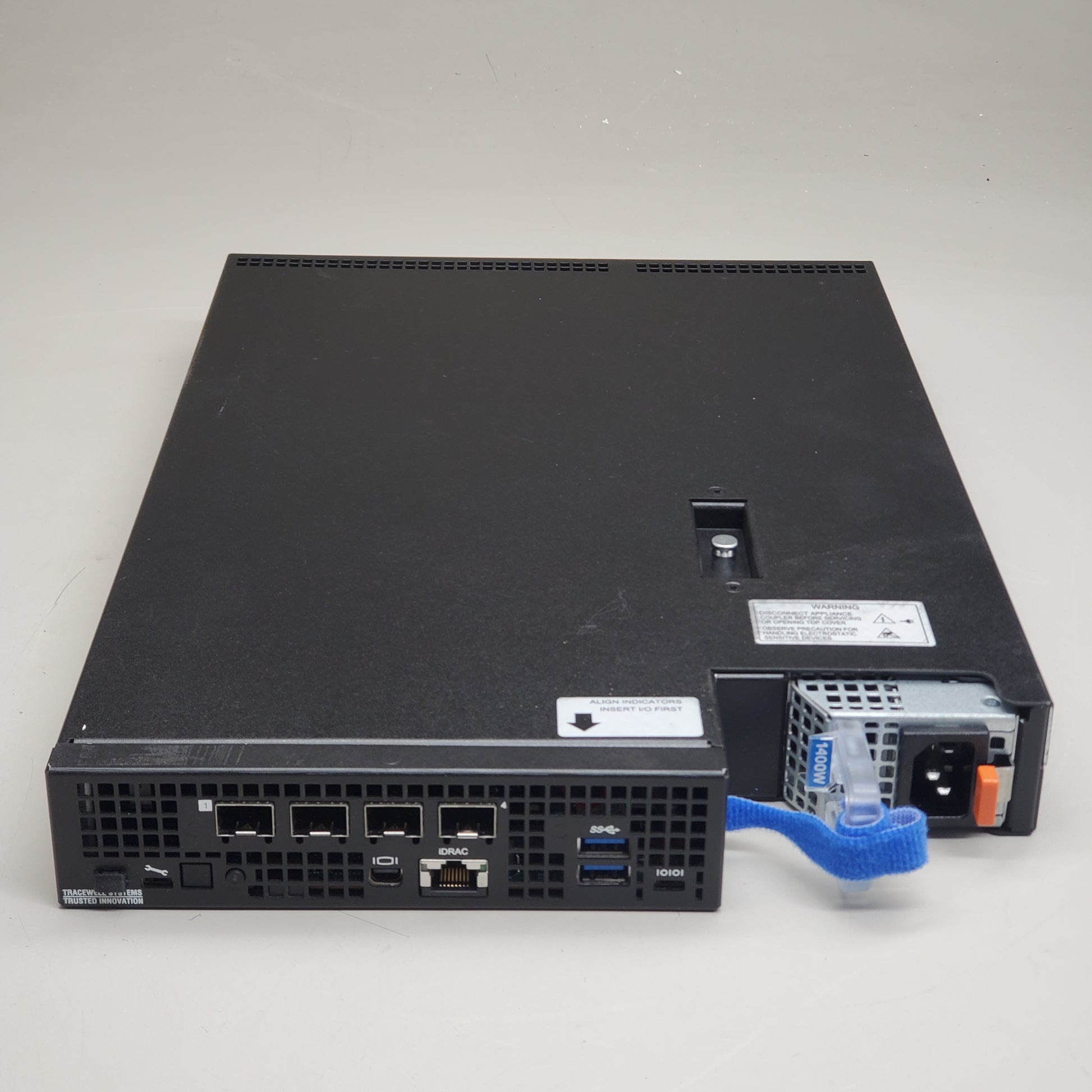

ACCESSIBLE I/O Dell XR4510c (1U): One nine-pin USB 3.0 port to connect USB devices.
4x 10Gbe (max 50Gb). 4x 25Gbe (max 100Gb).
2x USB 3.0
1x Micro-AB USB 2.0-compliant port for iDRAC Direct.
1x Micro-USB UART port.
One mini display port to connect a display device.
One RJ-45 iDRAC remote management (dedicated port only).
1x USB 3.0 (internal).
Power On Button, front of chassis.

The Tracewell T-XR4000-1 (single slot ‘mini’ chassis)
Specifications Summary
The Tracewell T-XR4000-1 (single slot ‘mini’ chassis) accepts standard Dell hardware configurations.
Tracewell Systems
Product Configurations
POWER SUPPLY One power supply supported. Available in 1800W, 1400W, 1100W Mixed Mode AC, or 1100W DC.
High-line AC operation up to 1800W or 1400W (1800W and 14000W).
Low-line AC operation up to 1050W (1400W).
DC operation up to 1100W (1100W DC).
Input voltage: 100-240 VAC, -48 (-60) VDC, Maximum inrush current: 6.6 to 12 A (AC), 27 A (DC).
COOLING Dell XR4510c (1U): 3 standard cable fans per node
ENVIRONMENTAL Normal operating temp: -5°C to 55°C with startup of 0°C (23°F to 131°F) with some restrictions.
Storage temp: -40°C to 85°C (-40°F to 185°F).
CHASSIS CONSTRUCTION High-strength, aluminum low-mass chassis for rigidity with minimum weight.
CHASSIS SLED SLOTS Tracewell T-XR4000-1: Integrated node (embedded); utilizes a Dell XR4510c node.
DIMENSIONS T-XR4000-1: 15.0"L x 10.5"W x 1.7"H (1U). Weight: approximately 7.5 lbs.
INSTALLATION AND OPTIONS Designed for benchtop operation.
System includes threaded hard points to support various mounting options.
Compact Airline Transportation Association (ATA) compliant transport case (optional)

Condition: New Other - Without Box

Size: 1-3/4"x10.5"x15"

MPN: T-XR4000
