ebmpapst

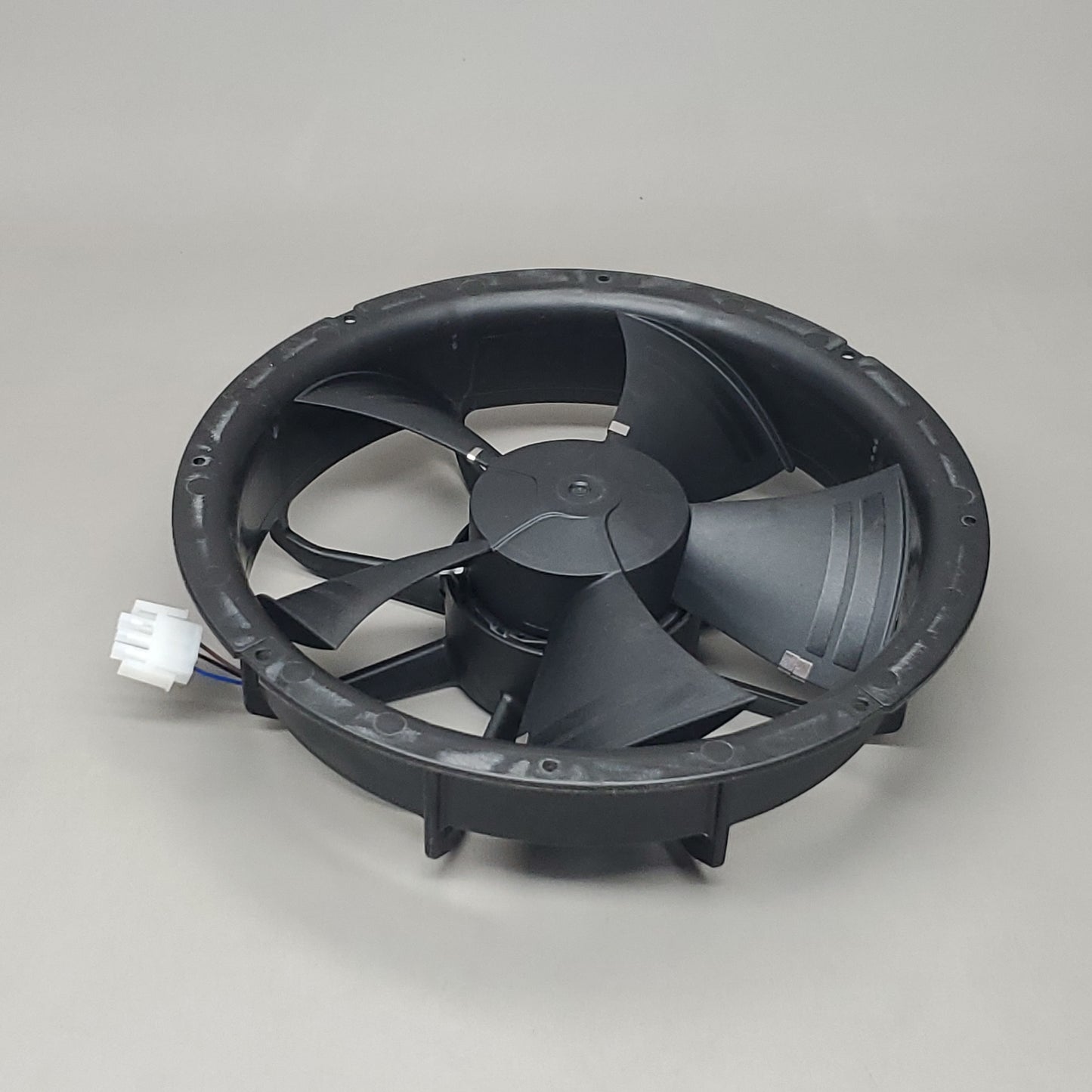

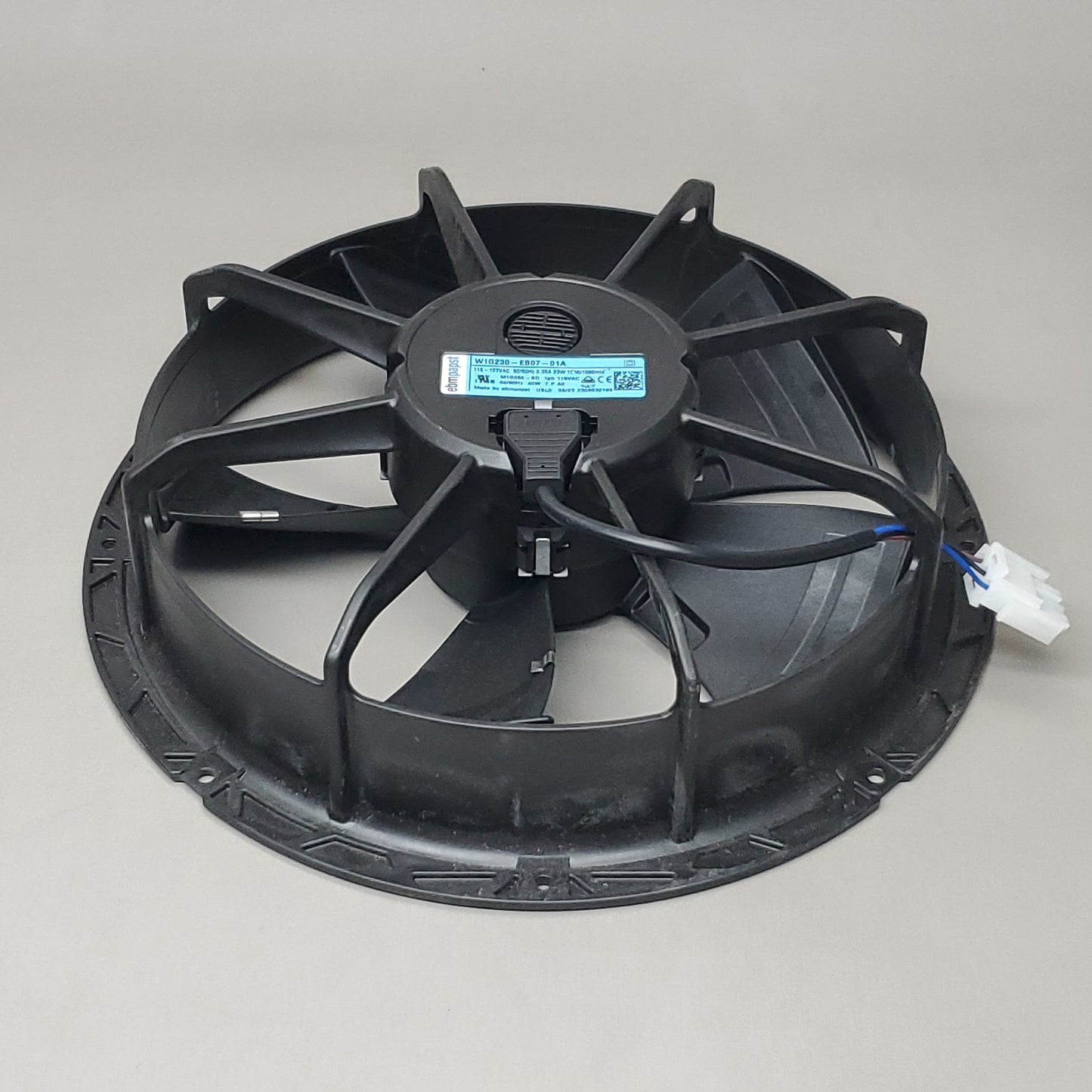

Axial Fan 11-127VAC 50/60hz 23 Watt 1500 RPM

Condition: New

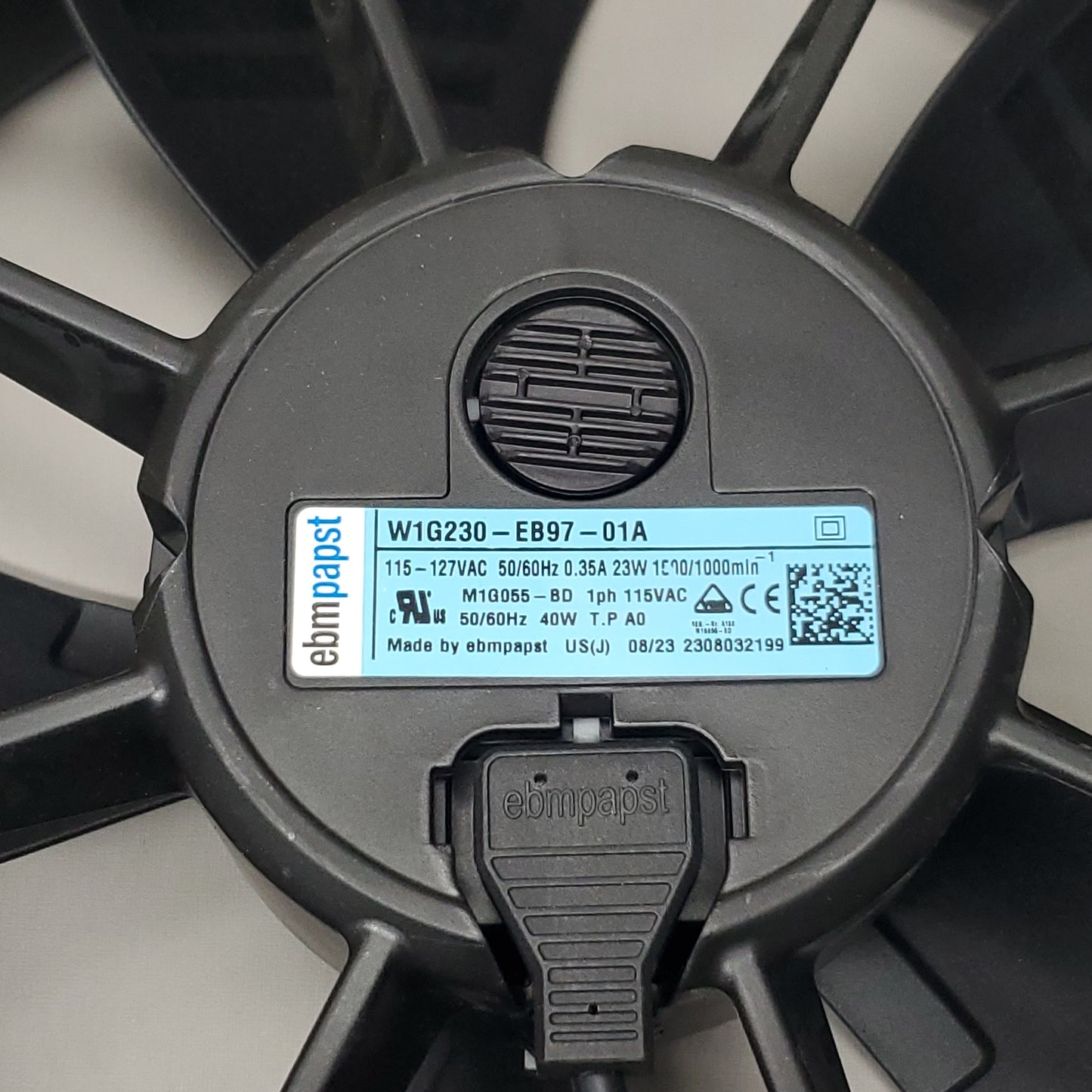

MPN: W1G230-EB97-01A

The device is exclusively designed as a built-in device for conveying air according to its technical data. Any other usage above and beyond this does not conform with the intended purpose and constitutes misuse of the device. Customer equipment must be capable of withstanding the mechanical and thermal stresses that can arise from this product. This applies for the entire service life of the equipment in which this product is installed. Intended use also includes

• Use of the device in stationary systems only.
• Conveying air at an ambient air pressure between 800 mbar and 1050 mbar.

Nominal Data

• Motor M1G055-BD
• Phase 1~ 1~
• Nominal voltage / VAC 115 115
• Frequency / Hz 50/60 50/60
• Method of obtaining data ml
• Speed (rpm) / min-1 1500 1000
• Power consumption / W 23
• Current draw / A 0.35
• Max. back pressure / Pa 36 Min.
• ambient temperature / °C -30 -30
• Max. ambient temperature / °C 50 50

Technical description

Weight 0.9 kg

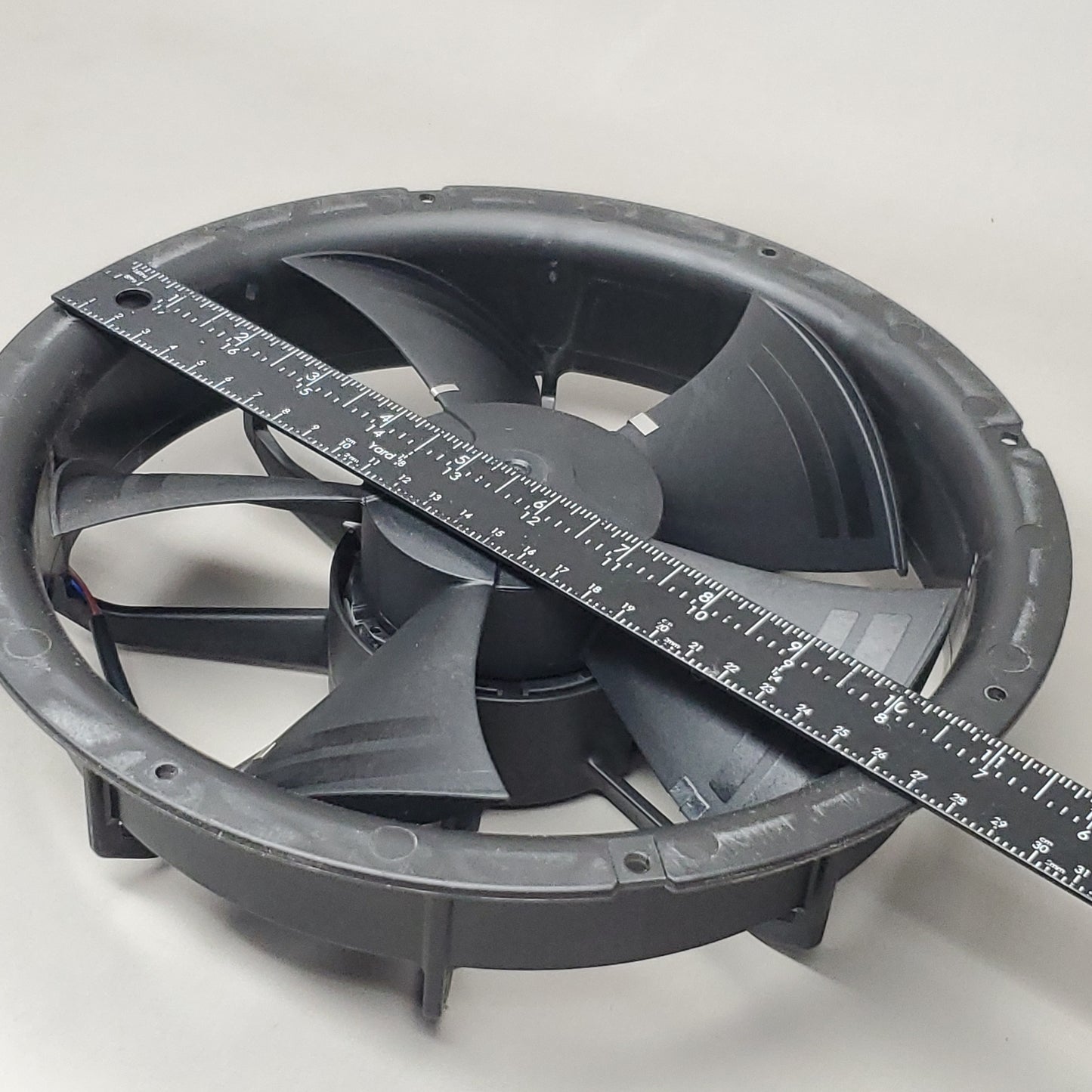

Size 230 mm
Motor size 55
Blade material PA plastic
Fan housing material PP plastic
Number of blades 5
Airflow direction V
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP55
Insulation class "B"
Moisture (F) /
Environmental (H)
protection class
H1+
Installation position Any
Condensation
drainage holes
None
Mode S1
Motor bearing Ball bearing
Technical features - Speed selection max./min.
- ESM+ expandable with plug-in
module
- Soft start
- Thermal overload protection for motor
Speed levels 2
Motor protection Thermal overload protector (TOP)
internally connected

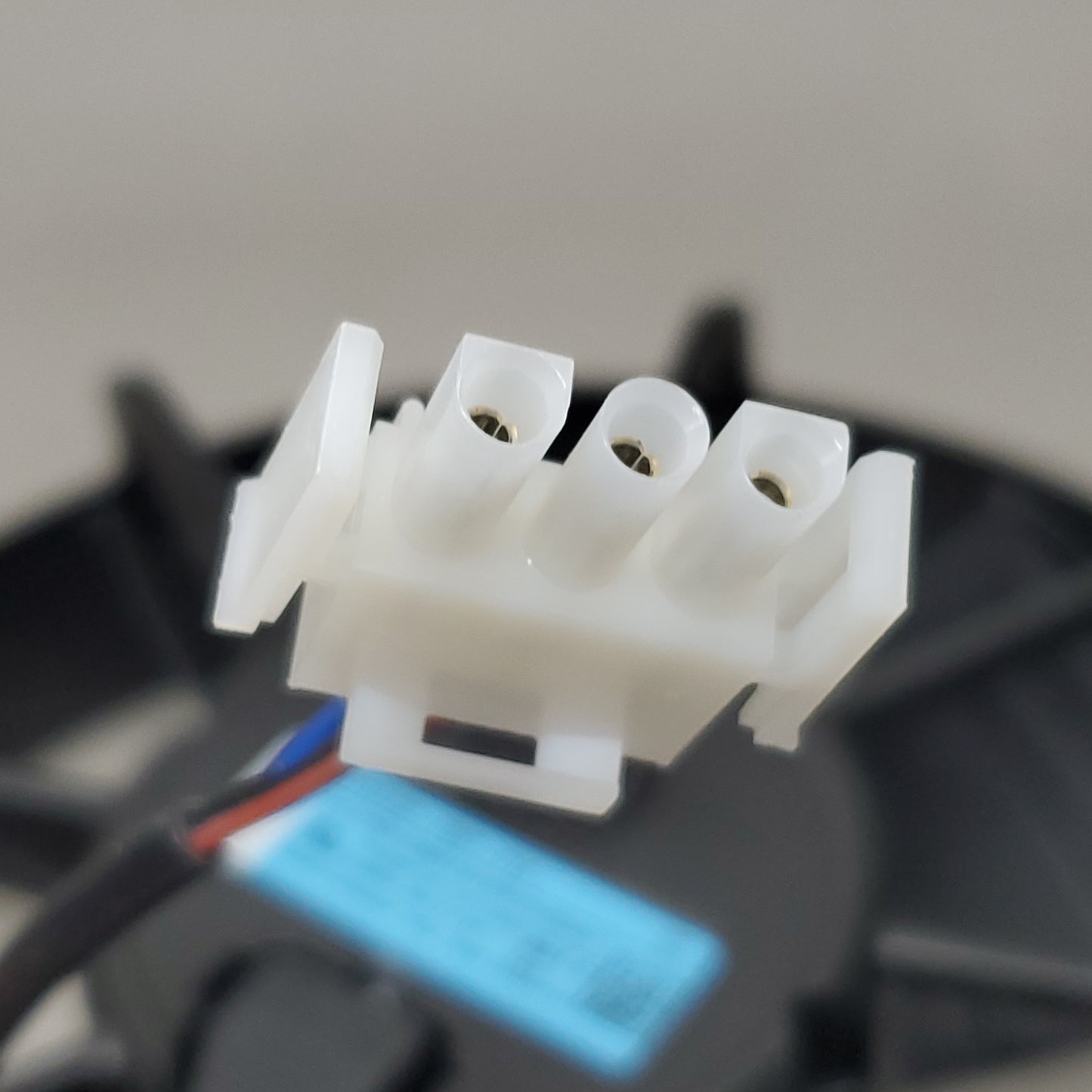

with cable Lateral
Protection class II
Conformity with
standards
EN 60335-1; EN 60335-2-24; EN 60335-
2-80; EN 60335-2-89; CE
Approval EAC; UL 1004-3; CSA C22.2 No. 77;
VDE
