LG Electronics

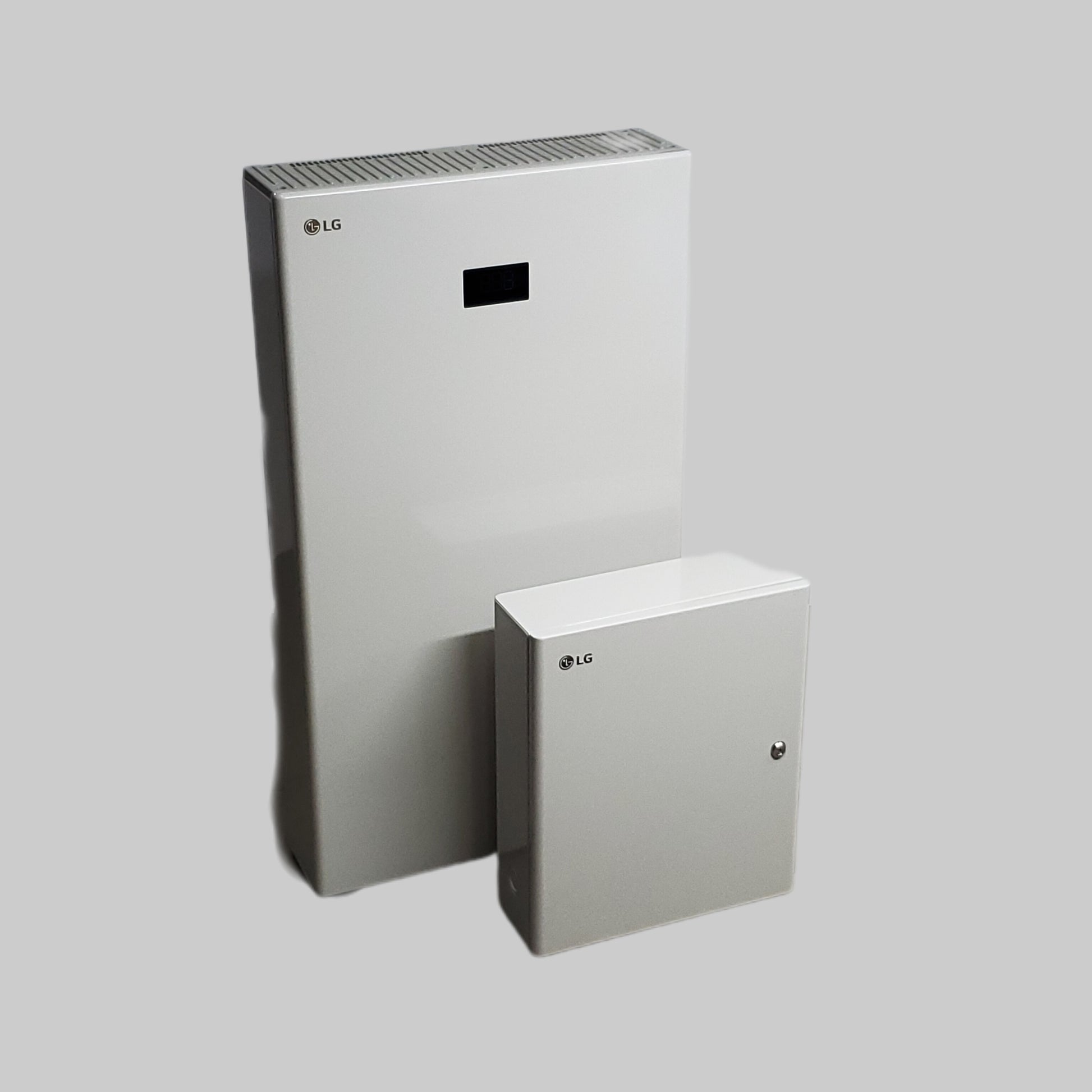

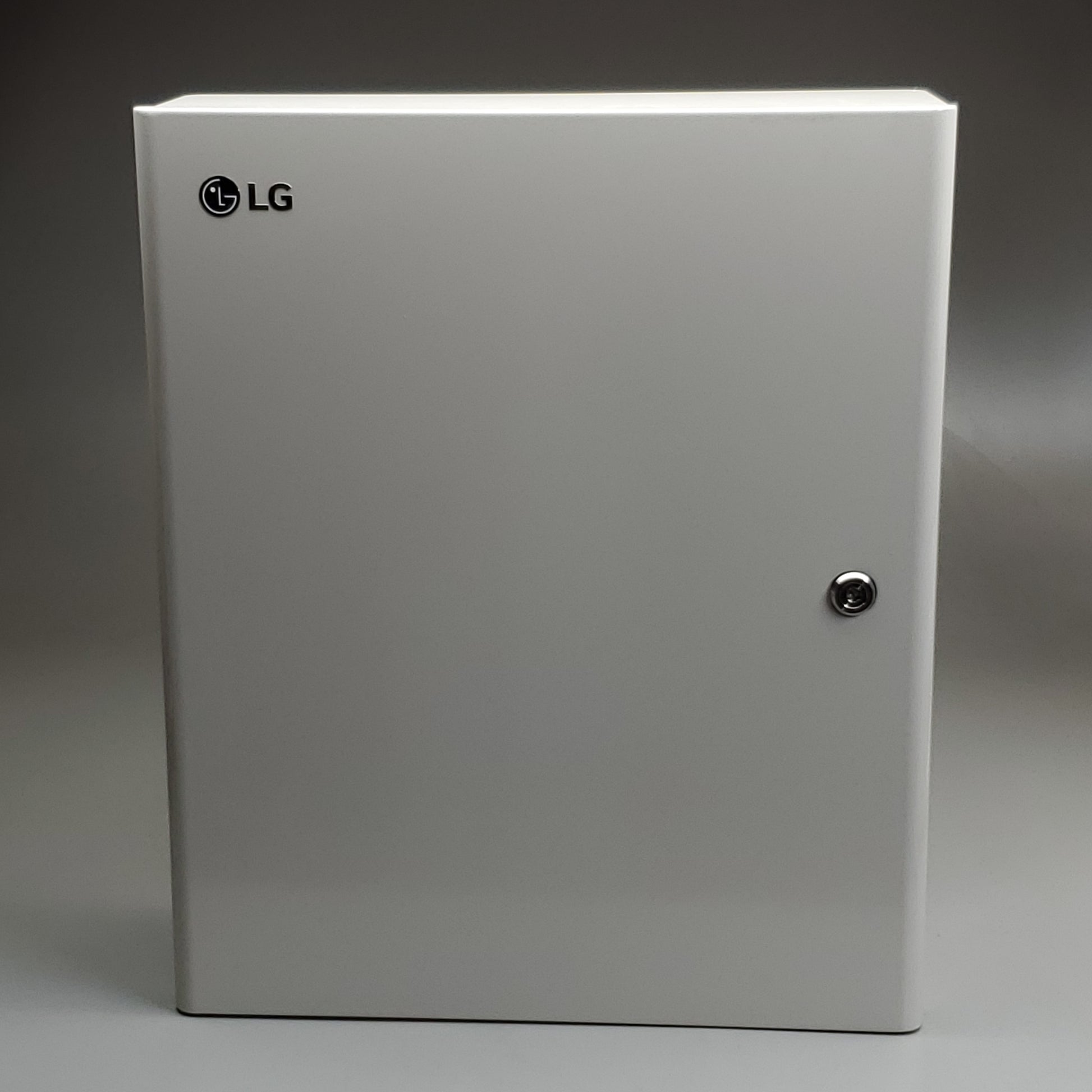

ESS Home Smart Energy Box No Batteries
Condition: Pre-Owned Demo Units, in excellent condition
Color: White
Model: RBA008K0A00

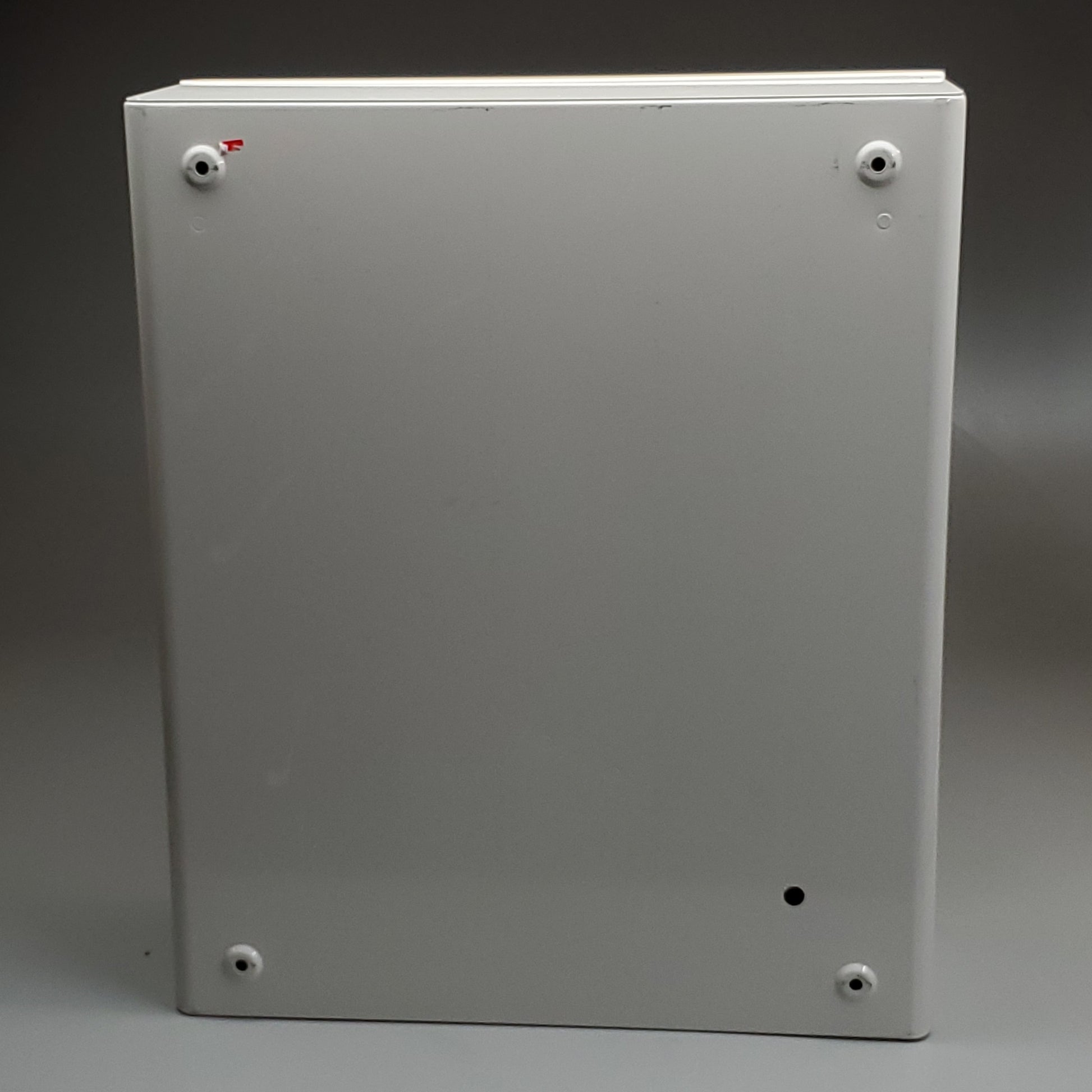

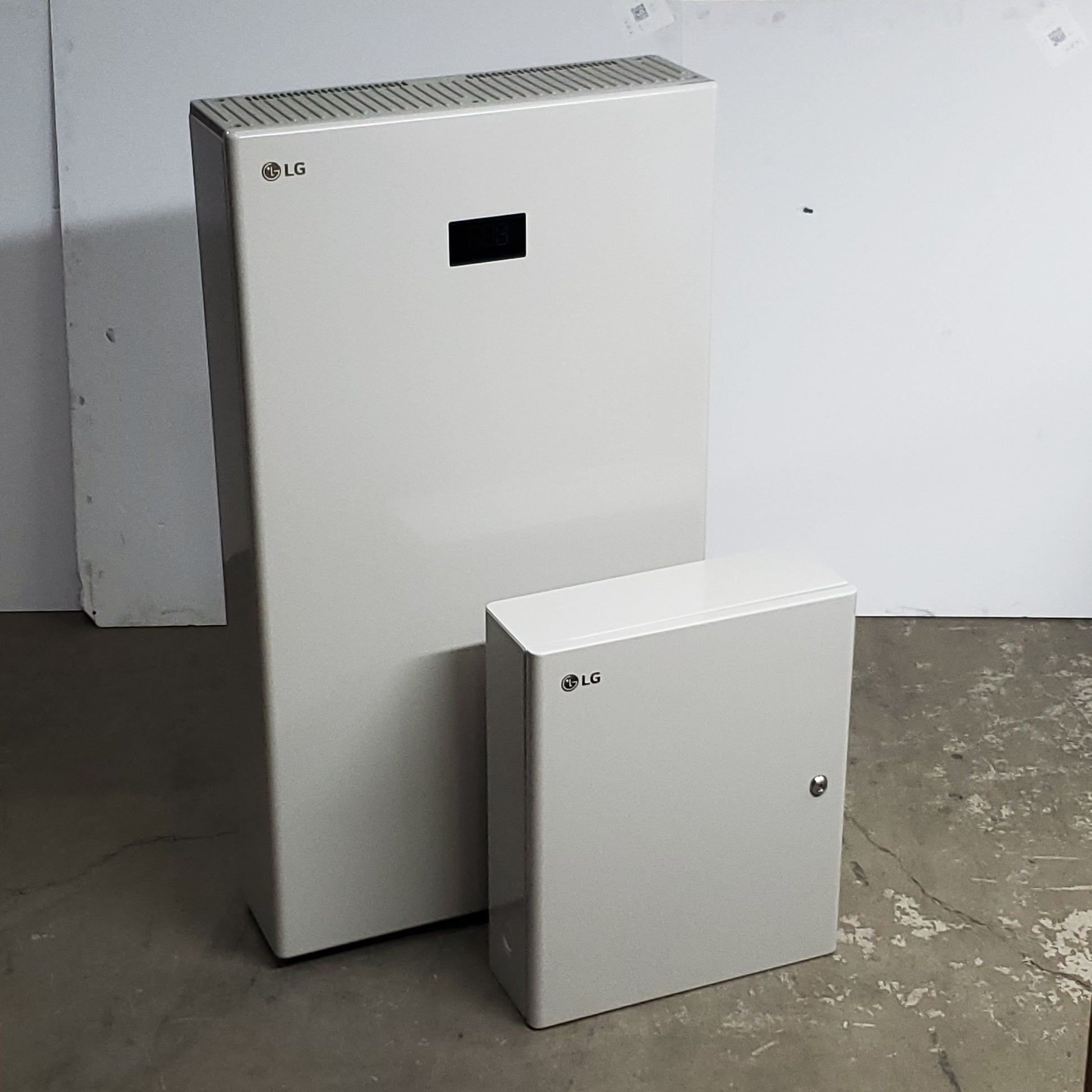

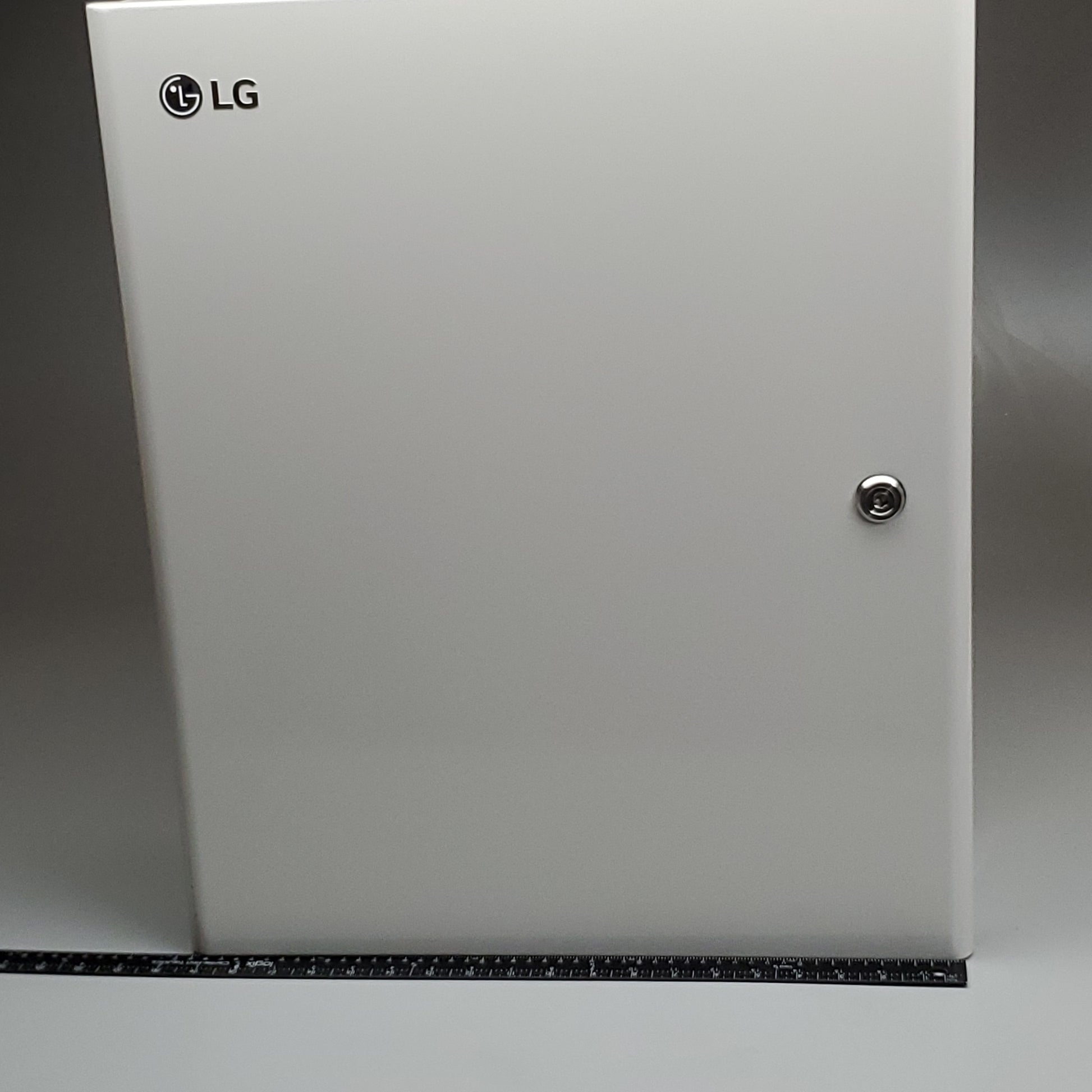

Contents Include: (see images, nothing else is included)
Smart Energy Box Details
After years of providing reliable home appliances and technology, LG ESS Home 8 is here to revolutionize the definition of today’s smart home. With LG ESS you can more sustainably and reliably produce, store, and use your own energy with confidence.
The built-in PMS (Power Management System) in SE Box provides the optimal charging/discharging operation by monitoring the home power usage status, PV power generation, grid power status, consumer electricity plan, and weather forecast. ATS function can be enabled for backup power in the built-in PMS, which can provide automatic seamless transfer switching.

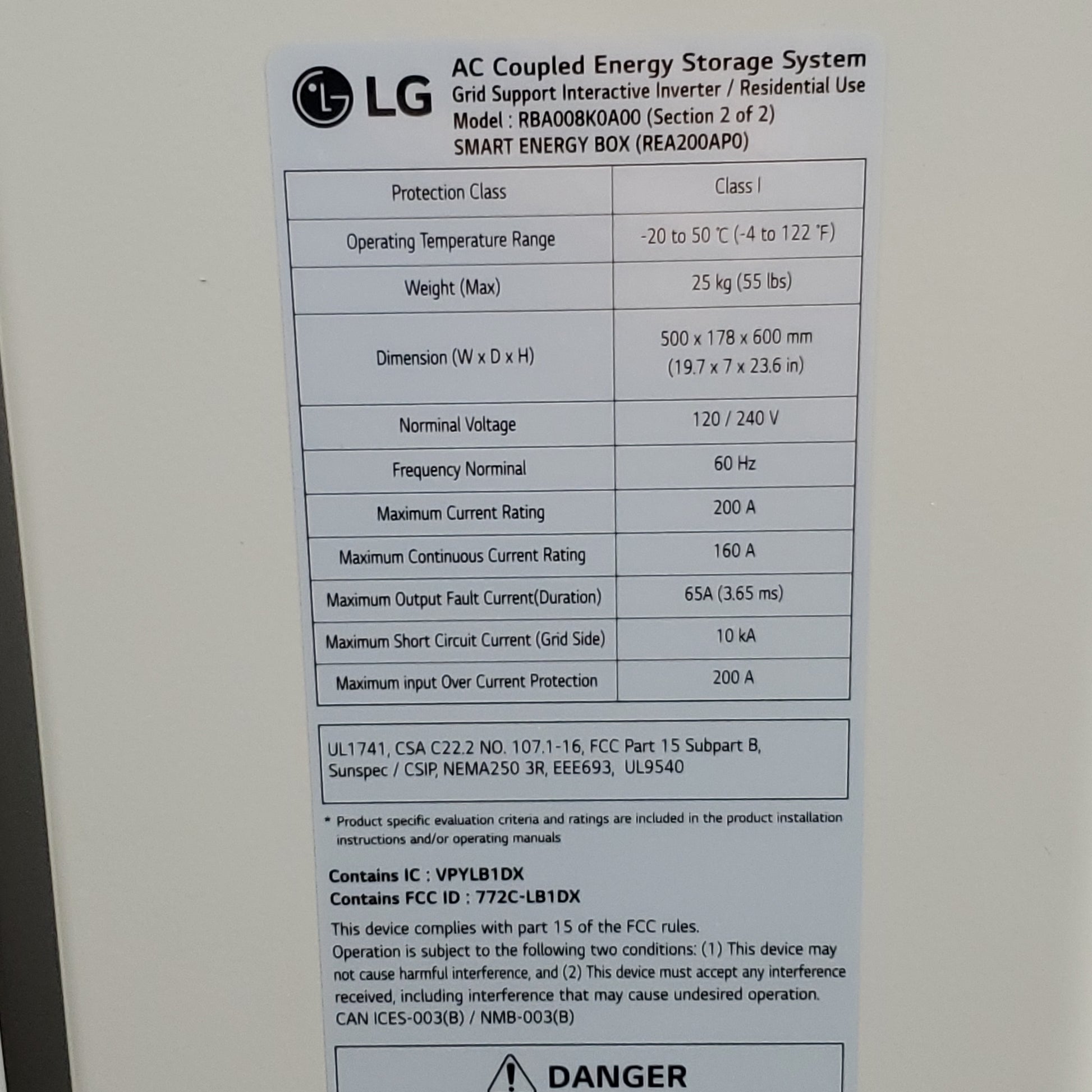

Specifications
Nominal Voltage(L-N/L-L): 120/240 V Split Phase
Max AC Current Rating: 200A
Max continuous AC Current Rating: 160 A
Grid Code: CA Rule21, IEEE2030.5-2018/Sunspec CSIP
Enclosure: NEMA Type 3R

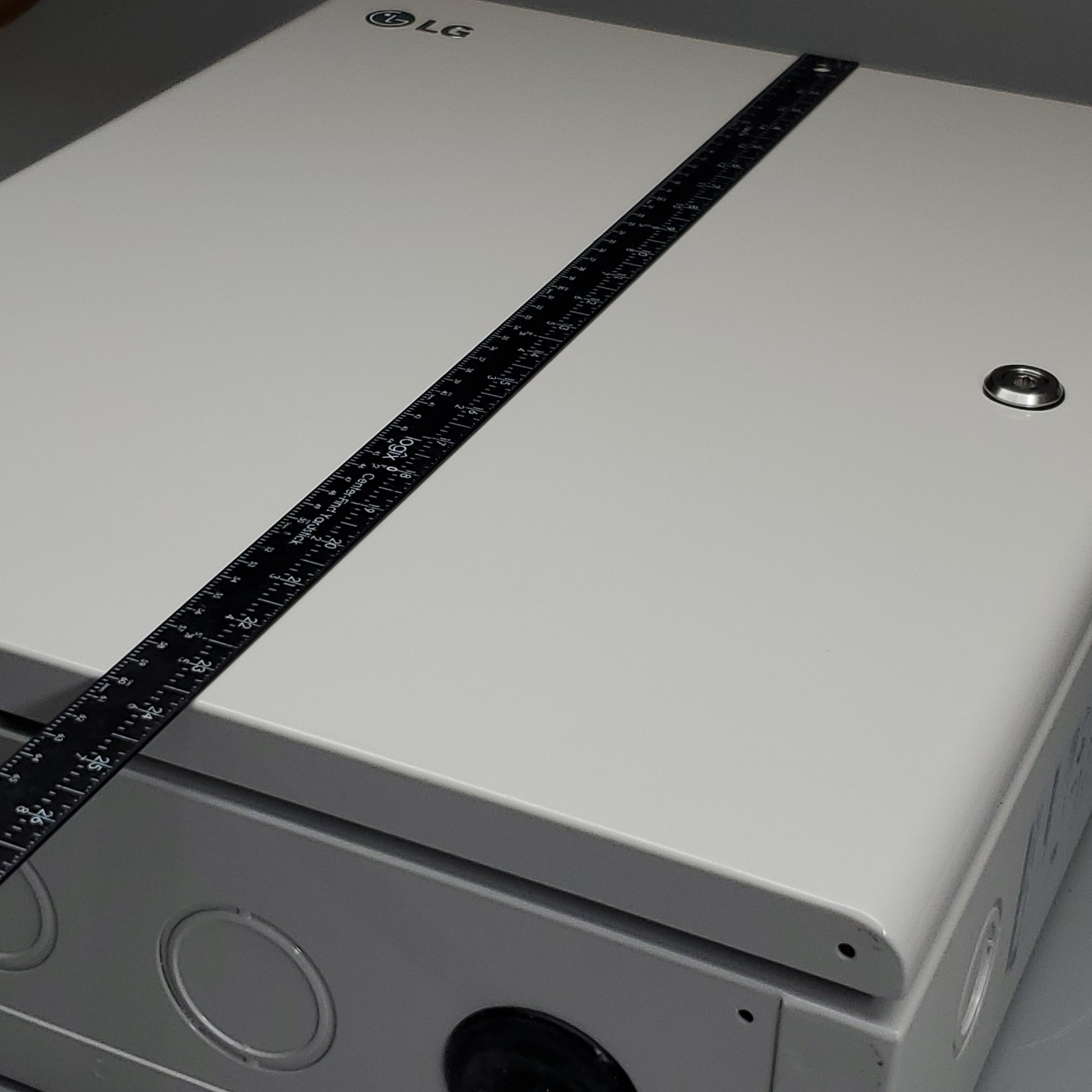

Dimensions(W*H*D): 19.7" x 23.6" x 7.0"
Weight: 55 lb
Features:
Secure & Sustainable:The LG ESS Home 8 eliminates the need for any type of fueled generator with cleaner solar-fed energy, while working to protect against utility outages by providing clean battery backup power
Powerful & Modular:Connect up to four LG ESS Home 8 systems to store and provide up to 57.6 kWh of usable energy.
Built for Ease:The homeowner can easily control and navigate the LG ESS Home 8 system via the LG ThinQ app. For installers, the provided LG Enervu app allows ease of set up and testing without the need for additional equipment.

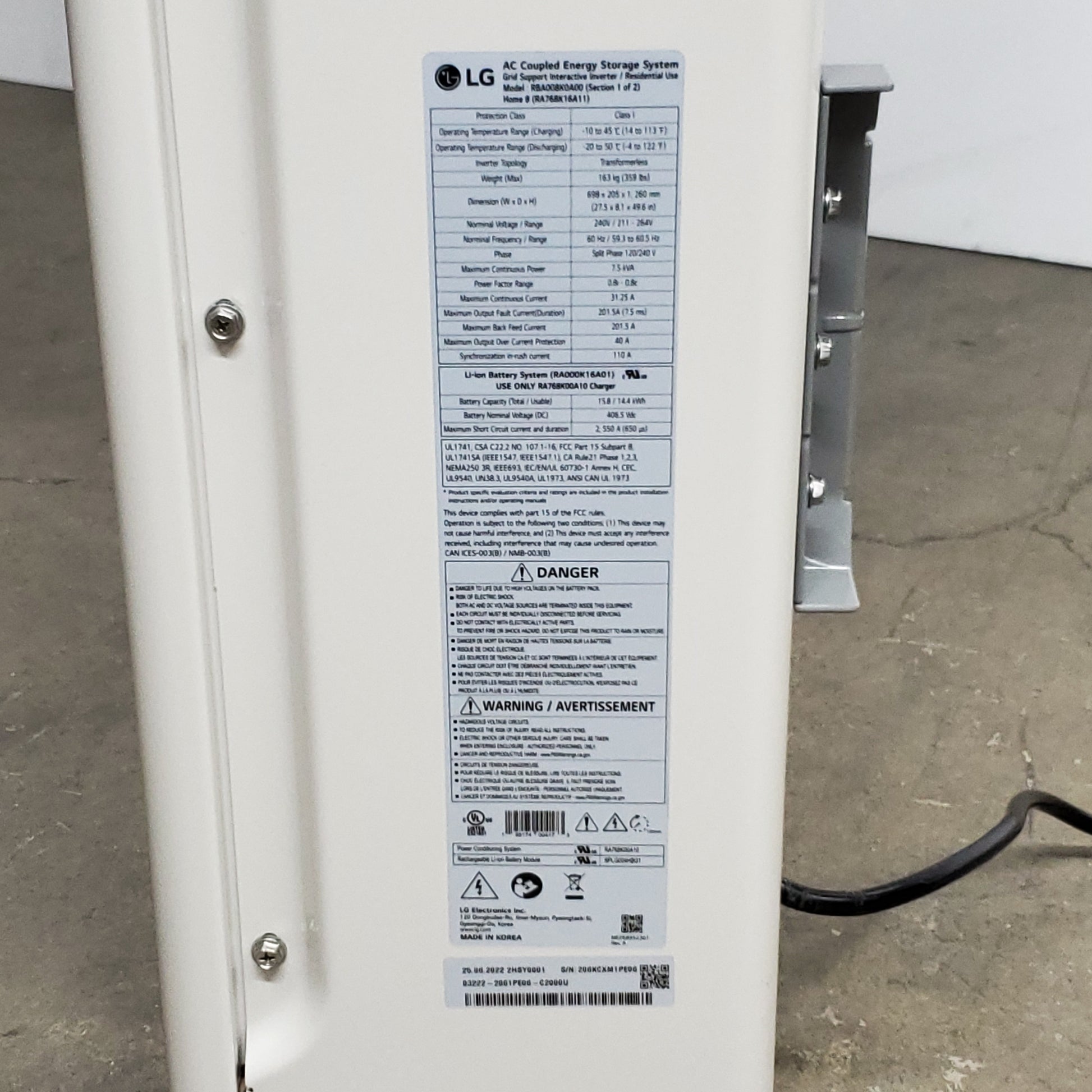

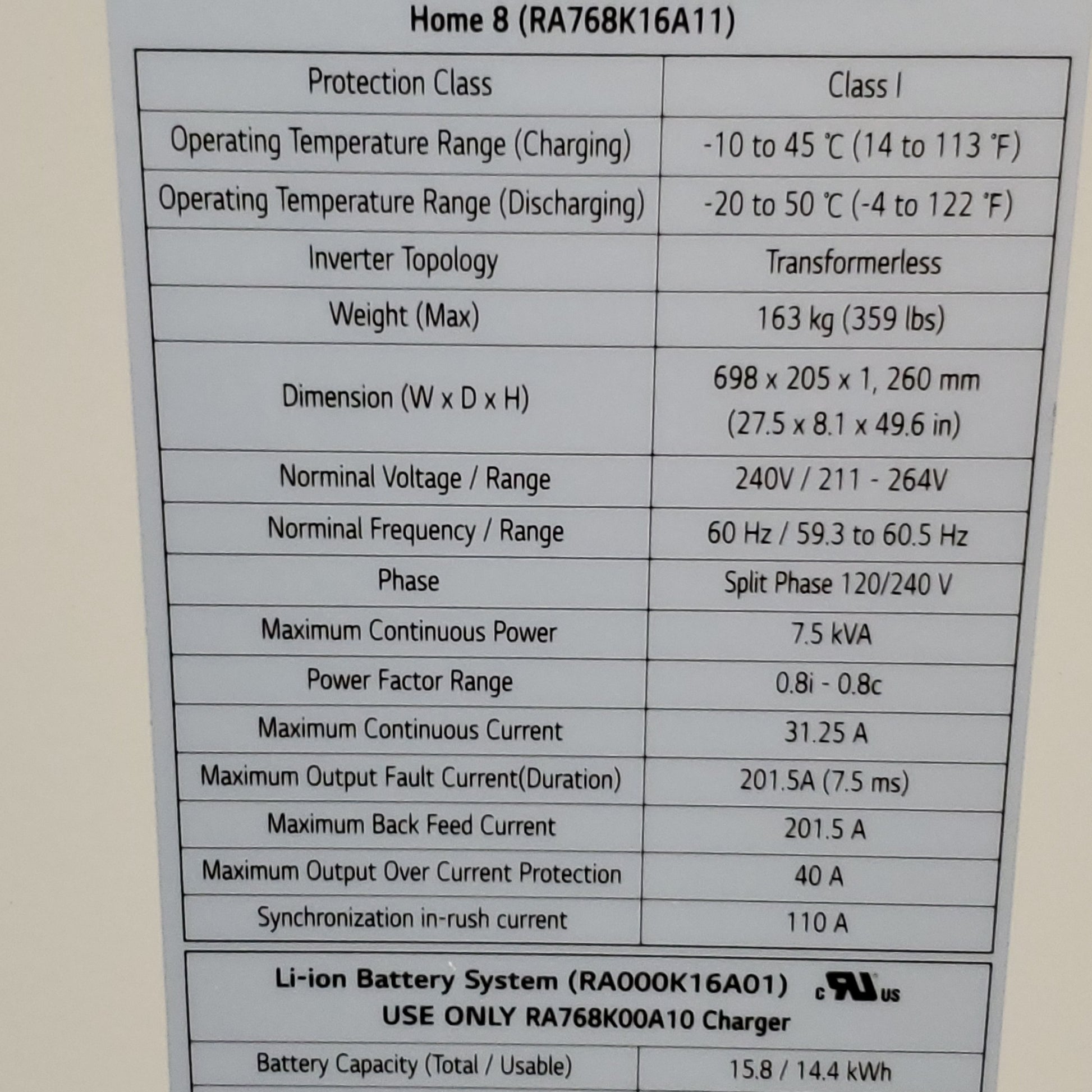

General Specifications
Nominal Voltage: 120/240 V Split Phase
Rated AC Power(Discharging): 7.5 kVA
Rated AC Power(charging): 5.4kVA
Grid Code: IEEE1547, 1547.1, UL1741, UL1741SA, CA RULE21
