SCHNEIDER ELECTRIC
SCHNEIDER ELECTRIC Solid Core Current Transformer HDPM6000 METSEHDPM250A2T12
SCHNEIDER ELECTRIC Solid Core Current Transformer HDPM6000 METSEHDPM250A2T12
Regular price
€129,95 EUR
Regular price
Sale price
€129,95 EUR
Quantity
36 Remaining
Couldn't load pickup availability
SCHNEIDER ELECTRIC
Solid Core Current Transformer HDPM6000
Condition: New
MPN/Model: METSEHDPM250A2T12
Description:

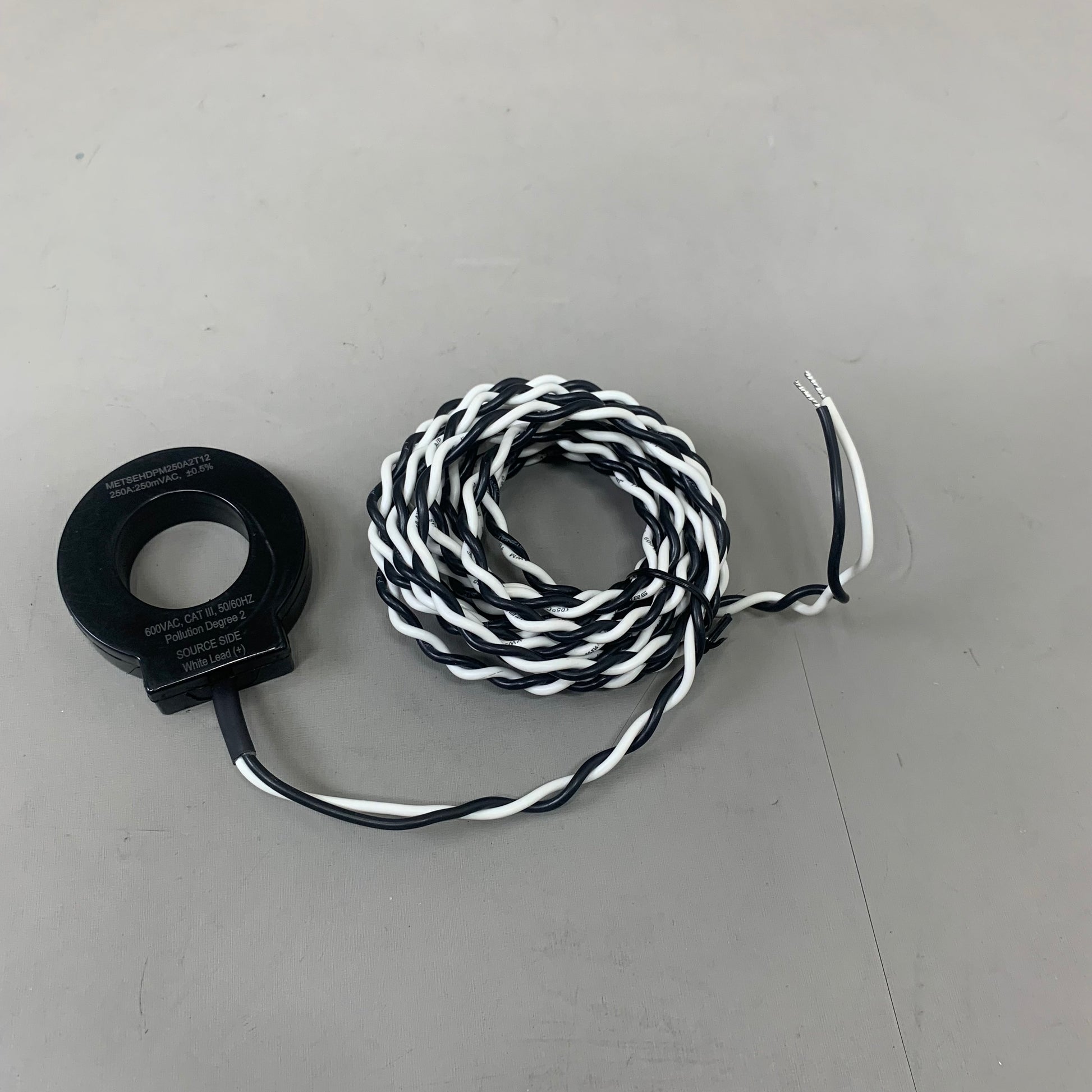

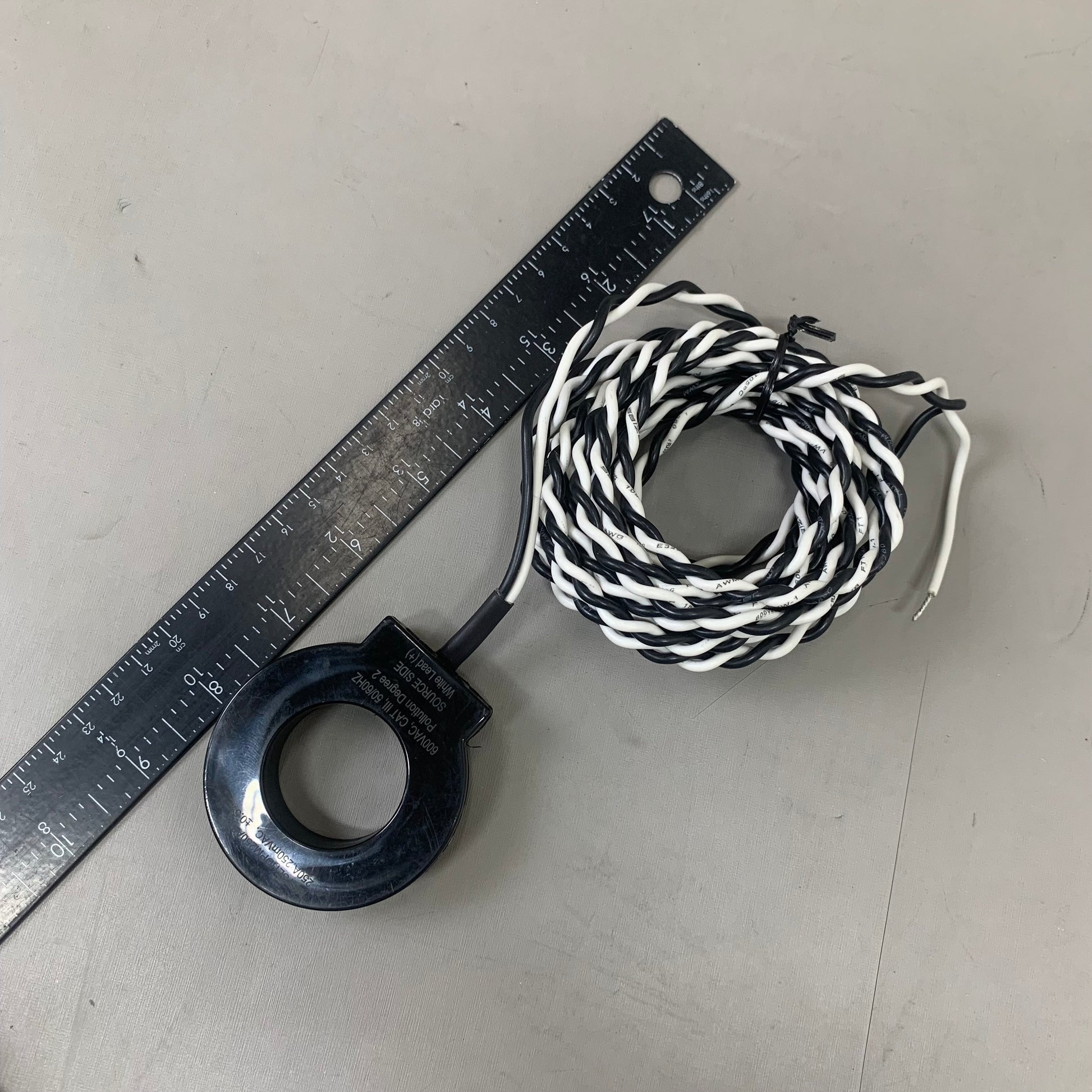

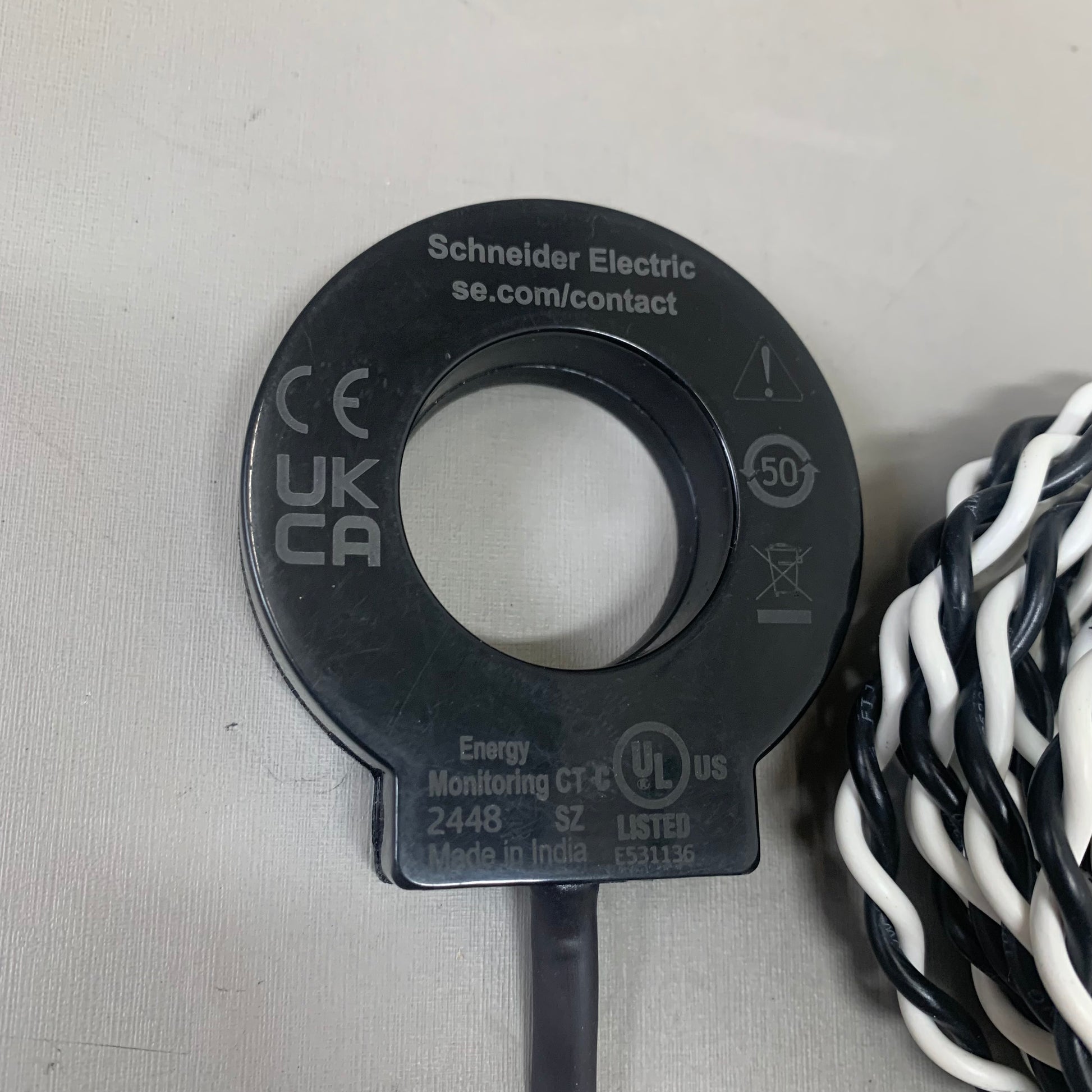

This low-voltage solid core current transformer is part of PowerLogic HDPM6000 (High Density Power Meter). It is prefered for new installation were cables aren't fixed on both end yet. The transformer is rated for a 250A circuit and a nominal voltage output of 0.25VAC at rated current. The solid core opening is a diameter of 34mm for cable. The lead consist of black and white twisted pair, 18AWG, length of 12inches. Can be cut to length and equipped with crimp connector if needed. Follow National Electrical Code (NEC) requirement for UL2808, retrofit energy monitoring equipment. The transformer dimensions are 64mm in width, 68.83mm in height, 18mm in depth for a net weight of 0.250kg. This element is certified UL2808 and compliant to CE. Please refer to label for correct current flow orientation. Crimp lug METSEHDPMS24CTCON allow connection to the HDPM6000S CT strip.
| Range | PowerLogic |
|---|---|
| Product or component type | Current transformer |
| Analogue output type | Voltage output |
| Electrical connection | Plug-in: 304.8 mm (AWG 18) 600 V |
| [In] rated current | 250 A |
| Current transformer type | Solid core |
|---|
| ambient air temperature for operation |
|---|
Condition: New
Size: 250A 18 AWG 600 V
Color: Black & White
MPN: METSEHDPM250A2T12
Barcode: 3606486842560
PayWut SKU: CWT433
Bin: 03-12-B
