SOLAR EDGE

SOLAR EDGE

S Series Power Optimizer Rated For

Condition: New

Size: 440W/60V 15 Amp

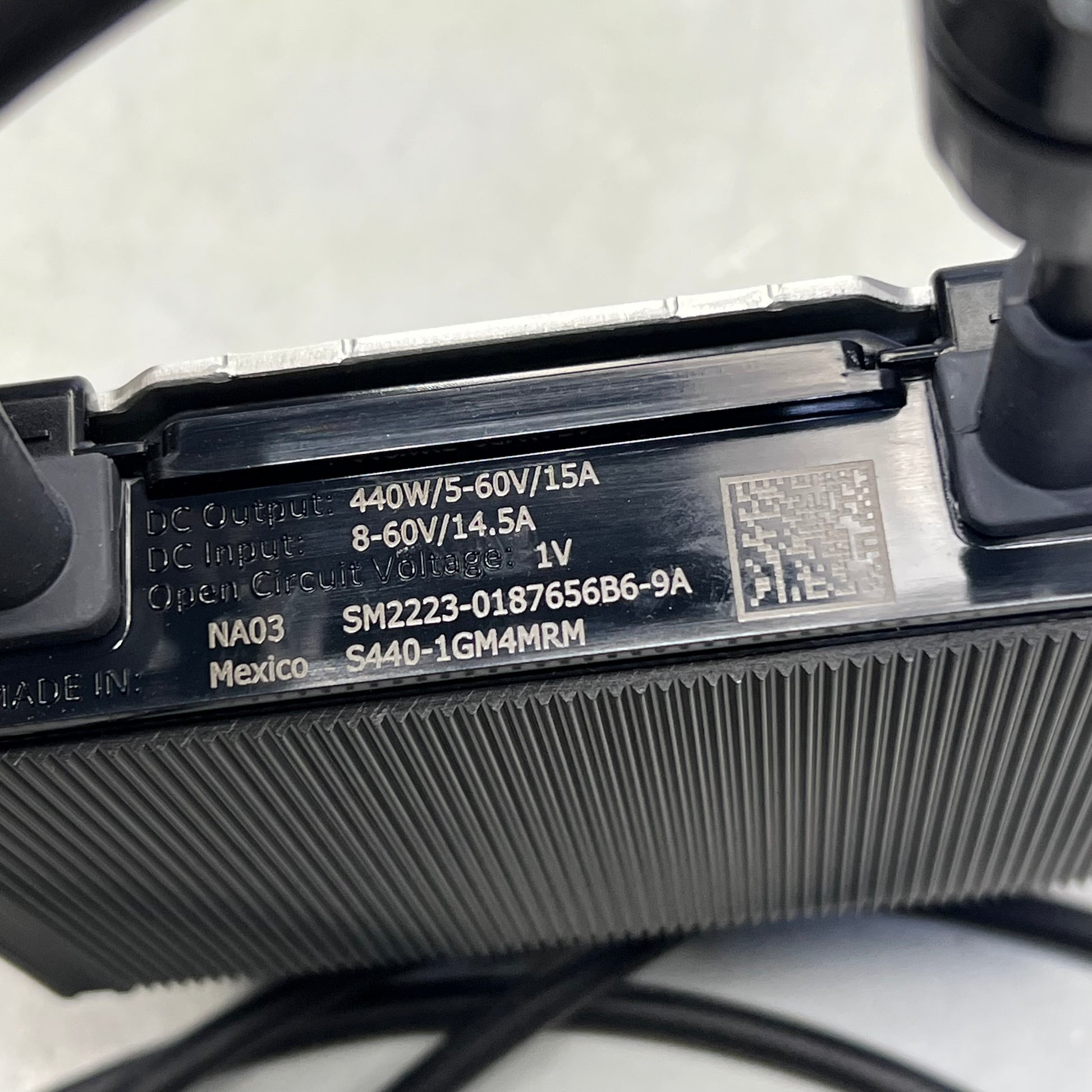

MPN/Model: S440-1GM4MRM

Description:

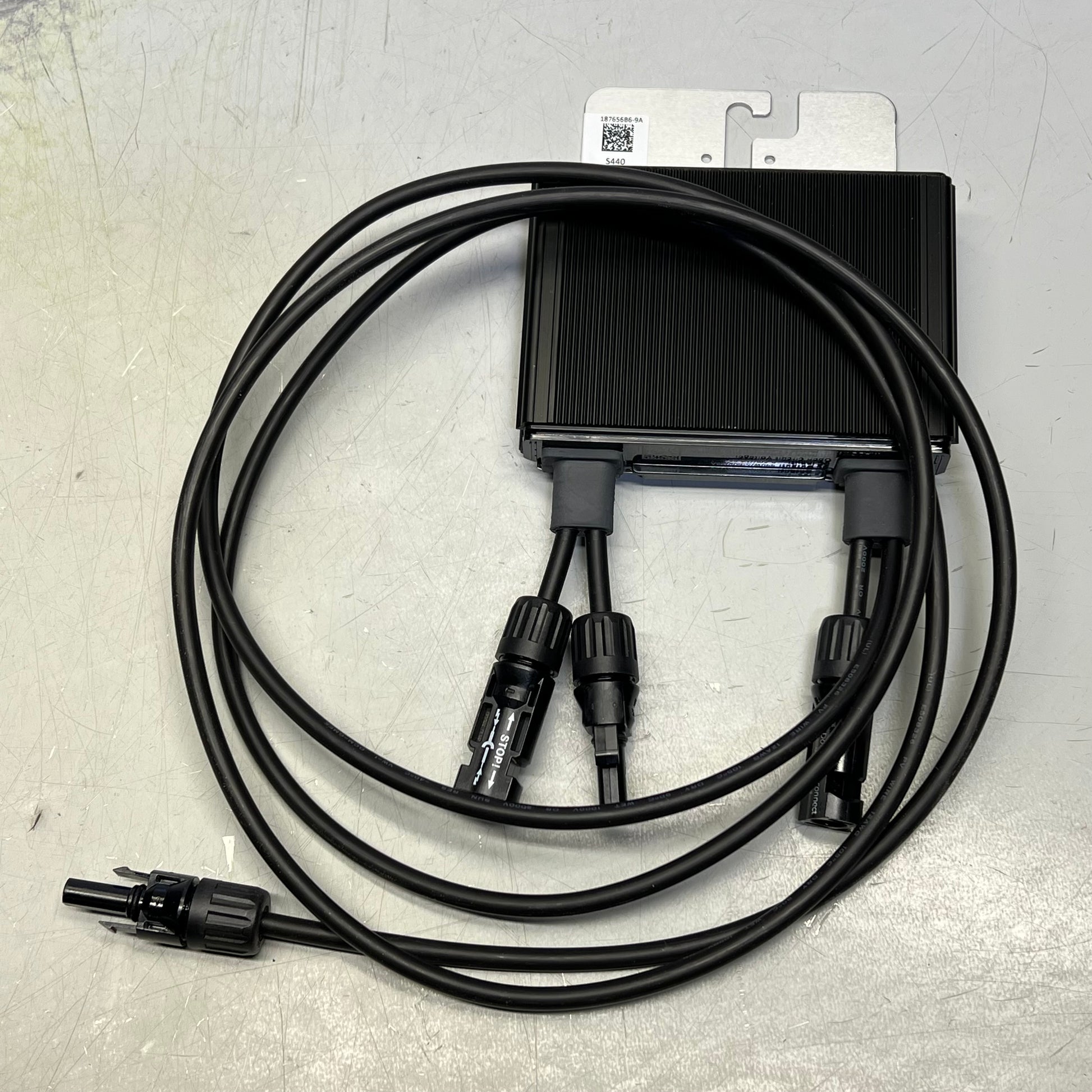

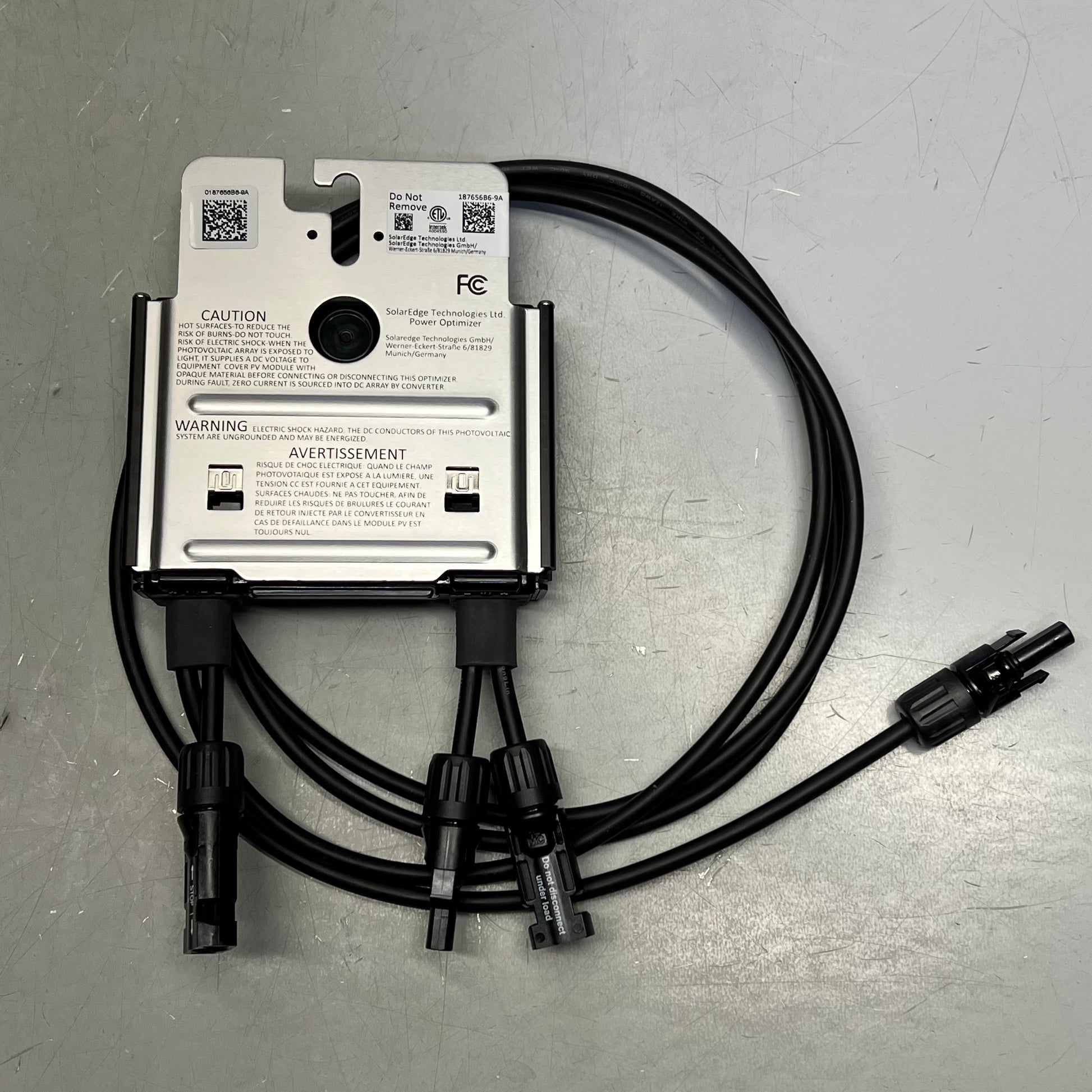

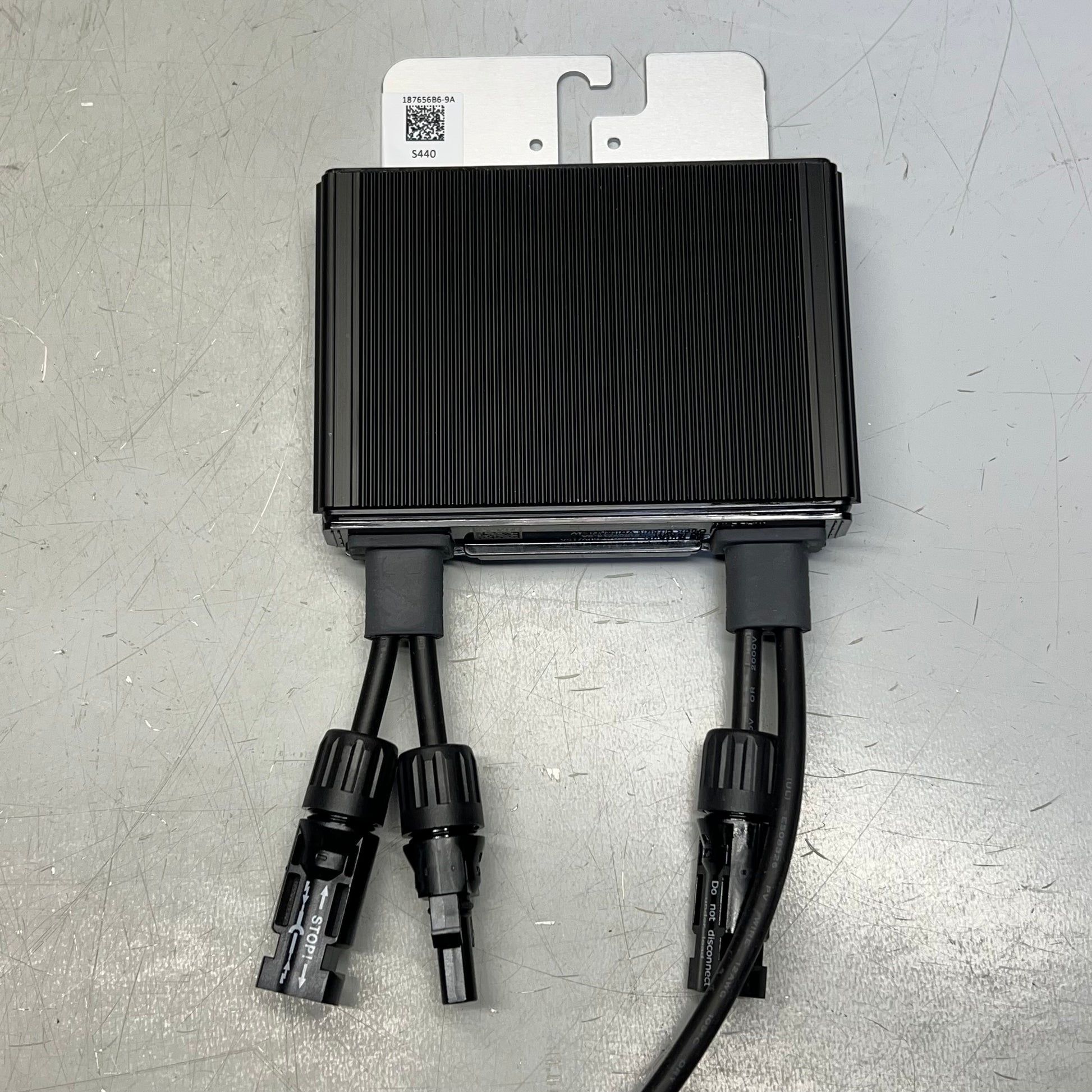

The SolarEdge Power Optimizer is a device that attaches directly to your solar module and uses MPPT technology to optimize the DC power before sending it to the inverter. The Power Optimizer is very similar to a microinverter. However, the Power Optimizers do not actually invert the DC power to AC power. The optimizers allow you to see system performance and diagnostics at the module level, similar to a microinverter, yet they last much longer due to the type of electronics used in the device. Microinverters have a much shorter lifespan vs a power optimizer. The SolarEdge optimizers come with a 25 year warranty, which means it's not too likely that you will ever have to service any of the devices once they're installed. Unlike a microinverter system, the Power Optimizers feed DC energy into a specifically designed inverter that maximizes the efficiency and output of the solar array.

Specifications:

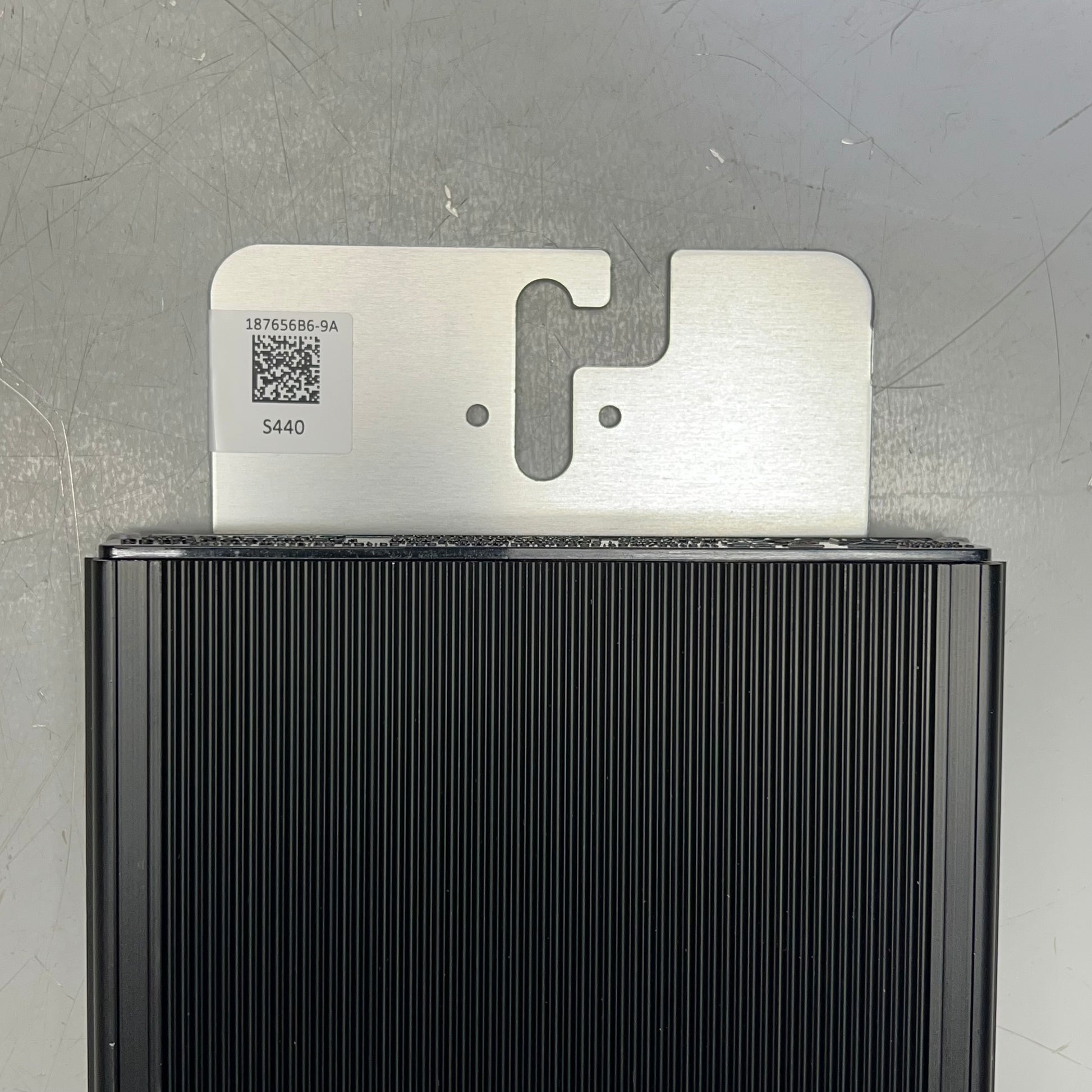

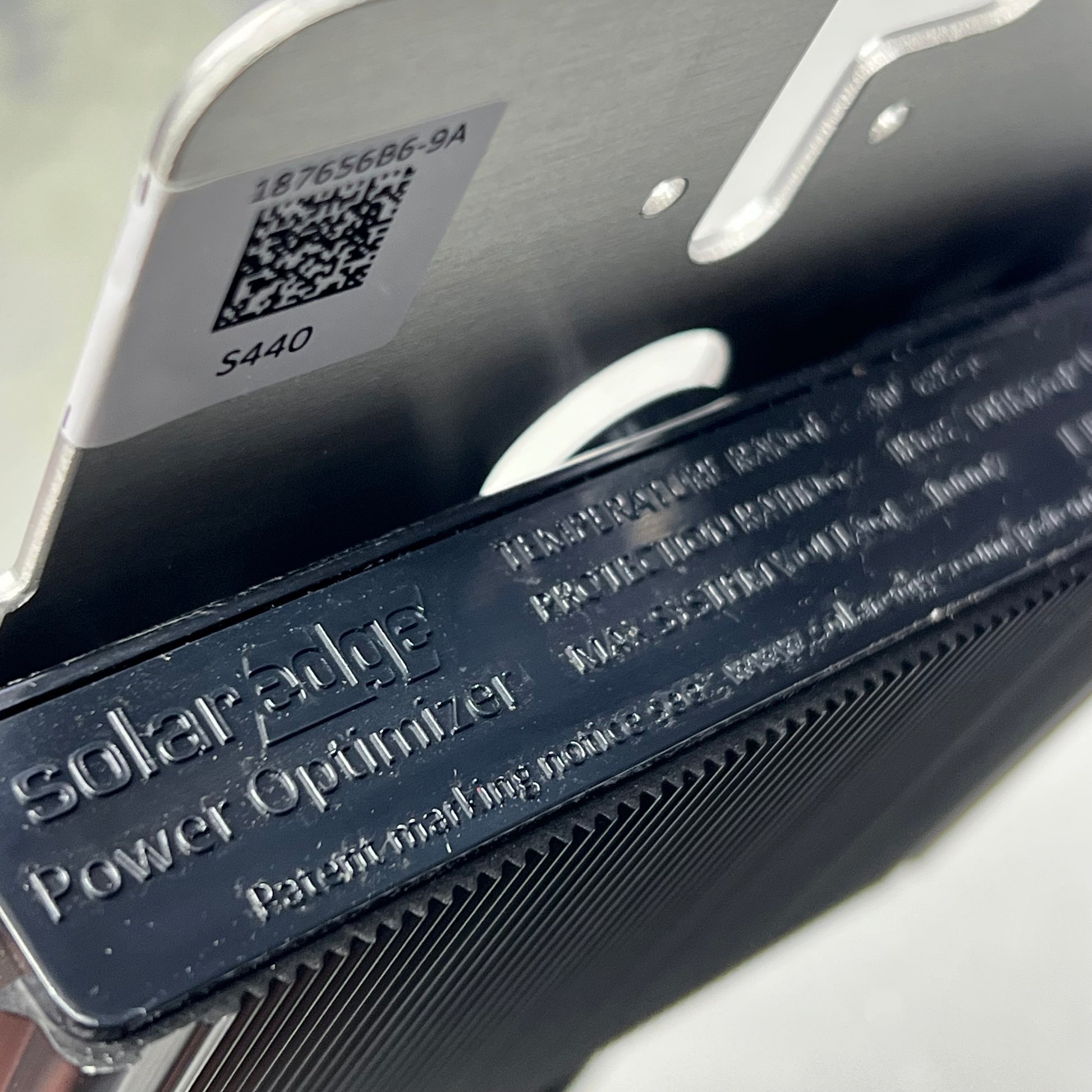

• Model number: S440

• MPPT operating range: 8 - 60 VDC

• Max short circuit current: 14.5 Amps Isc

• Max efficiency: 99.5%

• Max output current: 15 Amps

• Max output voltage: 60 Volts

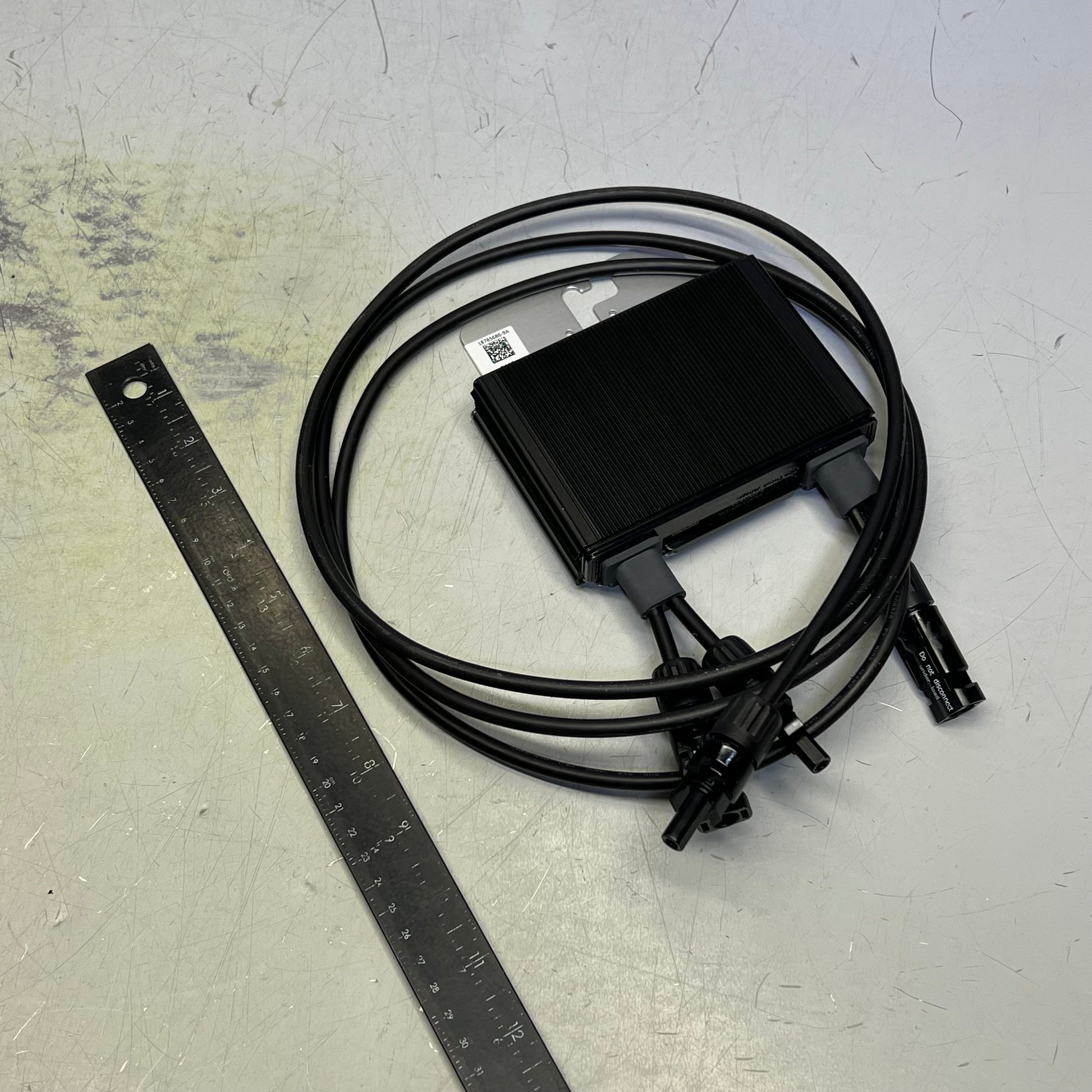

• Dimensions: 5.07" x 6.10" x 1.18"

• Weight: 1.5 lb.

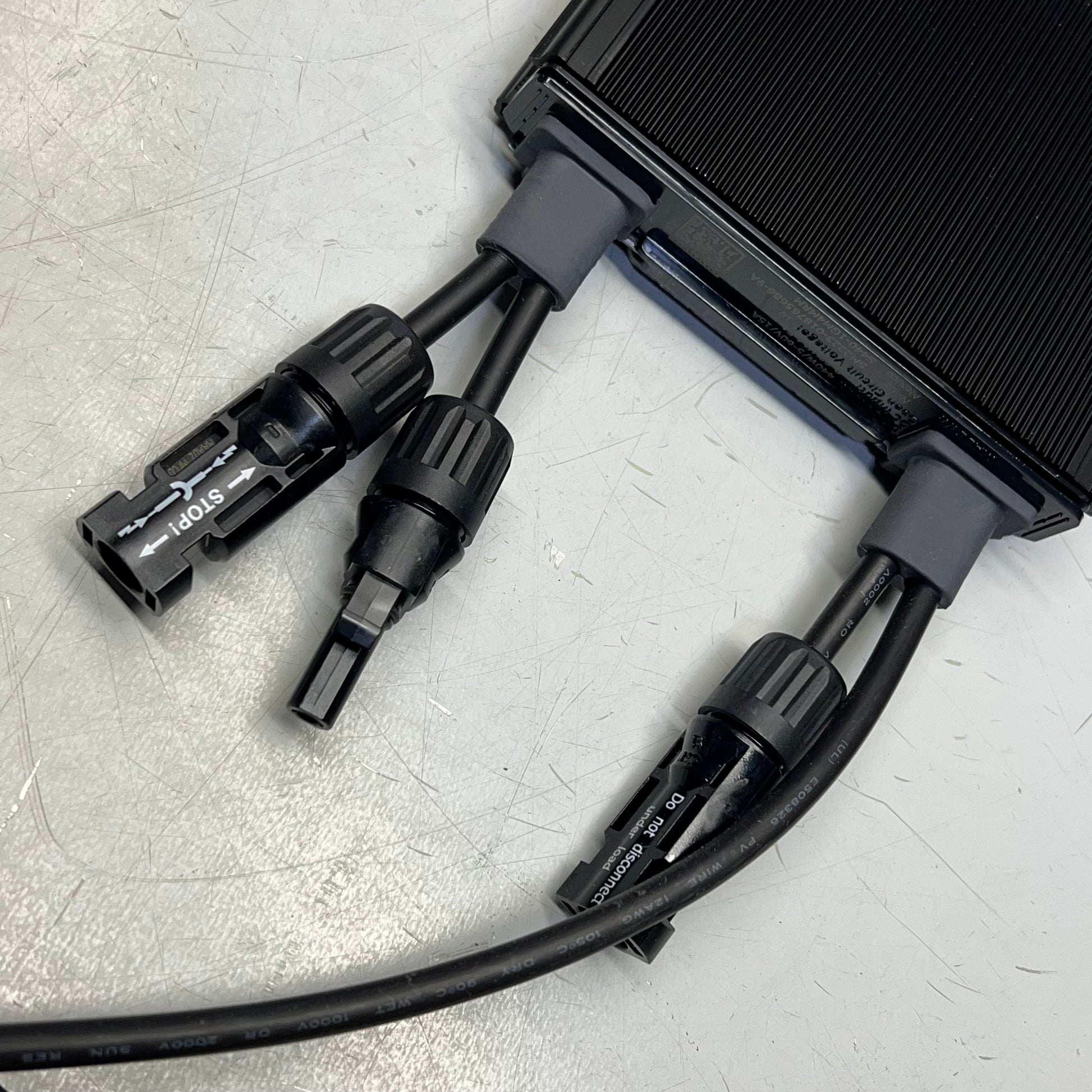

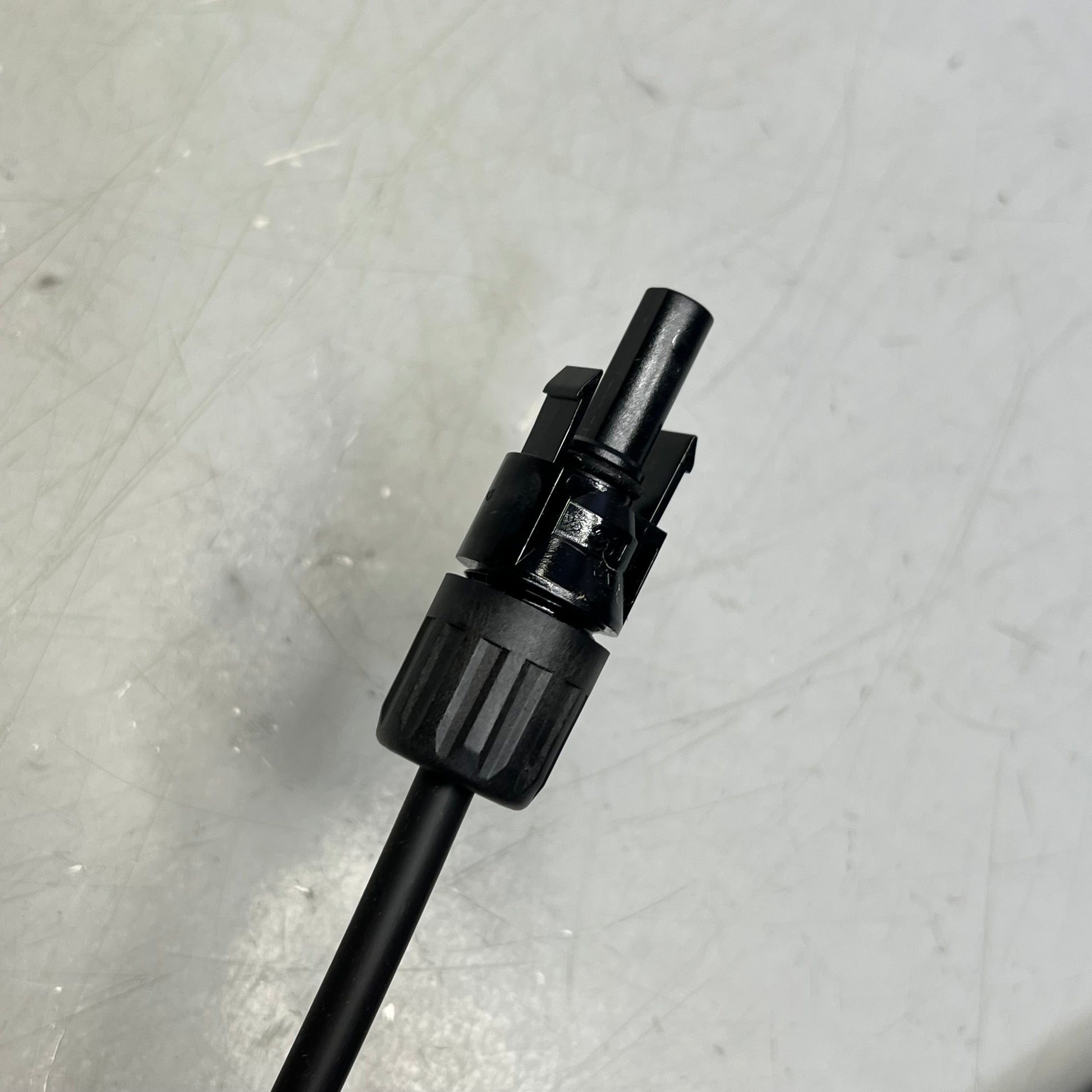

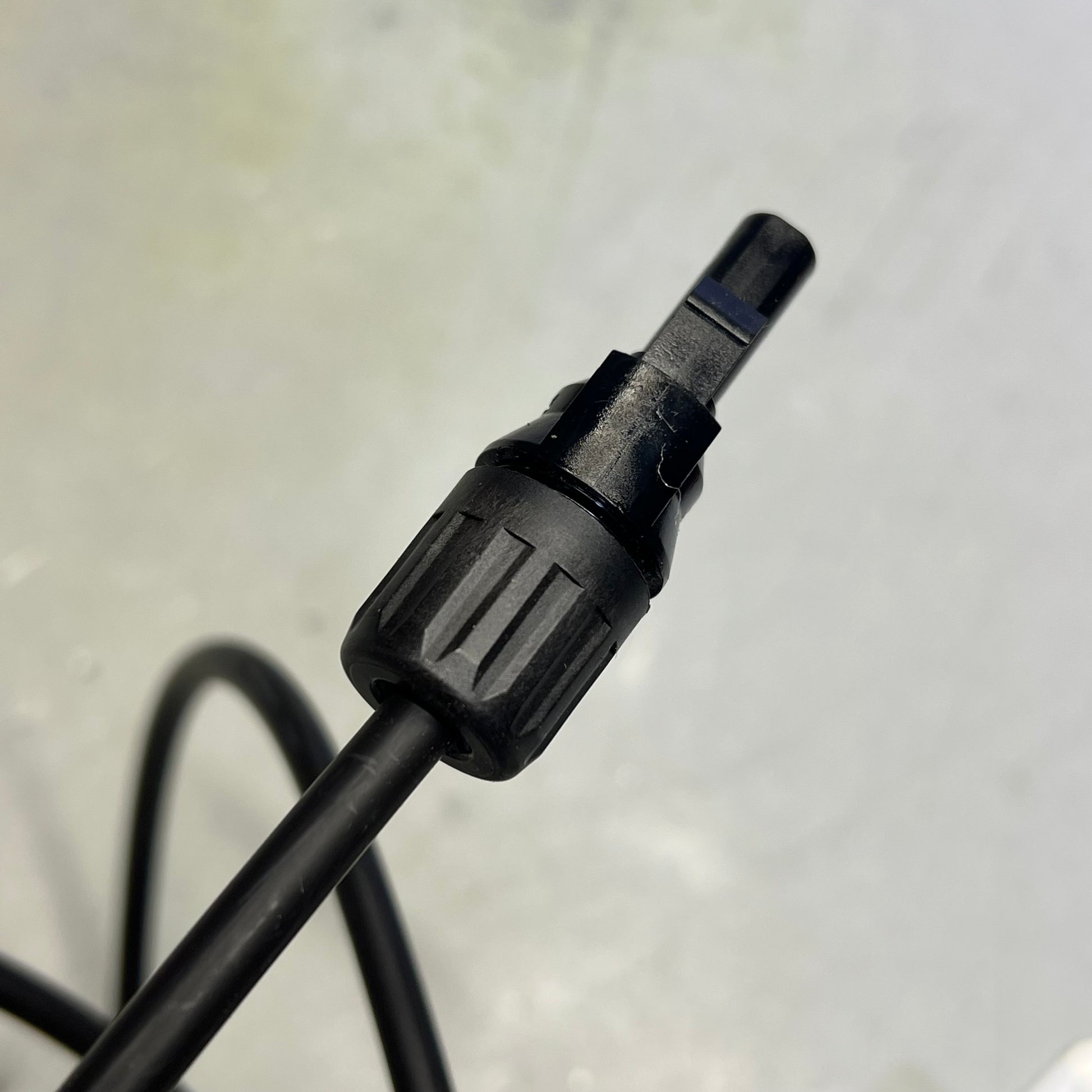

• Connector type: MC4 compatible

Condition: New

Size: 440W/60V 15 Amp

MPN: S440-1GM4MRM

PayWut SKU: CW00940

Bin: 04-10-C
