Product Scope

200 to 230 V at 0.5 to 20 HP

380 to 460 V at 0.5 to 20 HP

525 to 600 V at 2 to 20 HP

Single Phase

200 to 230 V at 0.25 to 3 HP

Highlights

•    110% Continuous Overload Rating, 150% for 60 Seconds

•    Three Programmable Discrete Outputs: One Form-A,  One Form-C, & One Open Collector

•    Six Programmable Discrete Inputs

•    One Programmable Analog Outputs: 4 to 20 mA or 0 to 10 VDC

•    Three Programmable Analog Inputs: One 4 to 20 mA Input, One 0 to 10 VDC Input, & One ±10 VDC Input

•    Ten Year Life-Long Design

•    Compact Design

•    Capable of Working with Permanent Magnet (PM) Motors

•    Safe Torque Off (STO) Compliant

•    Auto-Restart Operation/Catch a Spinning Motor

Standard Features

•    IP20 Enclosure; Wall-Mount

•    Past Trip Monitoring: Stores the Last Eight Faults in Succession, Along with At-Trip Operation Data

•    Rotary Encoder

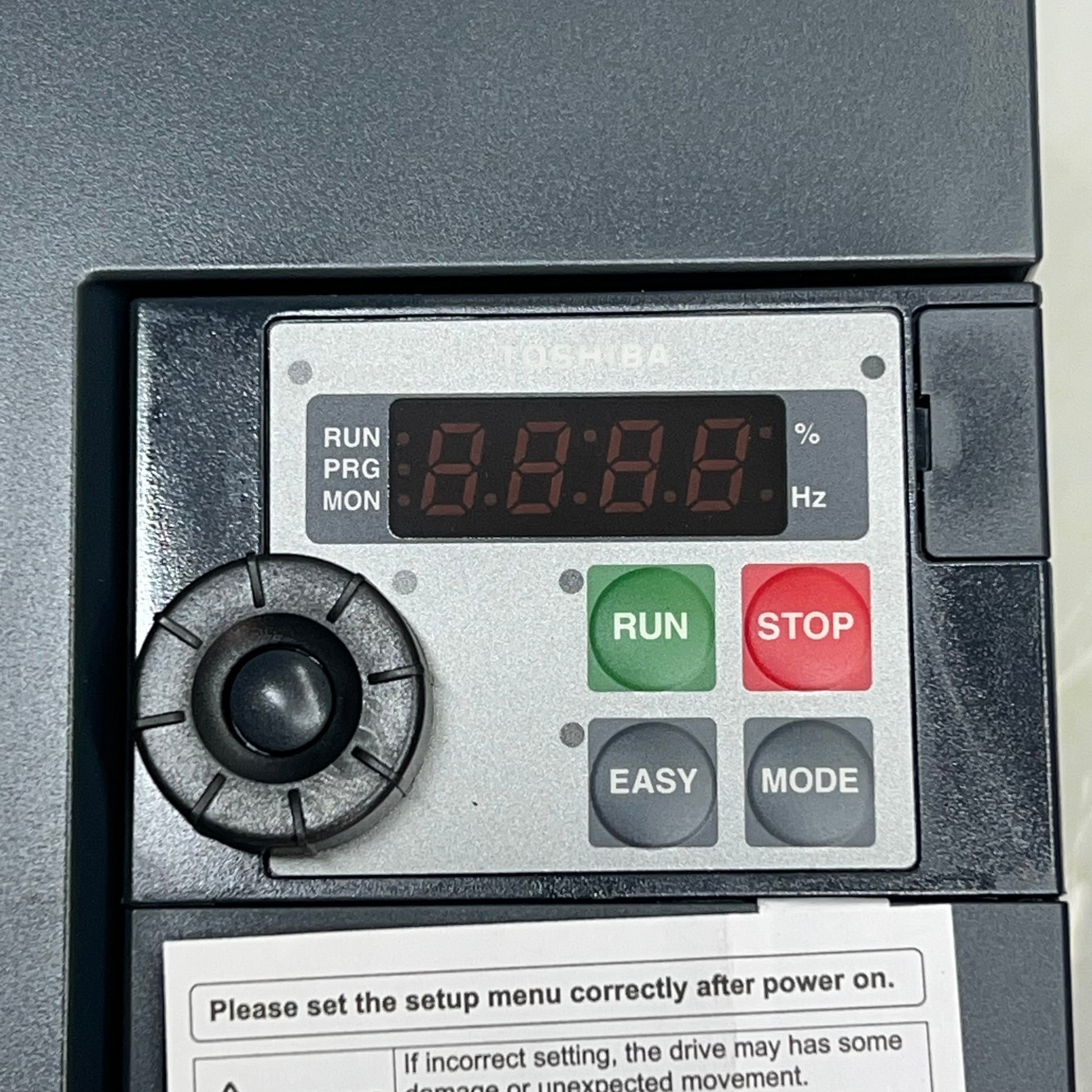

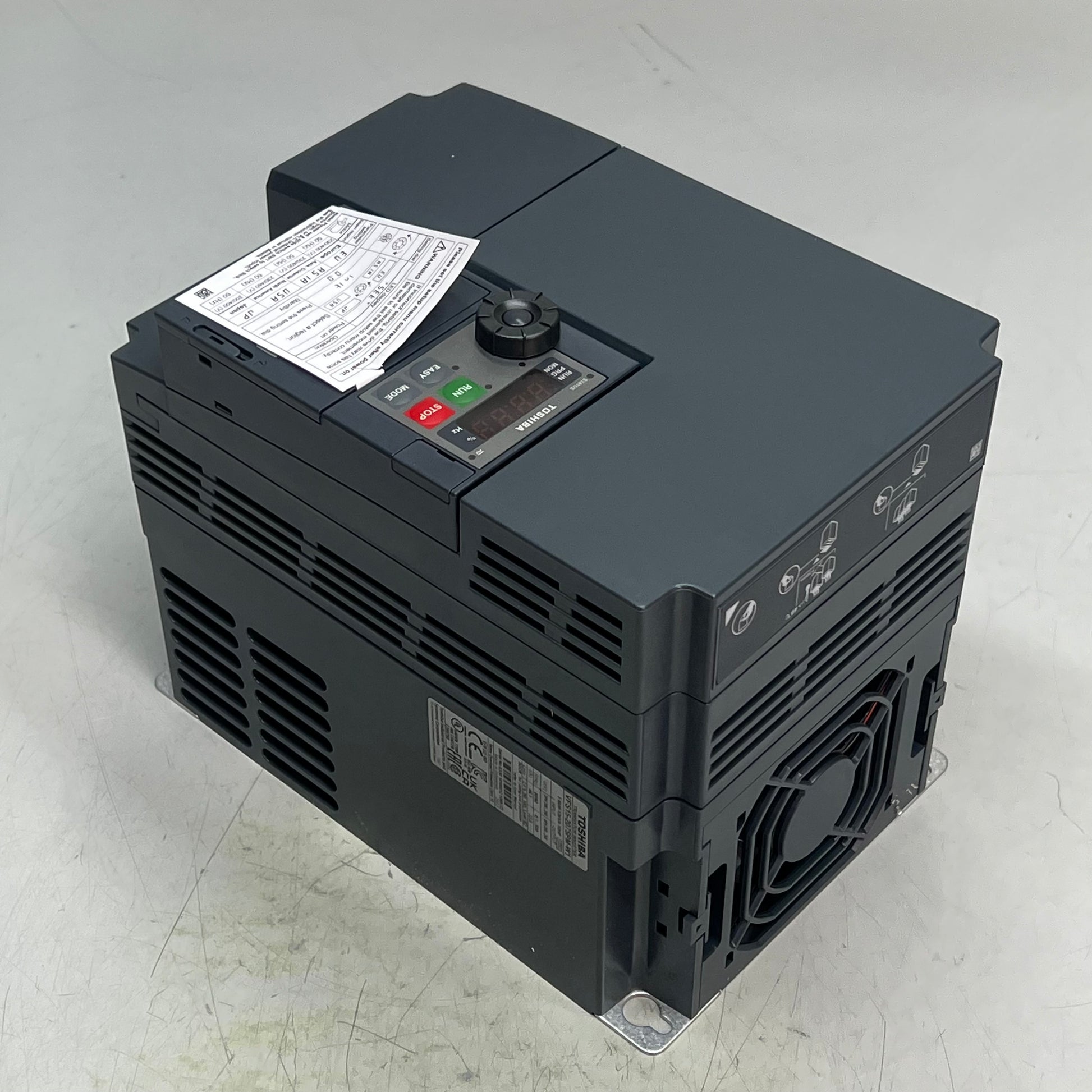

•    EOI: Four-Digit/Seven-Segment LED Display

•    Ambient Temperature: 14° to 122°F (-10° to 50°C)

•    Humidity: 95% Non-Condensing

•    Altitude: Up to 1000 Meters without Derate

•    Two-Wire RS485 Communication Port

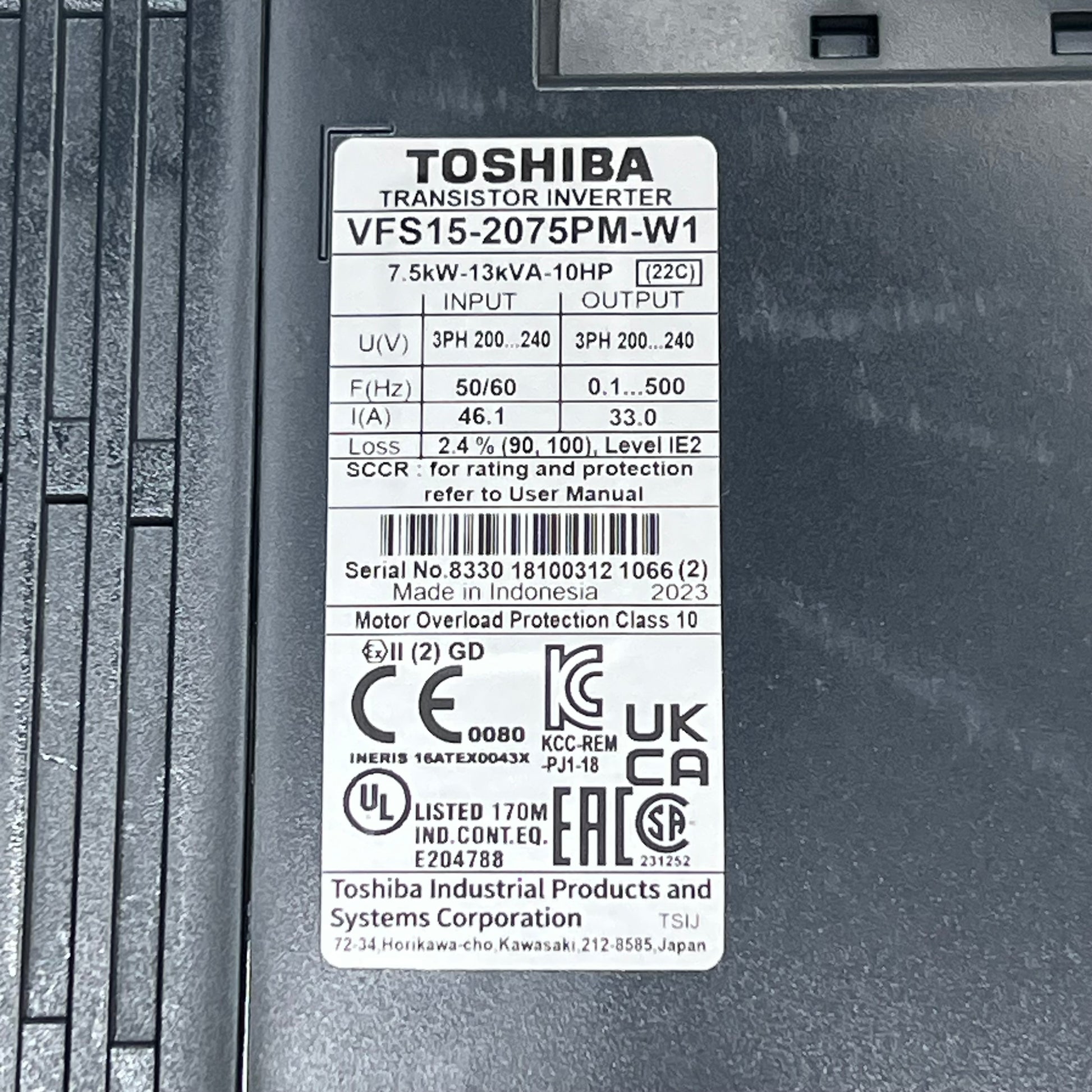

•    Compliances: UL Listed in US & Canada, CSA® & CE®
