ADB

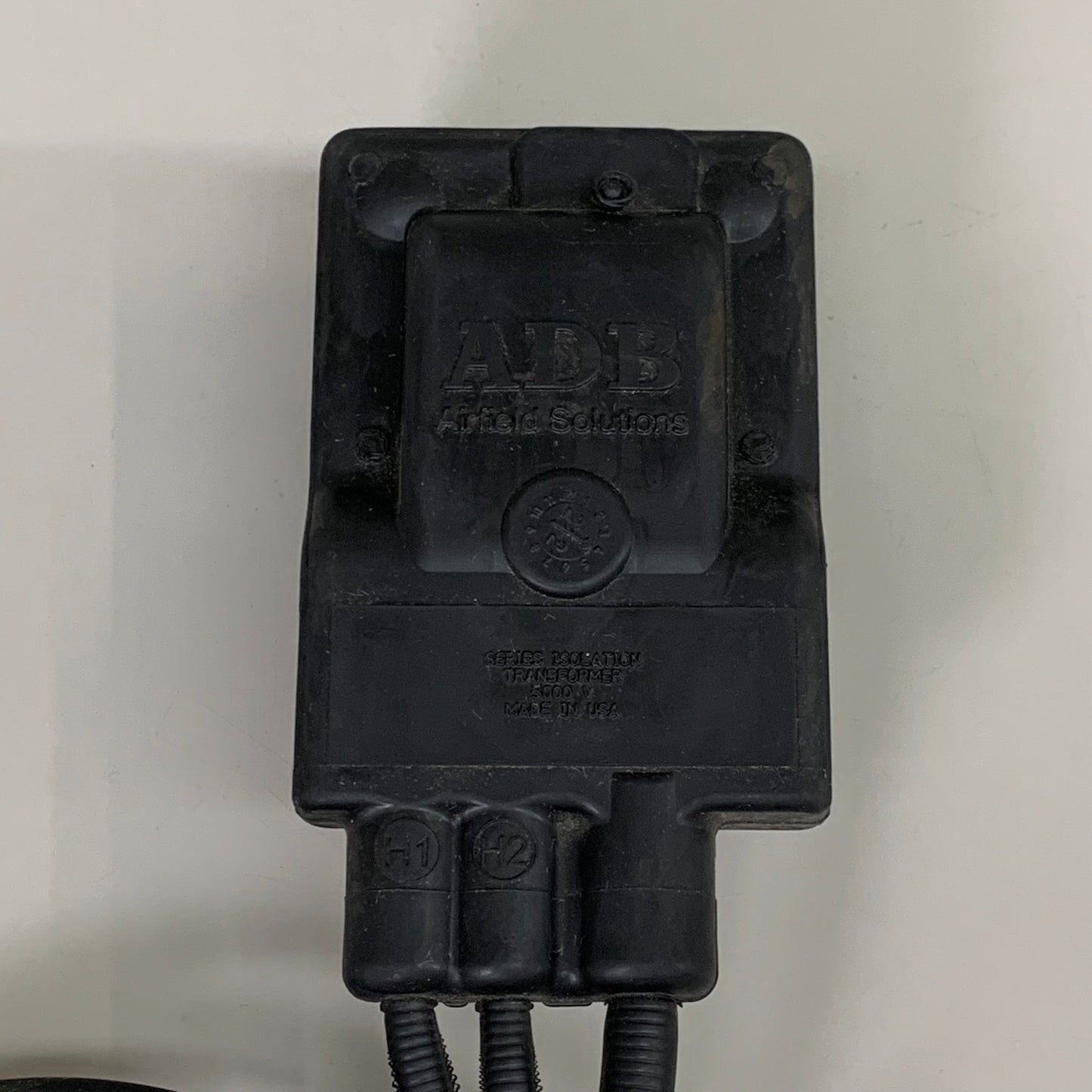

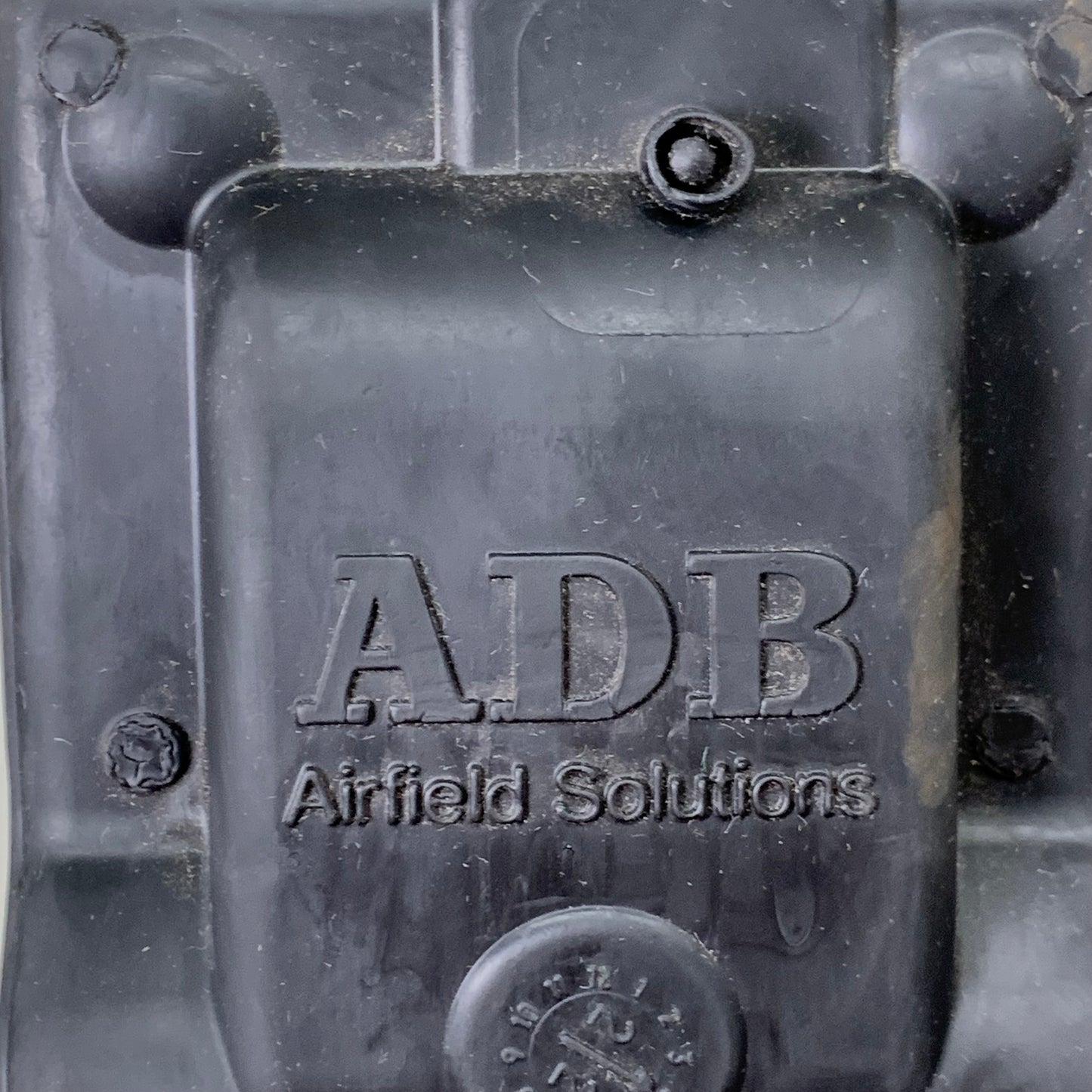

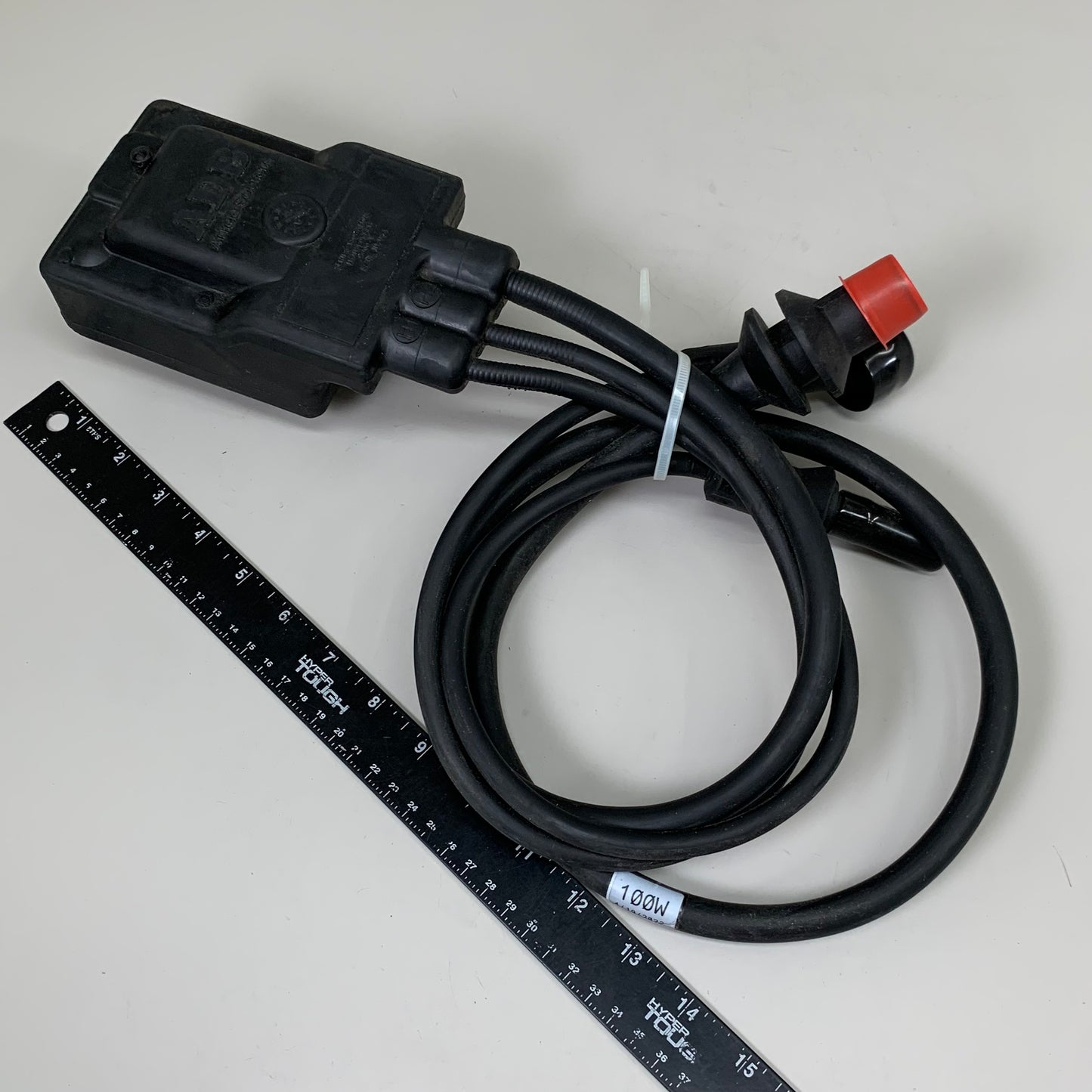

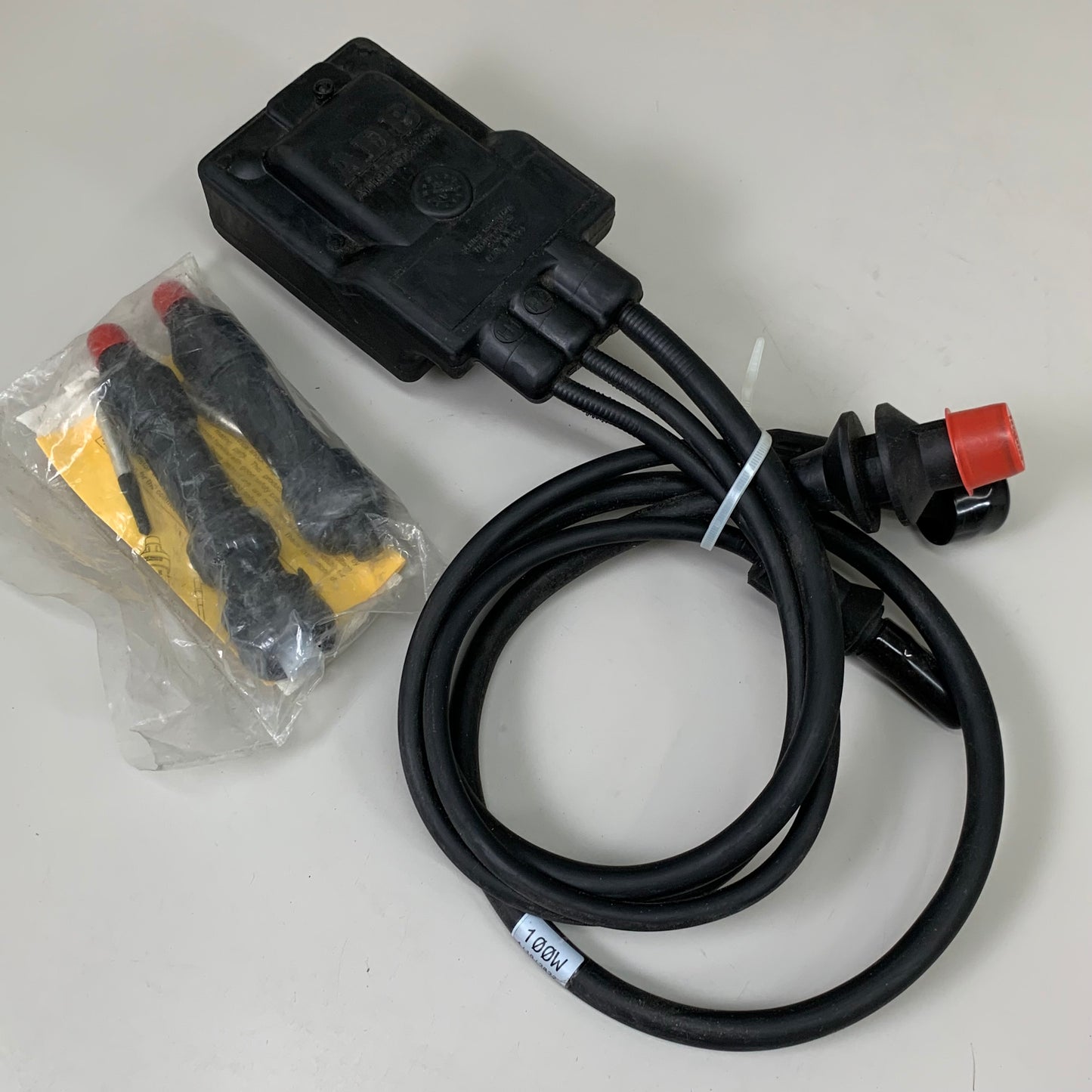

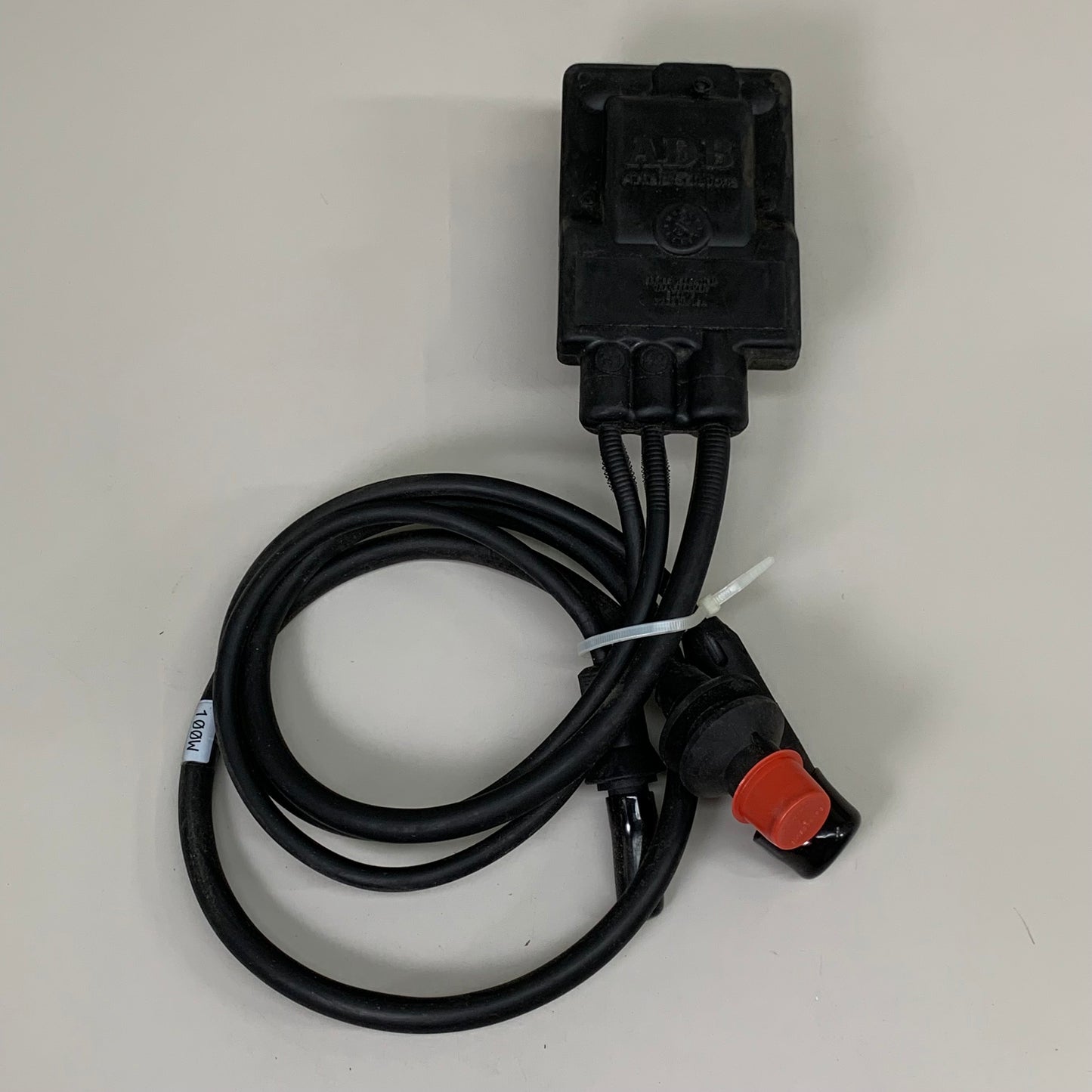

Airfield Solutions Series Isolation Transformer
Condition: Like New

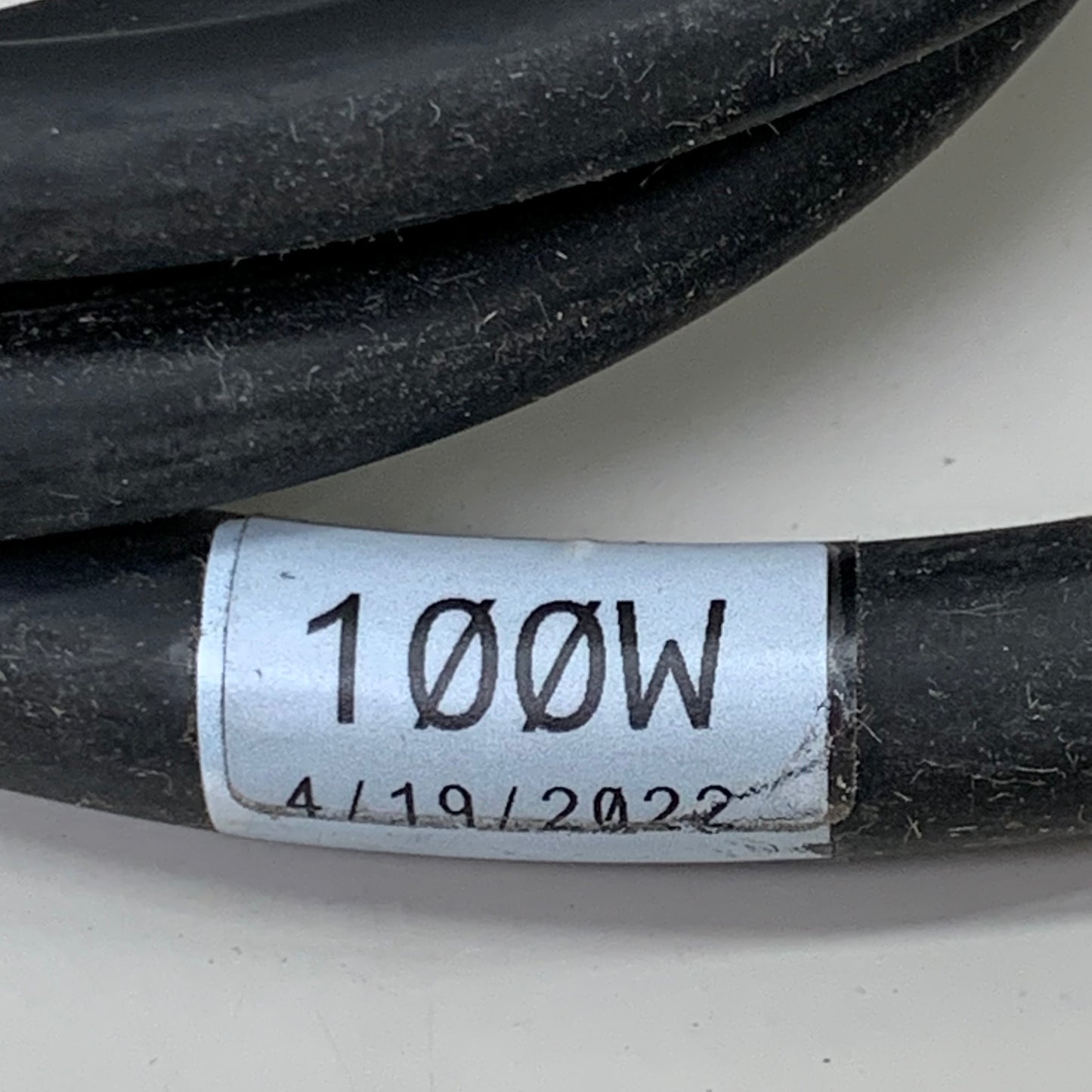

Wattage: 100
Hz: 60
Output Amps: 6.6
Input Amps: 6.6
Color: Black

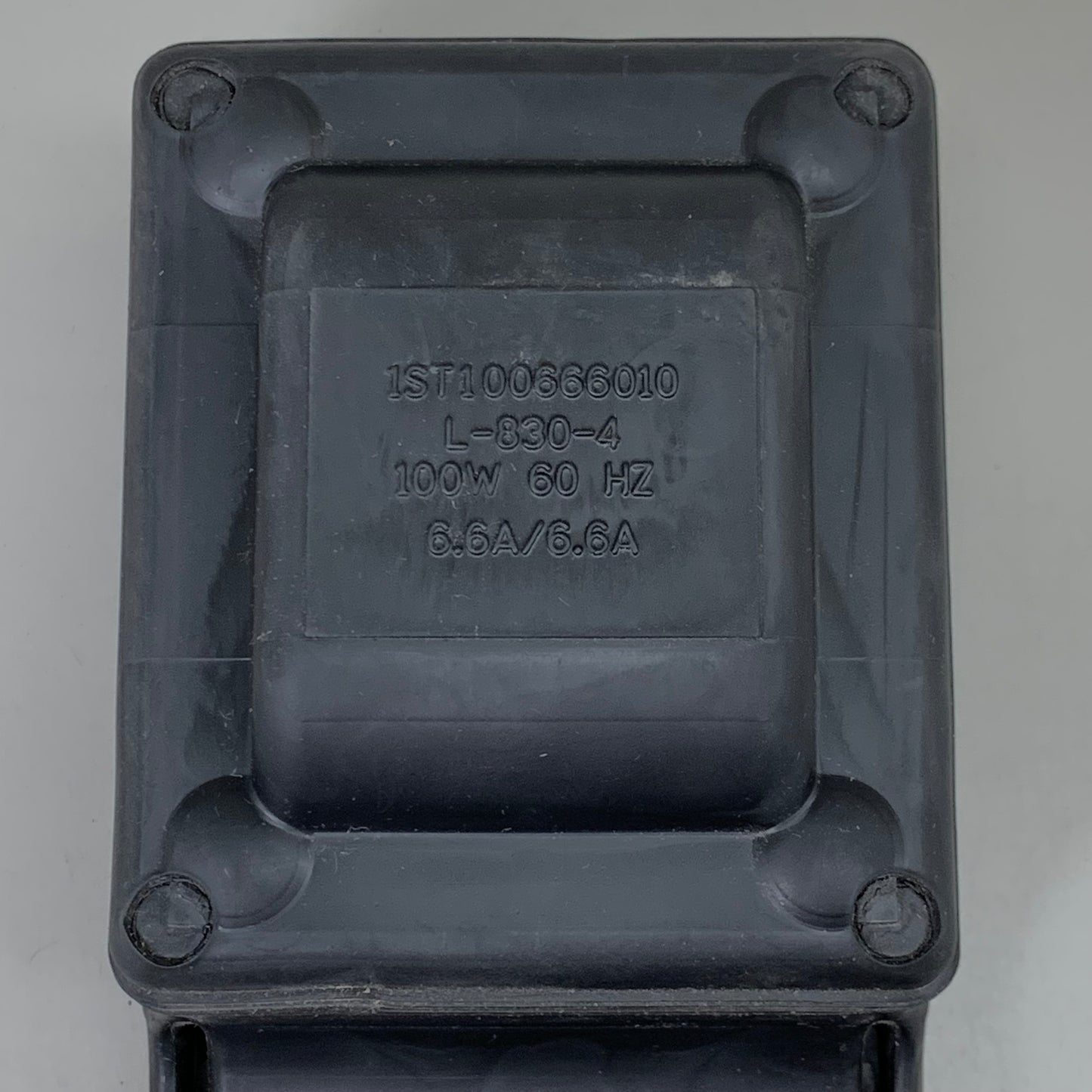

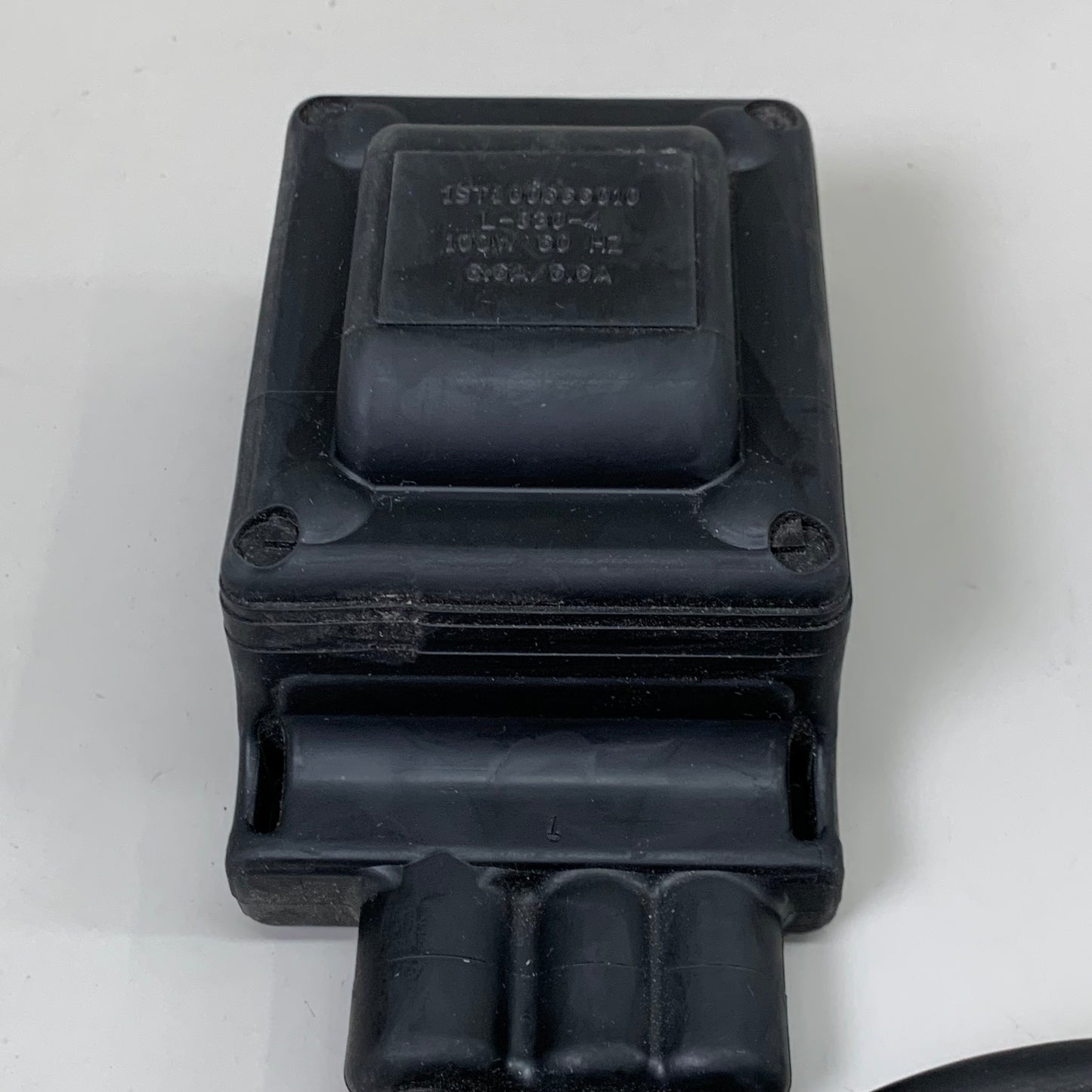

Model: L-830-4 1ST1000666010

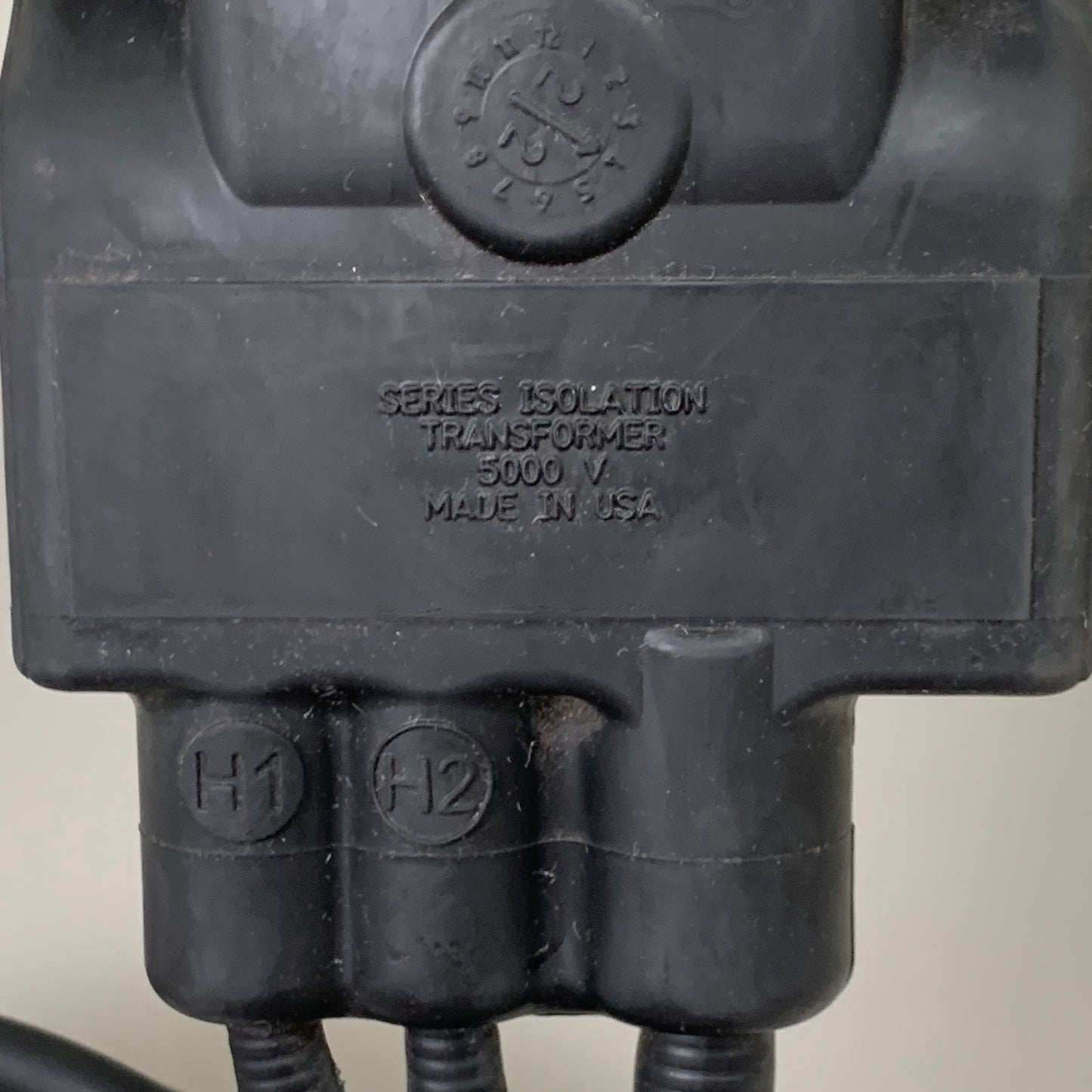

Series isolation transformers are used to isolate high operating voltages for constant current lamps in series circuits.
FEATURES
These transformers are made of flat laminations in an ETI formation for 6.6A and 20A applications.
Encapsulated in synthetic rubber for durability and dielectric strength. Waterproof assembly suitable for above ground installation or direct burial.

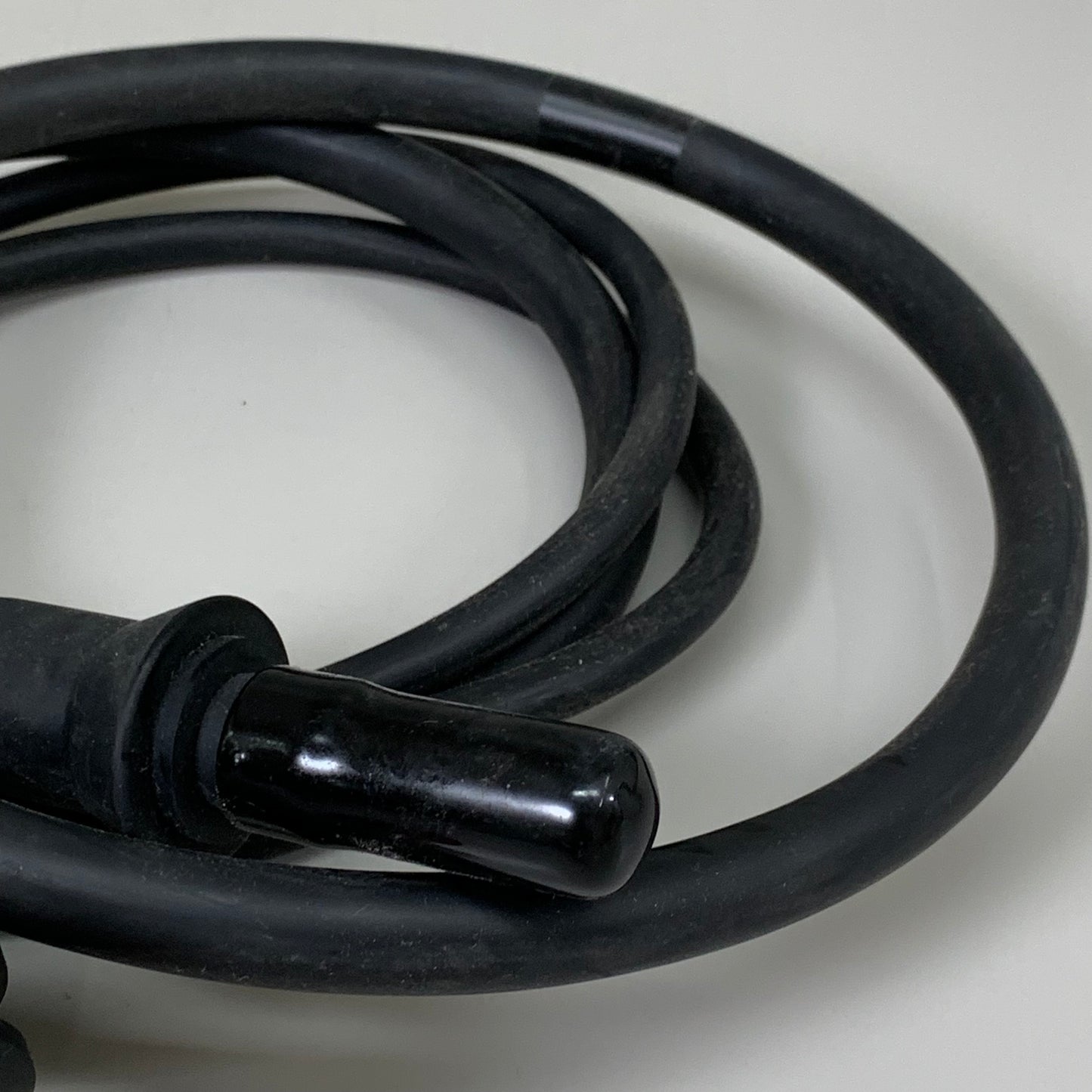

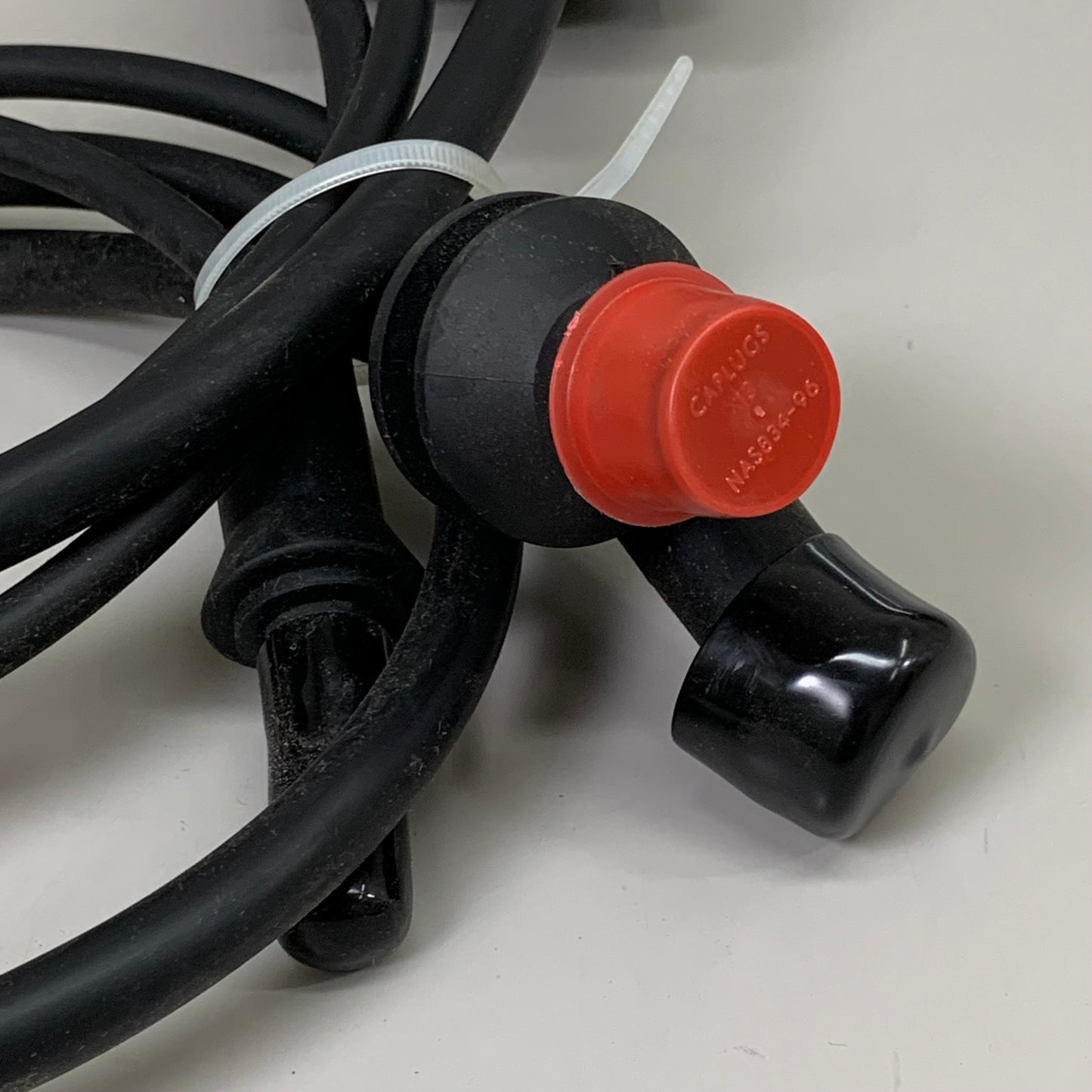

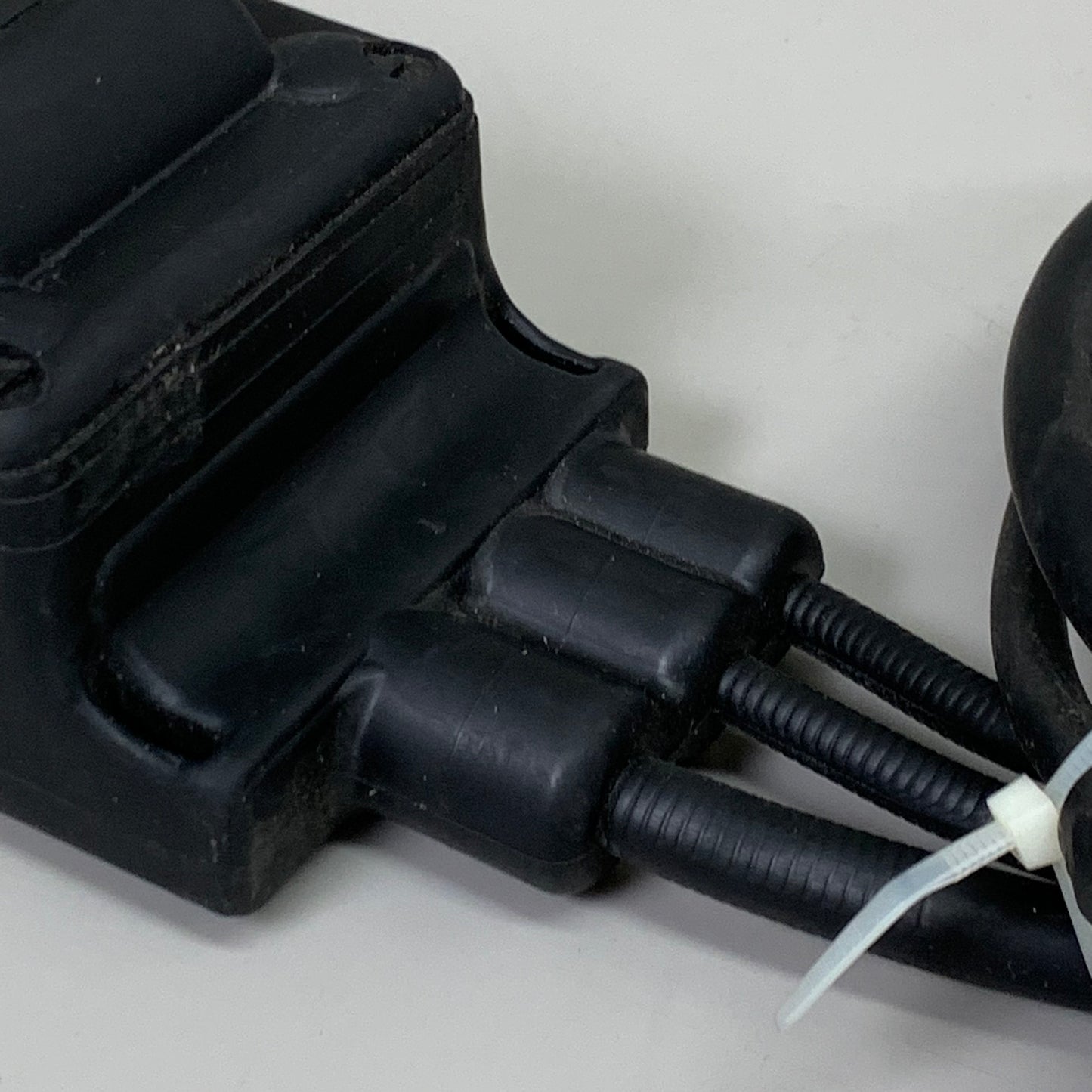

Two Primary Leads: terminated with molded L-823 Style 2 (male) and Style 9 (female) connectors. Standard length 24", 8/1 cable. Rated to 25A and 5,000V.
One Secondary Lead: terminated with a molded L-823 Style 8 (female) connector, “ball-type”. Optional Style 7 (female) connector, “straight design” for use with signs and extension cords. Standard length 48", 12/2 600V cable. Rated to 20A and 600V.
Optional ground (earthing) lead (1). 36" long #12 AWG 600V ground lead, terminated in a ring terminal. To order add the letter "G" to the model number.
All transformers undergo 100% quality testing before they are shipped: visual inspection, HIPOT after heating and 12 hour soaking (15,000V primary, 5,000V secondary), and ratio testing.
